evaporative air cooler

Specifications

evaporative air cooler
1) over 15 years experience in building cold room
2) prefabricated cold storage expert

Any inquiry of   evaporative air cooler will be answered as soon as possible



Material: aluminium alloy

Model:  3 fins



             2 fins

             tubes

Option: water chanel

              defrost heaters

Diameter: D20mm, D25mm, D32mm

Resistance of pressure: 25 kg

Wall thickness: 2mm



Aluminium Tube Evaporator Characteristic

1.  light weight and easy installation

2.  good thermal effect and reduce energy consumption

3.  aluminum alloy tube can be installed on the top of the refrigerator

     this will improve the heat transfer capacity of per unit area, more energy efficient

4. improve the utilization rate of refrigeration, reducing the amount of refrigerant system

5.  Aluminium alloy pipe form flake shape, formed many parallel channels, can save a lot

    of electricity



Cold Storage Volum and Aluminium SQM

cold storage volum	aluminium tube evaprator SQM
<500m3	below 3m, 2-2.5 times of bottom area
50-100m3	2 times of bottom area
100-300m3	1.8times of bottom rea
300-500m3	0.5m2 per cbm
500-1000m3	0.45m2 per cbm
1500-2000m3	0.4m2 per cbm
>2000m3	0.18-0.26m2 per cbm





Aluminium Tube Evaporator Size

Size	sqm per meter
D25 x 130 x two fins	0.29
D25 x 150 x two fins	0.33
D32 x 150 x two fins	0.34
D32 x three fins	0.495

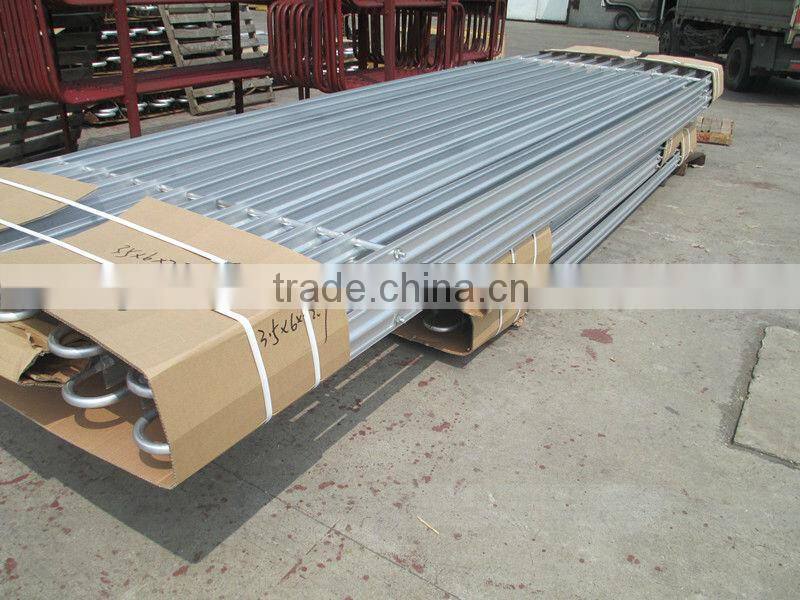

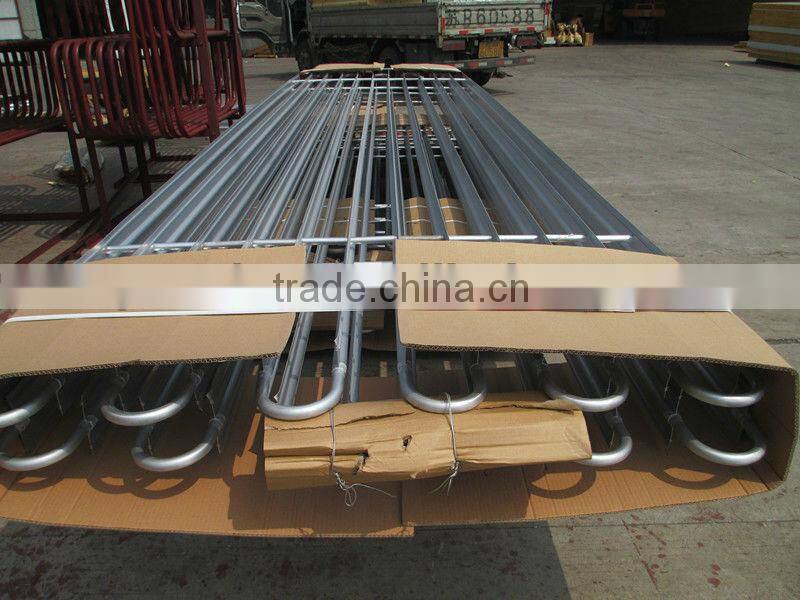

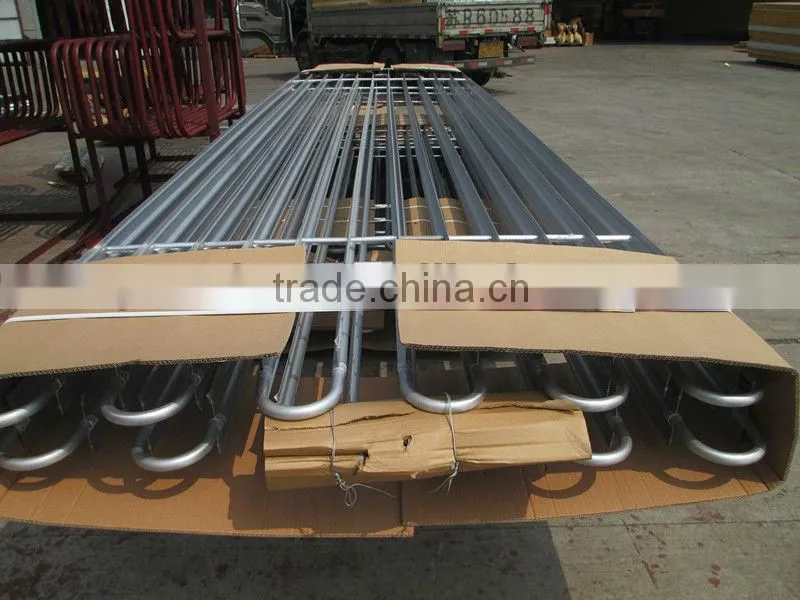

Goods Pictures



evaprator packages 1.

evaprator packages 2.



Dear friend, if you have any question about evaprator or other cold room accessories, please feel free to let us

know, we'd like to give you a quick reply to answer you.



Yours faithfully,



Barton

Sales Manager

SKYPE: barton2015
