YTZ5255GJB33E concrete mixer truck
Yutong concrete mixer truck introduces advanced technology from abroad and matches original imported hydraulic system manufactured by world famous company to ensure excellent performance and reliable quality. Currently we have already developed a series of special purpose vehicle for Sale with different specifications by matching chassis produced by well-known manufacturers in domestic market such as Sinotruk, Dongfeng Automobile.
Technical Parameters
|
Model |
ZH033-14 |
Declared external dimension (mm) |
9400×2500×3990 |
Actual external dimension (mm) |
8930×2500×3910 |
Chassis model |
ZZ1257N3847C |
Curb weight of complete crane (kg) |
Actual: 14400 (Declared: 15050) |
Rated load (Kg) |
9820 |
Maximum vehicle speed (km/h) |
90/102 |
Wheelbase (mm) |
3625+1350 |
Front suspension/rear suspension (mm) |
1500/2725 |
|
Approach angle/departure angle(°) |
16/19 |
Wheel track of front wheel (mm) |
2022,2041 |
Wheel track of rear wheel (mm) |
1830/1830 |
Tyre |
12.00-20 Common tyre |
|
Agitating volume (cubic meter) |
8 |
Feed rate (cubic meter/minute) |
≥2.7 |
Discharge rate (cubic meter/minute) |
≥0.65 |
Discharging residual ratio (%) |
≤0.5 |
Rotating speed of mixing drum (r/min) |
0—14 |

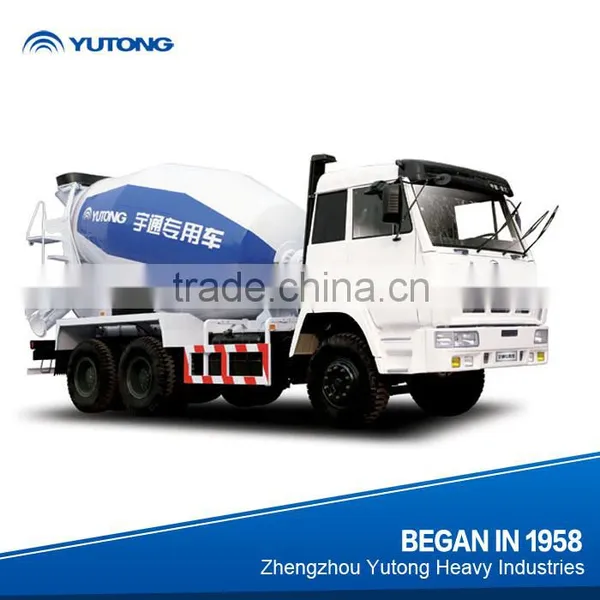

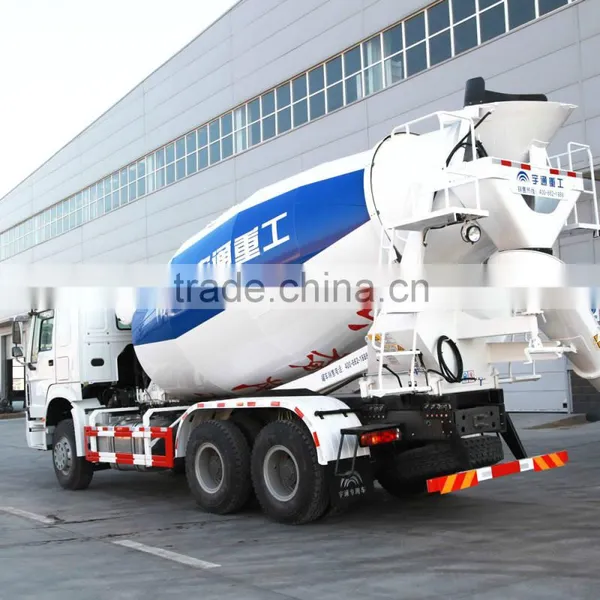

Picture of YTZ5255GJB33E concrete mixer truck
1,Reliable quality and high operational stability
Tank body is assembled and connected by using specialized fixtures to ensure the correct concentricity of the tank body and stable operation of mixing tank.
2,High strength, durable, and long service life
The tank body and main structure are made of low alloy steel with high strength and great wear resistance.
It has dual sealing head structure. Reinforcing plates are added outside the heads and stiffeners are added inside the heads, greatly increasing tank body rigidity.
3,High working efficiency
Double helical blades with optimal design are used in the tank body to realize unloading at a low rotation speed and a high displacement.
Front cone of the tank body is fitted with 2 forced stirring blades to enhance mixing function and effectively prevent dilution.
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Welcome to consult us any question you have !
