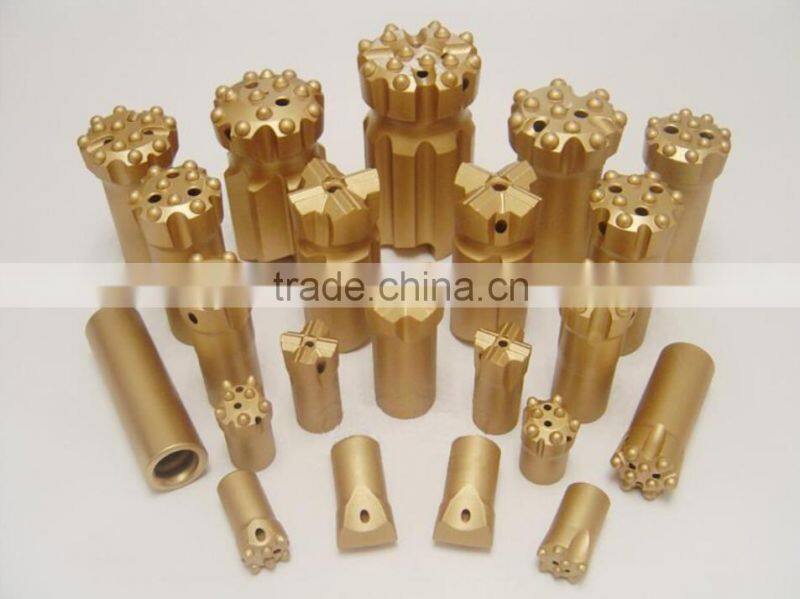

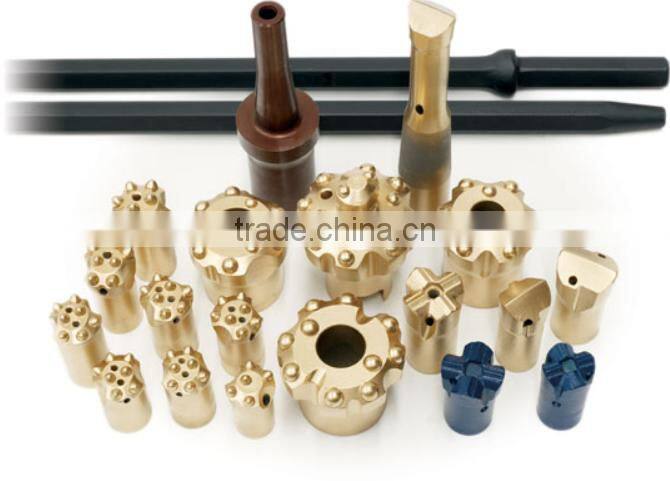

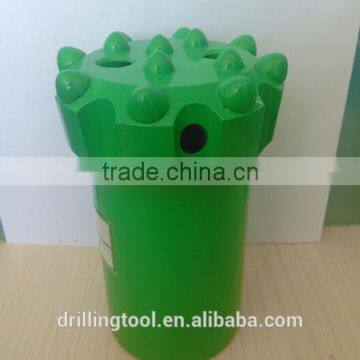

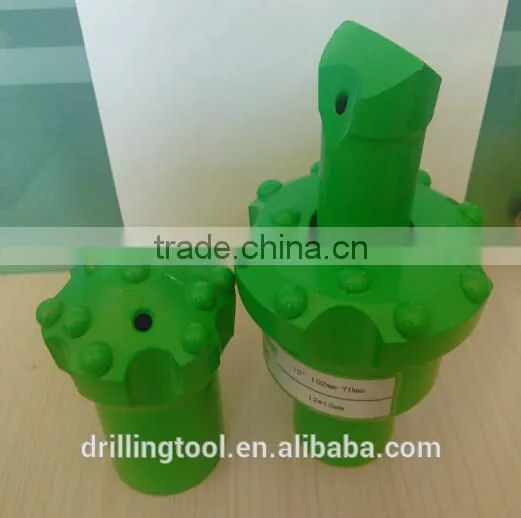

Thread R38, T38, T45 Hole Digging Drill Bits for Rock Drilling Machine
US$ 80 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Miroc
Model Number:
T45/T51 drill rods
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin or Based On Customers
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Anti-Corrosion Capacity Self Drilling Anchor Bolt T76N Alloy Structure SteelUS$ 1.8 - 21MOQ: 50 Meters -
Alloy Steel Anchor Bolt R32 Hollow Self Drilling Rock Anchor BoltUS$ 1.8 - 10MOQ: 50 Meters
-
T-Thread Hollow Anchor Bar / Mining Machines SDA All Thread Hollow BarUS$ 1.8 - 10MOQ: 50 Meters
-
High Tensile Hollow Anchor Rod R38L Diameter 1000mm - 8000mm for Quarry StabilizationUS$ 1.8 - 10MOQ: 50 Meters
-
R38N SDA Self Drilling Grouting Anchors and Drill Bits for Slope StabilizationUS$ 1.8 - 10MOQ: 50 Meters
Place of Origin
Shandong, China
Brand Name
Miroc
Model Number
T45/T51 drill rods
Type
Drill Shank
Machine Type
Drilling Tool
Certification
API
Material
Other, Carbon Steel, 23CrNi3Mo
Processing Type
Forging
Use
Other, Ore Mining, Undeground Construction
Specifications
1) Thread connection: R22, R25, R28, R32, R38, T38, T45, T51, ST58, ST68, GT60 .
2) Steel material: 45CrNiMoV.
3) Suitable carbide tips.
4) Bits diameter: 30-127mm.
Usage:drilling in ore field,
suitable even for harsh enviroment works;
Selling Point: quality certified;
competitive prices;
Brand Name effect;
nice after-sales services;
Rock Button Bit Specification
| T45 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 70 | 3×11, 1×19 | 6×11 | 3 | - | 2.2 |
| 2 | 76 | 3×11, 1×11 | 6×13 | 3 | - | 2.4 |
| 3 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 4.1 |
| 4 | 102 | 3×13, 2×13 | 6×14 | 3 | 1 | 4.5 |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| R38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
| R32 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| 4 | 48 | 2×9 | 5×11 | 1 | 1 | 0.9 |
| 5 | 51 | 2×10 | 5×11 | 1 | 1 | 1 |
| 6 | 57 | 3×9 | 6×11 | 3 | - | 1.3 |
| 9 | 76 | 4×11 | 8×11 | 2 | - | 2.8 |
| R28 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 5 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 6 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
