China Military Quality Of Mini Motor Grader For Sale With 132HP
US$ 12,655 - 139,890
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Forward Speed(km/h):
38.3
Reverse Speed(km/h):
24.4
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Forward Speed(km/h)
38.3
Reverse Speed(km/h)
24.4
Place of Origin
Henan, China
Brand Name
YUTONG
Model Number
YTPY135C
Weight
13800kg
Dimension(L*W*H)
8270x2495x3390(mm)
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
China Military Quality Of Mini Motor Grader For Sale With 132HP
Product Description

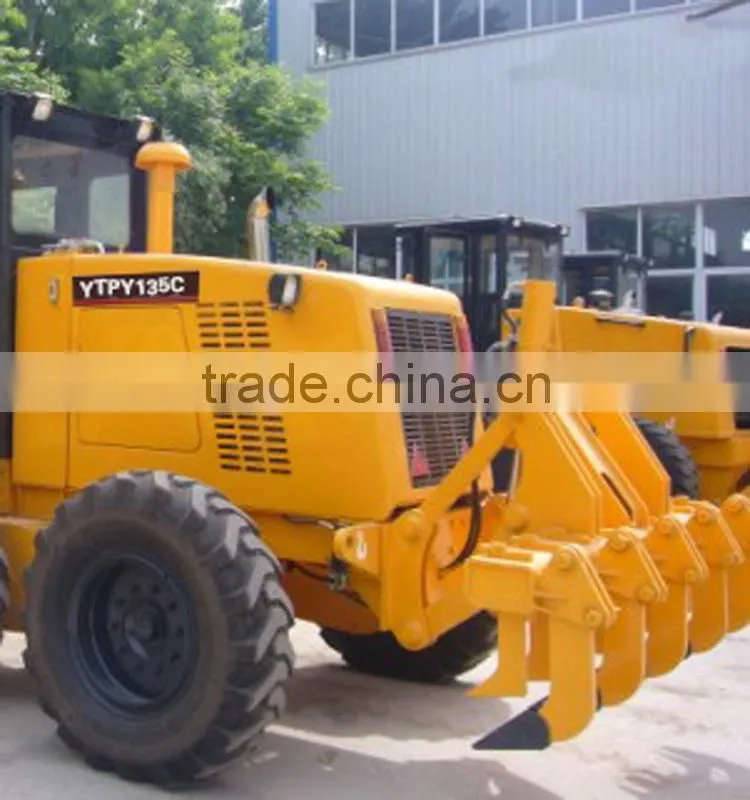

MODEL |
YTPY135C |
|
Operating mass |
Kg |
13800 |
Front axle load |
Kg |
4000 |
Rear axle load |
Kg |
9800 |
Max forward speed |
Km/h |
38.3 |
Max backward speed |
Km/h |
24.4 |
Speed gear number |
F6/R3 |
|
Turning radius |
mm |
7500 |
Hydraulic system pressure |
Mpa |
18 |
Blade lengt × height |
mm |
3660×610 |
Front wheel track |
mm |
2150 |
Rear wheel track |
mm |
2165 |
wheelbase |
mm |
5347 |
Engine model |
mm |
CUMMINS 6BT5.9 |
Engine power |
kW |
97 |
Overall dimensions |
mm |
8270×2495×3390 |
Working device |
|
Swing arm link mechanism operation device, maintenance-free roll-disc rotary device, Hydraulic pull pin device |
Operating valve |
|
Imported HUSCO five-way control valve |
Air conditioner |
|
Standard configuration with air conditioning |
Performance
 |
1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.; 2.Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting ; 3.Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels. |
|
4.Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board. 5.Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let. |
Our Services
Service after sale is based on the principle of
service. We will offer the “12380”service:
service. We will offer the “12380”service:
1: After receiving the customer mobile, we will help
customer solve problem through removing the
resources of YUTONG service and reply the customer
clearly in one hours;
2: To improve the service quality all the time, in 2
working days of the end of on-sit service, we will pay
a return visit about the satisfaction of after sale
service;
3: To comprehensive systematically and
professionally maintenance and repair for the
customer product, we will have 3 times On-Site
Inspection forwardly in warranty period;
8:The service engineer will solve problem in 8 hours
after getting to on-sit. If the problem is not solve ,the
service engineer can not leave the on-sit;
0: To eliminate customer worries, from receiving
order to product scrapping, YUTONG will provide
full reliance,seamless docking and service in the
period of product using.
