Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Grader > Hot Sale Operating Mass 16 Ton Tractor Motor Grader

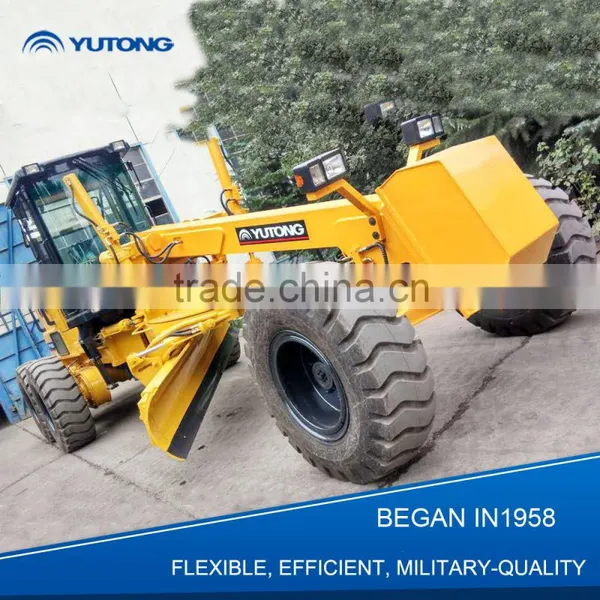

Hot Sale Operating Mass 16 Ton Tractor Motor Grader
US$ 16,585 - 122,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Forward Speed(km/h):
36
Reverse Speed(km/h):
25
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Hot Sale 102hp Used Road Roller PriceUS$ 20,110 - 89,520MOQ: 1 Piece -
China Operating Mass 14 Ton New Road RollerUS$ 18,100 - 97,510MOQ: 1 Piece
-
China Used Single Drum Road Roller For SaleUS$ 18,400 - 97,520MOQ: 1 Piece
-
China Vibratory Road Roller From YutongUS$ 10,000 - 50,000MOQ: 1 Set
-
YUTONG Walking Behind Vibratory Road RollerUS$ 10,000 - 50,000MOQ: 1 Set
Condition
New
Forward Speed(km/h)
36
Reverse Speed(km/h)
25
Place of Origin
Henan, China
Brand Name
YUTONG
Model Number
YTPY180C
Weight
16000kg
Dimension(L*W*H)
8605x2695x3420(mm)
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas

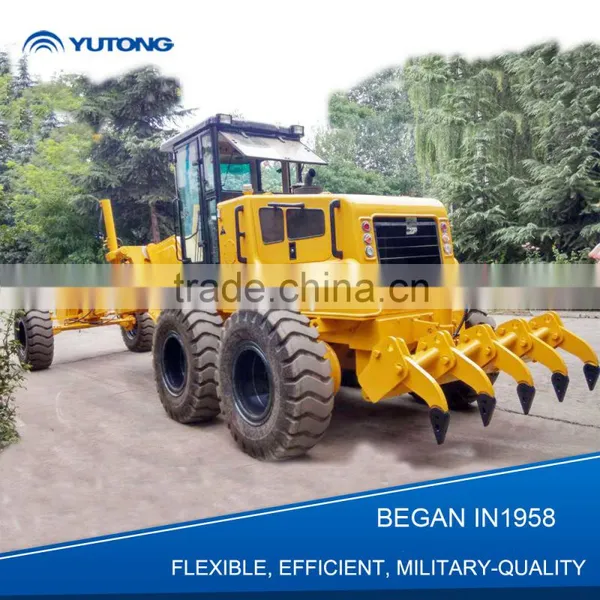

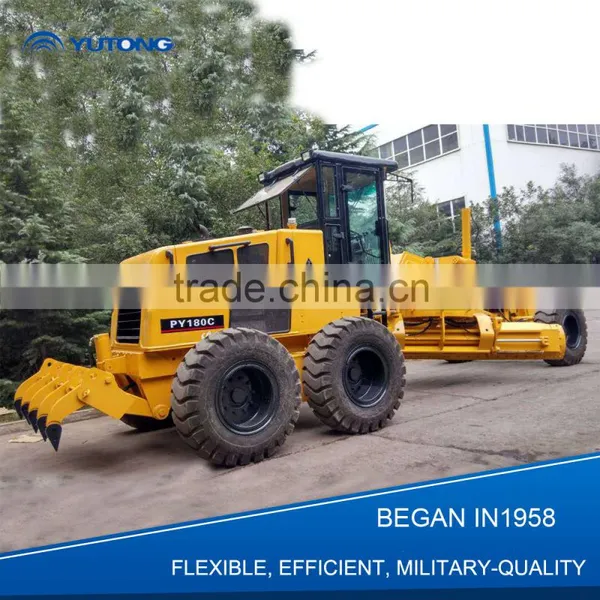

Hot Sale Operating Mass 16 Ton Tractor Motor Grader
Product Description
MODEL |
YTPY180C |
|
Operating mass |
Kg |
16000 |
Front axle load |
Kg |
5150 |
Rear axle load |
Kg |
10850 |
Max forward speed |
Km/h |
36 |
|
Max backward speed |
Km/h |
25 |
Speed gear number |
|
F6/R3 |
Turning radius |
mm |
7800 |
|
Hydraulic system pressure |
Mpa |
18 |
|
Blade lengt × height |
mm |
3965×610 |
Front wheel track |
mm |
2150 |
Rear wheel track |
mm |
2255 |
wheelbase |
mm |
5647 |
Engine model |
mm |
CUMMINS 6BTA5.9 |
Engine power |
kW |
132 |
Overall dimensions |
mm |
8605×2695×3420 |
Working device |
|
Swing arm link mechanism operation device, maintenance-free roll-disc rotary device, Hydraulic pull pin device |
Operating valve |
|
Imported HUSCO five-way control valve |
Air conditioner |
|
Standard configuration with air conditioning |
Performance
|
1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.; 2.Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting ; 3.Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels. |
|
4.Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board. 5.Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let. |

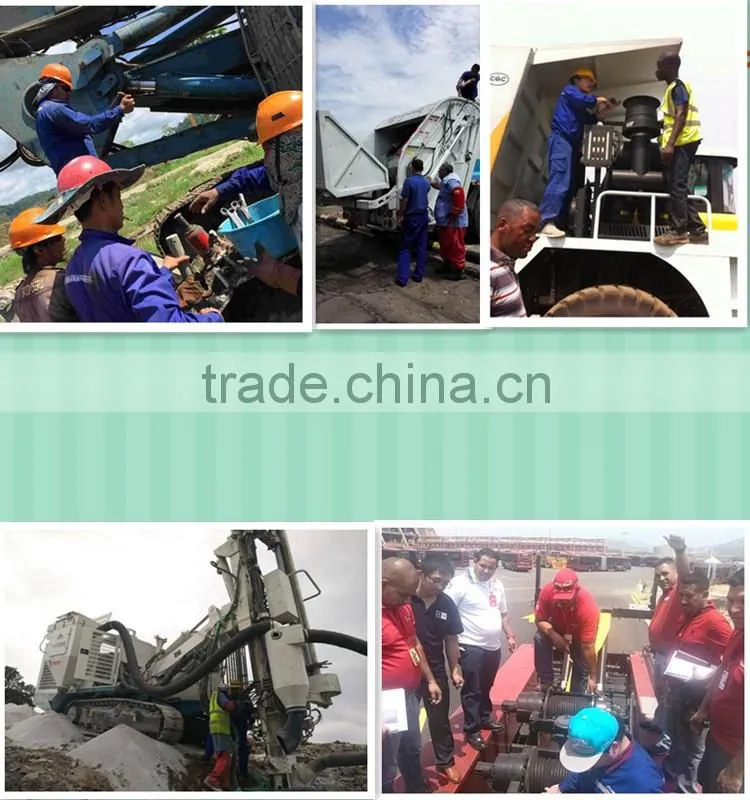

Our Services
"12380" service after sale We can offer:
1: After receiving the customer mobile, we will help customer solve problem through removing the resources of
YUTONG service and reply the customer clearly in one hours;
2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit
about the satisfaction of after sale service;
3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will
have 3 times On-Site Inspection forwardly in warranty period;
8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service
engineer can not leave the on-sit;
0: To eliminate customer worries, from receiving order to product scrapping, YUTONG will provide full reliance,
seamless docking and service in the period of product using.
About Us
|
|
|
Trade Shows
|
FAQ&Contact Us
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
