Home > Tools & Hardware > Drilling Tools > Drill Bit > T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools

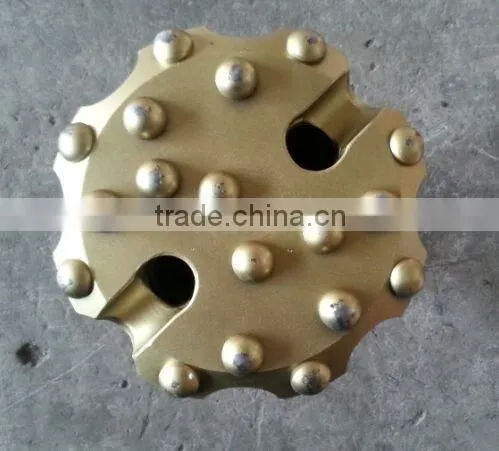

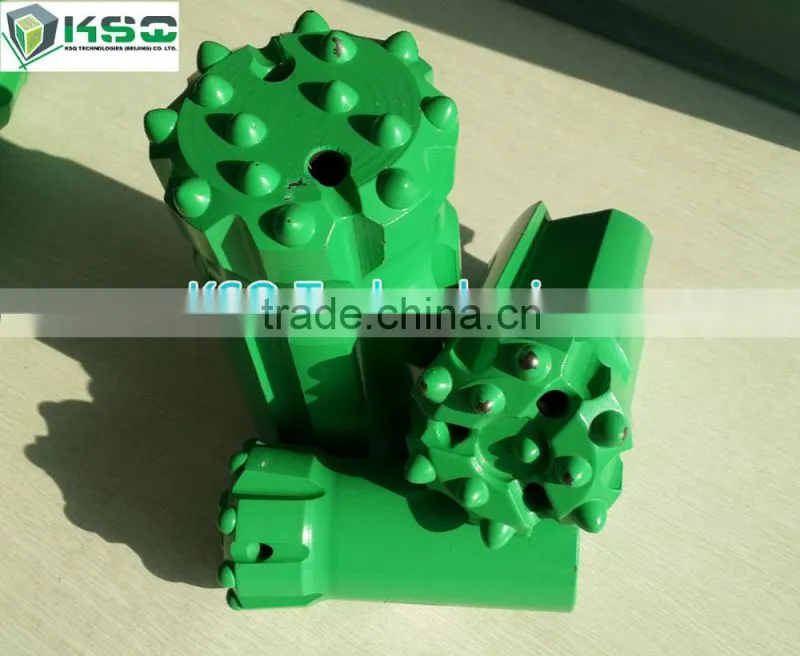

T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools

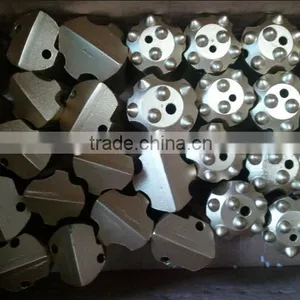

T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools thumbnail-1
T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools thumbnail-2
T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools thumbnail-3
T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools photo-1
T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools photo-2
T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools photo-3
US$ 5 - 130 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
Tungsten Carbide Button Bits
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Tianjin/Shanghai/as customers required
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number Tungsten Carbide Button Bits
Material Tungsten Carbide
Use Other, Tunnel/Quarry/Bench/Water Well



Tungsten Carbide Button Bits



Description



This Tungsten Carbide Button Bits is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



Type: T51 Button Bit





Applications





Thread: T51 Thread
Bit Diameter: 89 to 115mm
Tungsten Carbide: Ballistic or Sherical
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Rock Condition: Bit face design is ideal for medium-hard to hard abrasive rock
Application: Widely used in bench and long hole drilling





Specification as below:



Product Name Bit Diameter Carbide Button Angle Flushing Hole Weight (kg)
(mm) (inch) Front
(No. x mm)		 Gauge
(No. x mm)		 Front Side
T51
Button Bit		 89 3 1/2 5x13 8x13 35° 2 1 4.9
89 3 1/2 3x11, 2x11 6x13 35° 4 - 4.9
89 3 1/2 4x11, 1x11 8x13 35° 4 - 4.9
89 3 1/2 4x13, 1x13 8x13 35° 4 - 4.9
102 4 4x14 8x14 40° 2 - 5.8
102 4 6x13 8x16 35° 2 1 5.8
102 4 3x13, 2x13 6x14 35° 3 1 5.2
102 4 4x13, 1x13 8x14 35° 4 - 5.8
102 4 4x13, 2x13 8x13 35° 4 1 5.8
115 4 1/2 6x14 8x16 35° 2 - 6.8
115 4 1/2 4x13, 2x13 8x14 35° 4 - 6.8
115 4 1/2 4x13, 3x13 8x14 35° 4 - 6.8
115 4 1/2 4x14, 2x14 8x16 35° 4 - 6.8





 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill ToolsT51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools









Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.



Our Factory View

T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools





Our Activities



we attended the Bauma Expo 2014 in Shanghai







T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools



T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Drill Tools









FAQ



The information you may like to know before order:

1. Methods of Payment:

  T/T (Telegraphic Transfer) or L/C at sight

2. Handling time for an order

  Based on order quantity, normally it takes 25 days for production.

  Only 2 or 3 days if we have stock on your request size.

3. Shipping way

  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

  Bulk order: we suggest by air or by sea.

4. Quality Control

  We have our own experienced QC.

  There will be strict inspection and testing for every order before shipping out.

5. After Services:

  a. Our sales team will response for your question within 24 hours (Holidays Excluded)

  b. Technical Support will be available at any time

  c. Free replacement will be provided once the failure confirmed caused by our product quality
