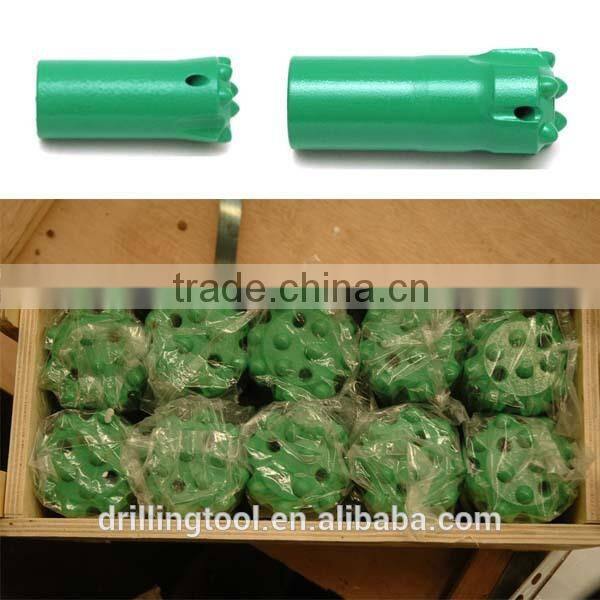

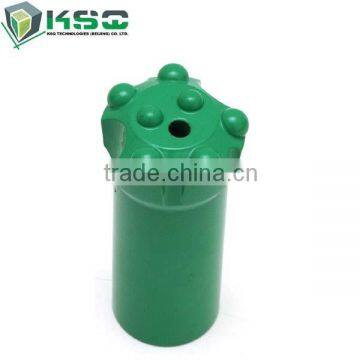

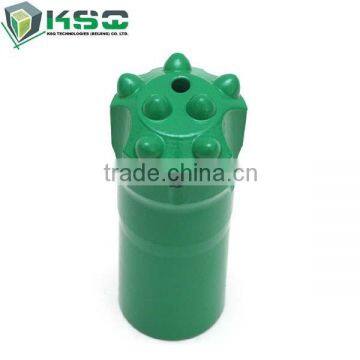

R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits

R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits thumbnail-1
R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits thumbnail-2
R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits thumbnail-3
R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits photo-1
R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits photo-2
R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits photo-3
US$ 5 - 80 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
R28 Button Bits
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Tianjin/Shanghai/as customers required
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number R28 Button Bits
Material Tungsten Carbide
Use Other, Tunnel/Quarry/Bench/Water Well



R28 Tungsten Carbide Button Bits



Description



This Tungsten Carbide Button Bits is well known for its high wear resistance on soft to medium-hard rock formations. Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



Product Name: R25 Tungsten Carbide Button Bits
Bit Diameter: 37mm to 89mm, or 1 29/64" to 3 1/2"
Tungsten Carbide: Ballistic or Spherical
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Rock Condition: Bit face design is ideal for medium-hard to hard abrasive rock
Application: Widely used in bench and long hole drilling





Specification as below:



Product Name Bit Diameter Carbide Button Angle Flushing Hole Weight (kg)
(mm) (inch) Front
(No. x mm) 		Gauge
(No. x mm) 		Front Side
 R28
 Button Bit 		37 1 19/64 2X7 5X7 35° 1 1 0.4
38 1 3/8 2X7 5X8 35° 1 1 0.4
38 1 1/2 2X7 5X8 30° 1 1 0.5
38 1 1/2 2X7 5X9 30° 1 1 0.6
41 1 5/8 2X9 4X9 35° 1 2 0.6
41 1 5/8 2X8 5X9 35° 1 1 0.6
45 1 3/4 2X9 4X11 35° 1 2 0.6
45 1 3/4 2X8 5X10 30° 1 2 0.6
45 1 3/4 2X8 5X10 30° 1 2 0.6





 R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits





Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.



Our Factory View

R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits





Our Activities

we attended the Bauma Expo 2014 in Shanghai



 R25 R32 R38 T38 T45 T51 Thread Button Bit Drop Center Flat Face Tungsten Carbide Button Bits



FAQ



The information you may like to know before order:

1. Methods of Payment:

  T/T (Telegraphic Transfer) or L/C at sight

2. Handling time for an order

  Based on order quantity, normally it takes 25 days for production.

  Only 2 or 3 days if we have stock on your request size.

3. Shipping way

  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

  Bulk order: we suggest by air or by sea.

4. Quality Control

  We have our own experienced QC.

  There will be strict inspection and testing for every order before shipping out.

5. After Services:

  a. Our sales team will response for your question within 24 hours (Holidays Excluded)

  b. Technical Support will be available at any time

  c. Free replacement will be provided once the failure confirmed caused by our product quality
