High Quality T51 Thread Drill Bit

High Quality T51 Thread Drill Bit thumbnail-1
High Quality T51 Thread Drill Bit thumbnail-2
High Quality T51 Thread Drill Bit thumbnail-3

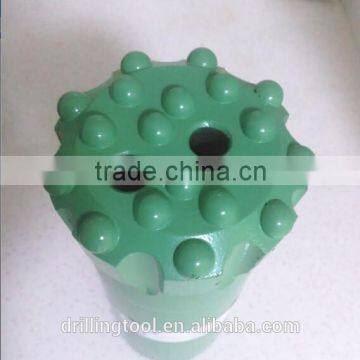

High Quality T51 Thread Drill Bit photo-1

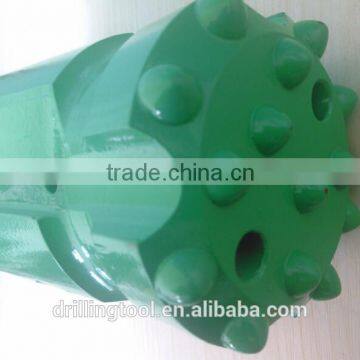

High Quality T51 Thread Drill Bit photo-2

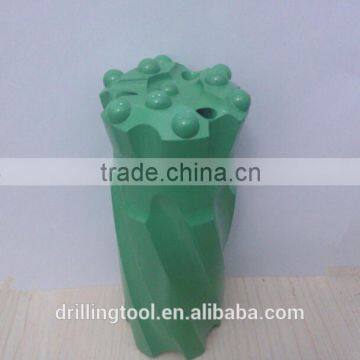

High Quality T51 Thread Drill Bit photo-3
US$ 25 - 75 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60, T51 thread button bit
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin/According to customer's request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60, T51 thread button bit
Type Other, thread button bit, Thread drill bit
Material Other, Tungsten Carbide, Tungsten Carbide(45CrNiMoVA)
Use Other, Tunnel/Quarry/Bench/Water Well, Tunnel/Quarry/Bench/Water Well

Thread Button Bit



Description



T51 thread button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



Thread button bits made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy





According to different drilling application, we have different design to meet customers with good quality and good price .



No matter what kinds of rock-Soft rock, loose-medium rock, hard rock and any other special formations, just tell us what you need and leave others at our disposal, we will handle the following, and our special tailored service is waiting for you upon your demand.







(1)Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60



Button bit face design: Flat face, drop centre, Normal and Retrac body.



Tungsten carbide (Buttons): Spherical, ballistic and Conical. (Threaded R32, R38, T38, T45, T51, bit diameter: 45mm-127mm);







(2) Main button bits diameters:



R32-45mm, R32-51, R32-64, R32-76,



T38-64mm, T38-76mm, T38-89, T38-102mm,



T45-76mm, T45-89mm, T45-102mm,



T51-89mm, T51-102mm, T51-127 etc.

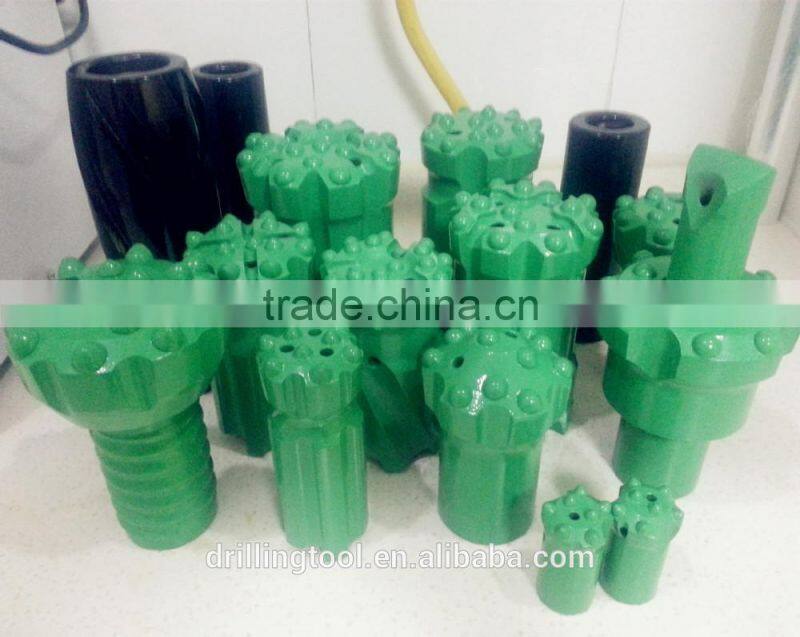

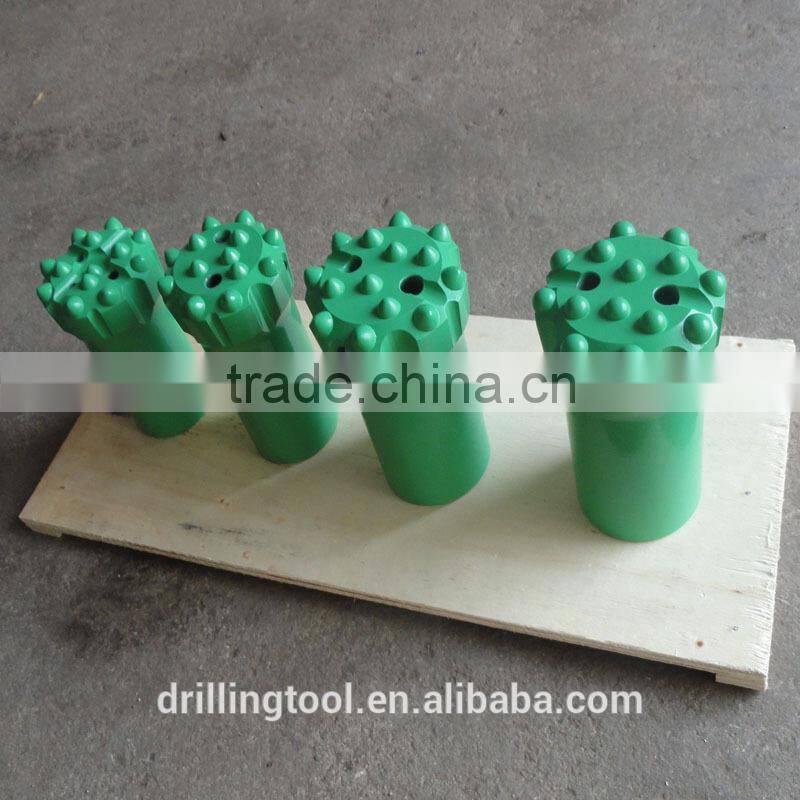

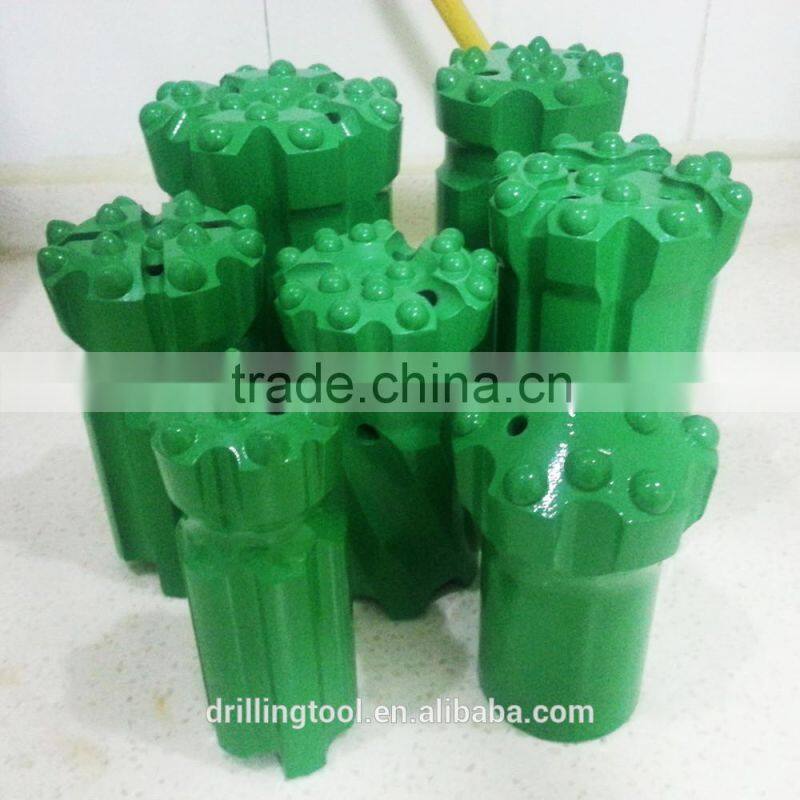

High quality T51 thread drill bitHigh quality T51 thread drill bit

High quality T51 thread drill bitHigh quality T51 thread drill bit







Specifications
The technical parameter of Normal-type Thread button bits
Thread Type dia tip size(mm) flushing holes weight (kg)
mm gauge front side front
R25 R28  32 3*8 1*8 1 1 0.3
33 5*8 2*7 2 1 0.3
35 5*8 2*7 2 1 0.4
38 5*8 2*8 2 1 0.5
38 5*9 2*7 2 1 0.5
41 5*9 2*8 2 1 0.6
42 5*9 2*8 2 1 0.6
43 5*9 2*9 2 1 0.6
43 5*9 2*8 2 1 0.6
45 5*9 2*9 2 1 0.7
48 5*10 2*9 2 1 0.78
51 5*11 2*10 2 1 1.1
57 5*12 2*10 2 1 1.3
R32 41 4*9 2*8 1 1 0.54
43 4*9 2*9 1 1 0.55
45 4*10 2*9 1 1 0.6



Thread Type dia tip size(mm) flushing holes weight (kg)
mm gauge front side front
T38 57 5*11 3*10 1 1 1.6
64 5*12 3*11 1 1 1.6
76 5*14 3*12 1 2 2.4
T45 70 6*11 4*10 0 2 2.4
76 6*13 4*10 0 2 2.6
89 8*12 5*12 2 2 4.5
102 8*13 6*12 2 2 5
115 8*14 6*13 2 2 6.8
T51 89 8*12 5*12 2 2 4.9
102 8*13 6*12 2 2 5.8
115 8*14 6*13 2 2 6.8
127 8*14 6*14 2 2 7.5

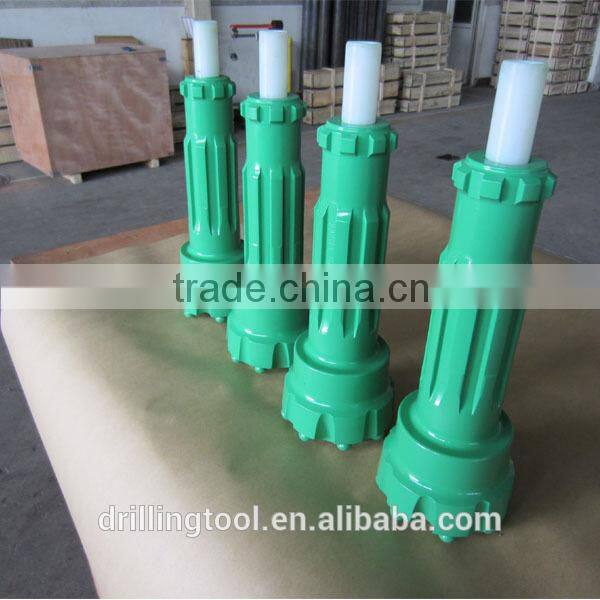

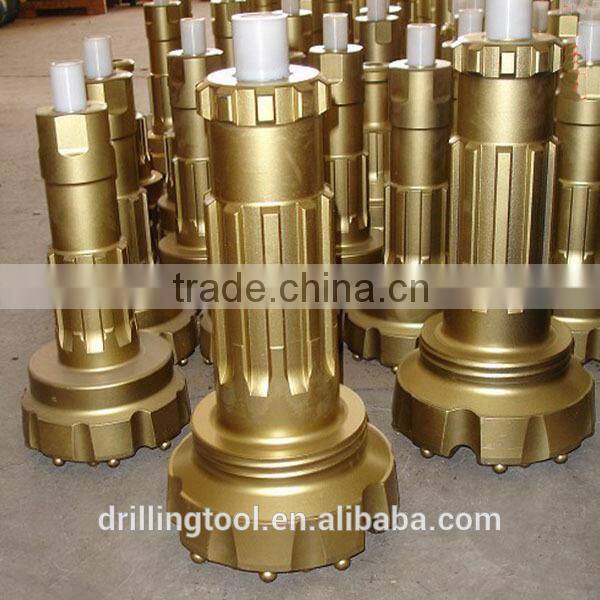

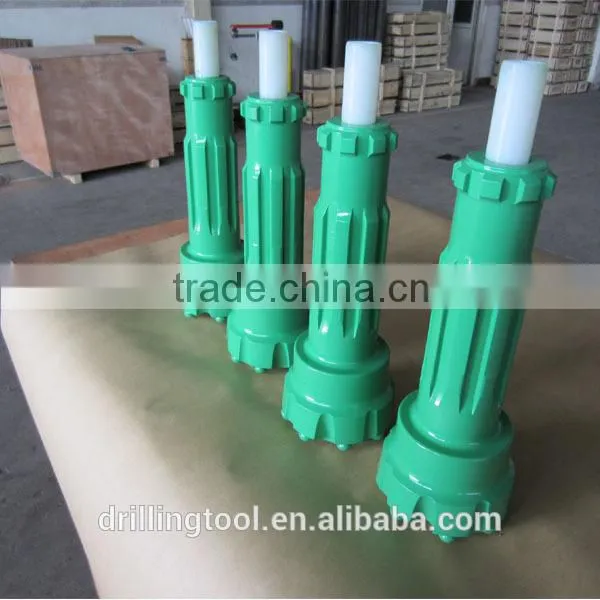

High quality T51 thread drill bitHigh quality T51 thread drill bitHigh quality T51 thread drill bitHigh quality T51 thread drill bit
