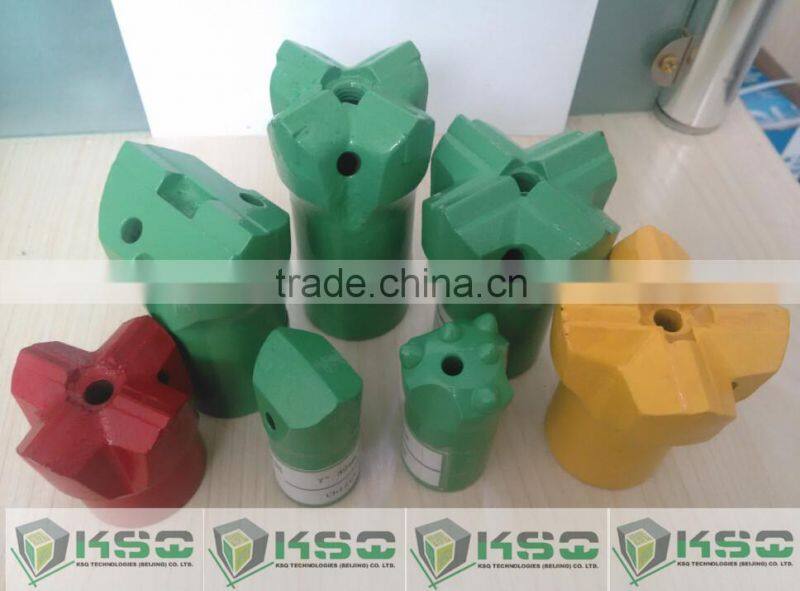

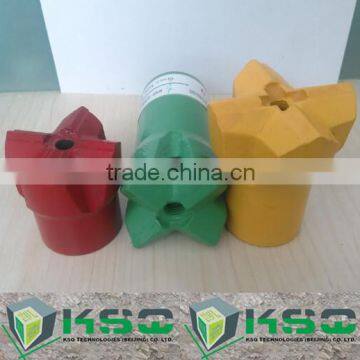

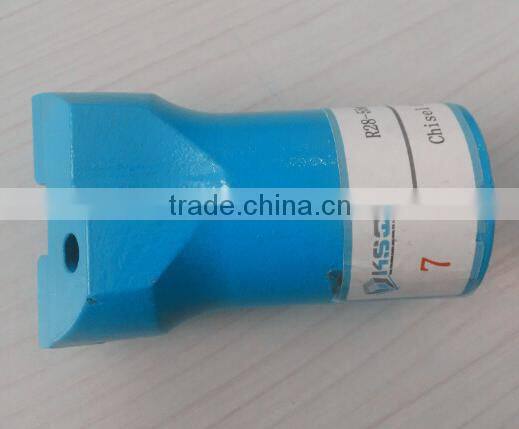

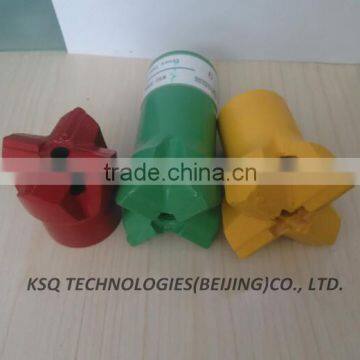

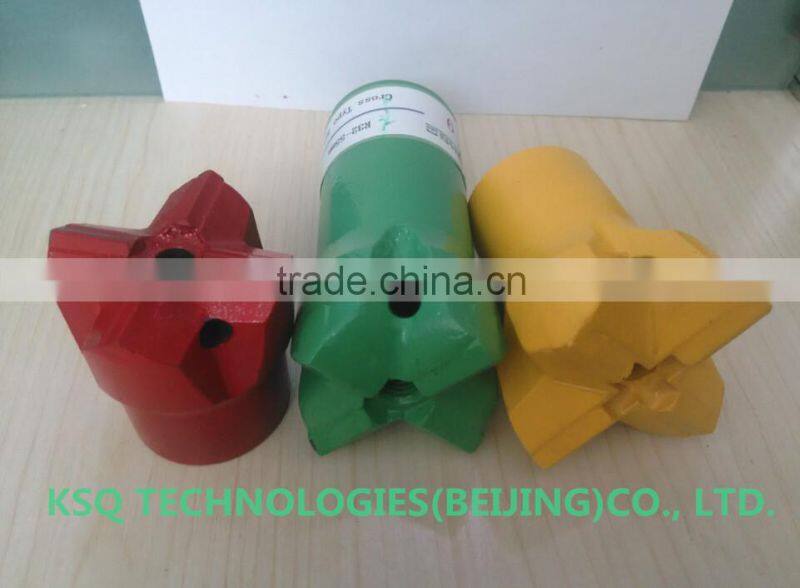

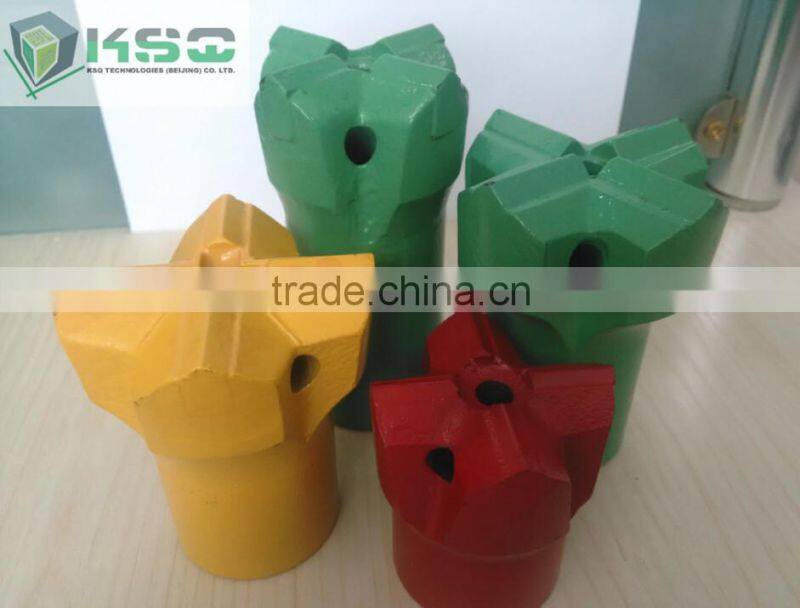

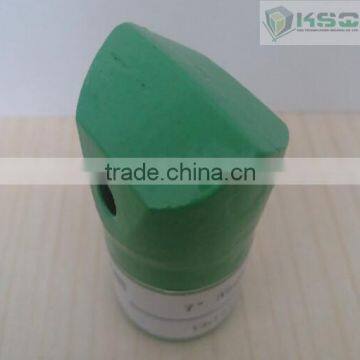

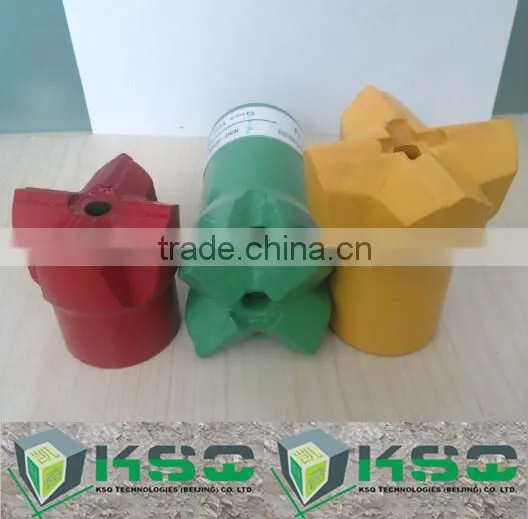

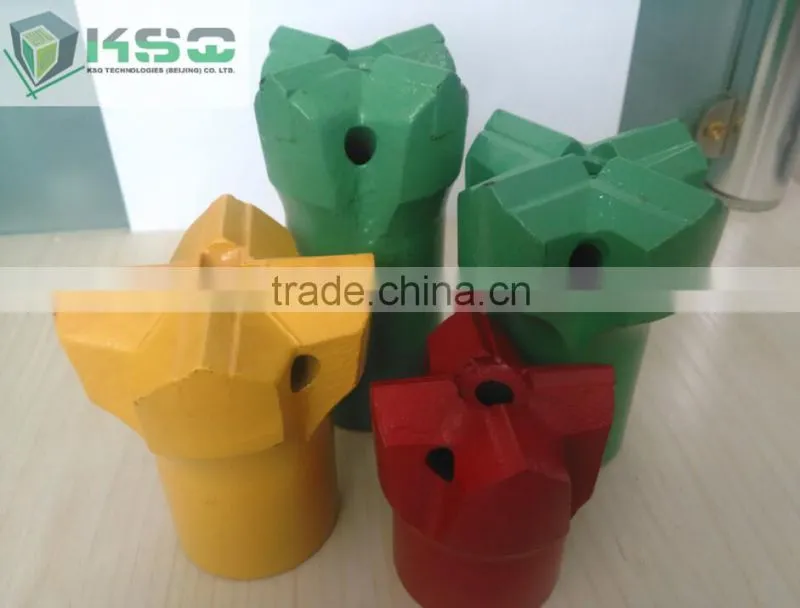

Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit

Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit thumbnail-1
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit thumbnail-2
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit thumbnail-3
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit thumbnail-4
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit thumbnail-5
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit photo-1

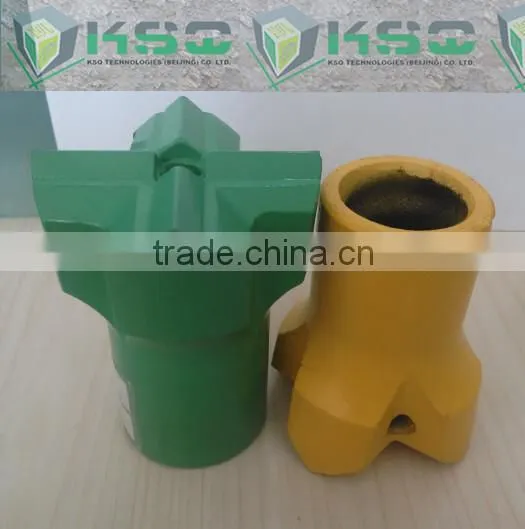

Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit photo-2
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit photo-3
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit photo-4
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit photo-5
US$ 10 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
Threaded Drilling Tool
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin Port or Based on Customers
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number Threaded Drilling Tool
Type Other, Drilling Tools
Material Tungsten Carbide
Use Other, Rock drilling



Mainly Products



Thread Drill Bits---Diameter: 20mm  to 60mm

Thread Type---R22, R25, R28, R32, R38, T38, T45, T51
Face Shape---Plate, Concave, Convex.

Bit Shank & Coupling sleeve---R22, R25, R28, R32, R38, T38, T45, T51



Drill Rod

Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.

Thread Rod---R25, R28, R32, R38, T38, T45, T51.

Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.



Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type BitMining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type BitMining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit



Description

<

R25 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 33 14x8 1 2
2 35 14x8 1 2
3 38 14x8 1 4
4 41 14x8 1 4
5 43 14x8 1 4
6 45 14x8 1 2
7 51 14x8 1 4
R25 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 33 14x8 1 2
2 35 14x8 1 2
3 38 14x8 1 4
4 41 14x8 1 4
5 43 14x8 1 4
6 45 14x8 1 2
7 51 14x8 1 4
R28 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 38 14x8 1 2
2 41 14x8 1 4
3 43 14x8 1 4
4 45 14x8 1 4
5 51 14x8 1 4
R32 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 41 16×10 1 4
2 43 16×10 1 2
3 45 16×10 1 4
4 48 16×10 1 4
5 51 16×10 1 4
6 57 16×10 1 4
7 64 18×13 1 4
R38 X-Type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 64 25×13 1 2
2 76 25×13 1 2
3 89 25×13 1 2
