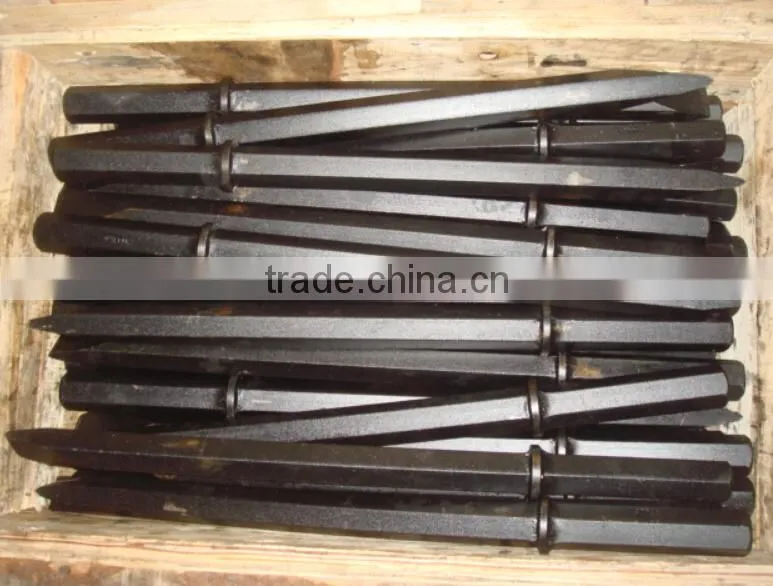

7 Degrees Hex Tapered Rod With Shank 22 mm x 108 mm

7 Degrees Hex Tapered Rod With Shank 22 mm x 108 mm thumbnail-1
7 Degrees Hex Tapered Rod With Shank 22 mm x 108 mm photo-1
US$ 5 - 100 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
H22-7D-600 to H22-7D-6000
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number H22-7D-600 to H22-7D-6000
Type Other, Taper Hex 22 Tapered Rod
Material Other, Carbon Steel
Use Metal Drilling

Our Company

 KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



Specifications
 High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance


Descripetion

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



 Product Technical Reference

< 7 degrees Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm



Part Number Product Code and Brief Description Length (mm) Length (ft/inch) Weight (kg)
4148300179 H22-7D-600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 600 2 1.93
4148300180 H22-7D-800, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 800 2 5/8 2.54
4148300181 H22-7D-1000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1000 3 2/7 3.15
4148300182 H22-7D-1200, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1200 4 3.76
4148300183 H22-7D-1500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1500 5 4.68
4148300184 H22-7D-1600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1600 5 1/4 4.98
4148300185 H22-7D-1800, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1800 6 5.59
4148300186 H22-7D-2000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2000 6 5/9 6.2
4148300187 H22-7D-2200, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2200 7 2/9 6.81
4148300188 H22-7D-2300, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2300 7 5/9 7.12
4148300189 H22-7D-2400, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2400 7 7/8 7.42
4148300190 H22-7D-2500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2500 8 1/5 7.73
4148300191 H22-7D-2600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2600 8 1/2 8.03
4148300192 H22-7D-3000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 3000 9 5/6 9.25
4148300193 H22-7D-3500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 3500 11 1/2 10.78
4148300194 H22-7D-4000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 4000 13 1/8 12.3
4148300195 H22-7D-4500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 4500 14 3/4 13.83
4148300196 H22-7D-5000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 5000 16 2/5 15.35
4148300197 H22-7D-5500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 5500 18 16.88
4148300198 H22-7D-6000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 6000 19 2/3 18.3



Applications

• Dimensional Stone Industry
• Underground Mining
• Tunneling

Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.

FAQ



Any question, please feel free to contact us
