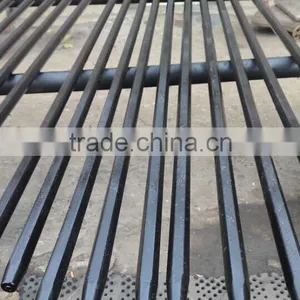

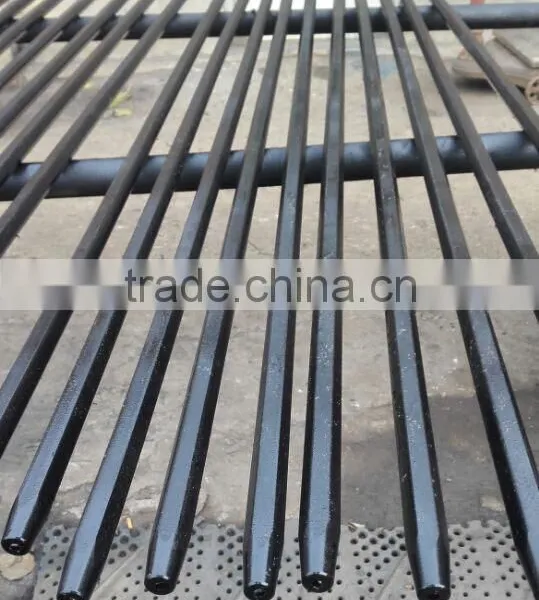

11 Degrees Hex Tapered Rod With Shank 22 mm x 108 mm

11 Degrees Hex Tapered Rod With Shank 22 mm x 108 mm thumbnail-1
11 Degrees Hex Tapered Rod With Shank 22 mm x 108 mm photo-1
US$ 5 - 100 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
H22-11D-610 to H22-11D-8000
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number H22-11D-610 to H22-11D-8000
Type Other, Taper Hex 22 Tapered Rod
Material Other, Carbon Steel
Use Other, Ore Mining

Our Company

 KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



Specifications
 High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance


Descripetion

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



 Product Technical Reference

< 11 degrees Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm

Number Product Code and Brief Description Length (mm) Length (ft/inch) Weight (kg)
4148300241 H22-11D-610, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 610 2    2.2
414830024Part 2 H22-11D-1220, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1220 4    4.1
4148300243 H22-11D-1830, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1830 6    5.9
4148300244 H22-11D-2000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2000 6 5/9 6.4
4148300245 H22-11D-2435, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2435 8    7.8
4148300246 H22-11D-2600, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2600 8 1/2 8.3
4148300247 H22-11D-3200, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 3200 10 1/2 10.1
4148300248 H22-11D-3655, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 3655 12    11.5
4148300249 H22-11D-4000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 4000 13 1/8 12.6
4148300250 H22-11D-4800, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 4800 15 3/4 14.9
4148300251 H22-11D-5600, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 5600 18 3/8 17.4
4148300252 H22-11D-6400, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 6400 21    19.8
4148300253 H22-11D-7200, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 7200 23 5/8 22.2
4148300254 H22-11D-8000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 8000 26 1/4 24.6



Applications

• Dimensional Stone Industry
• Underground Mining
• Tunneling

Packaging & Shipping

  Packaging:Carton or Wooden Box

Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
