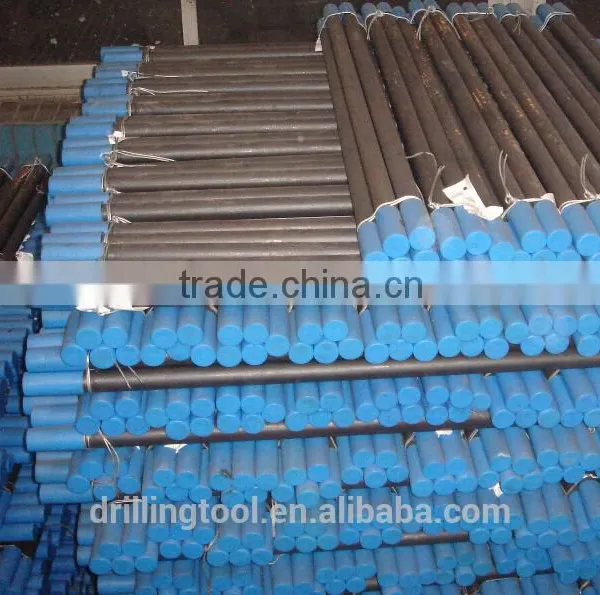

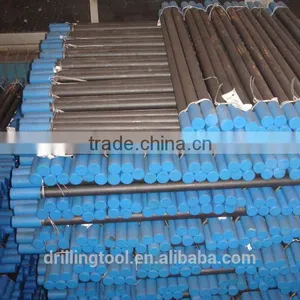

Tapered Length 400-8000mm Integral Drill Rod for Tunnelling and Quarry
- 300000 Piece / Pieces per Month
- FOB BeiJing or TianJin
- T/T L/C D/P D/A Credit Card PayPal
- ZY SUPER HARD PCD Twist Drill Bits
- ZY SUPER HARD New Drill Fix DFT WCGW WCGX Full Face PCD Inserts for Drilling
- BQ NQ HQ PQ NTW HTW bits, hard formation core drill bits, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- hard formation core drill bits, BQ NQ HQ PQ NTW HTW, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- impregnated diamond core drill bit, BQ NQ HQ PQ, wireline core barrels, coring bits, hard formation, deep hole rock core recovery
- TIDEWAY Finger Joint cutter Finished Sandblast T.c.t Single Piece Finger Joint Carbide Shaper Cutters
Product Details
Place of Origin: | Shandong, China | Brand Name: | Miroc | Model Number: | rock drill steel rod |
Type: | Other, Drill steel | Material: | Tungsten Carbide | Use: | Other, Tunneling, Mining |
Product Description

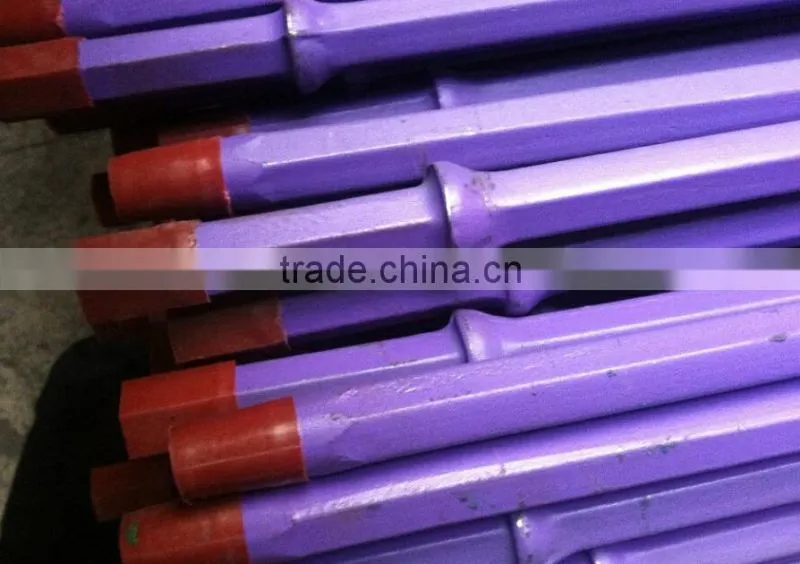

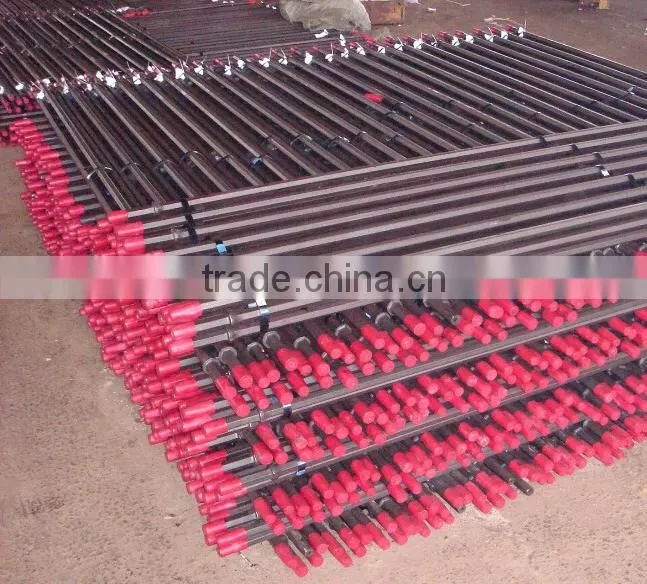

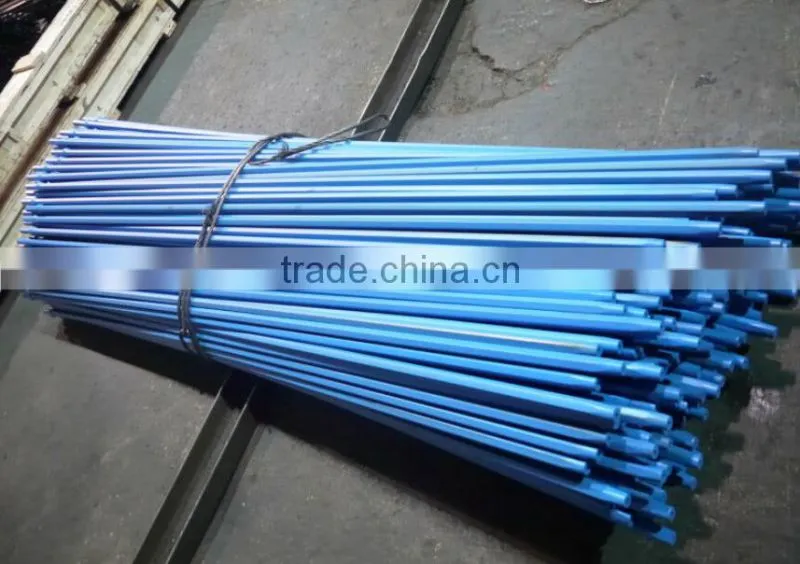

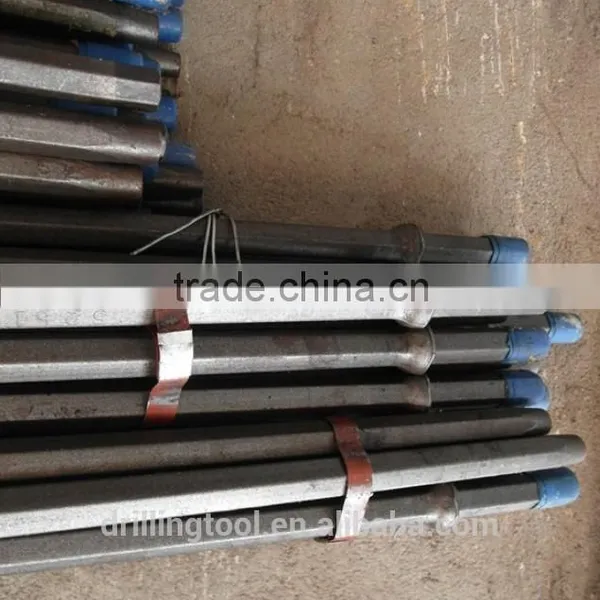

Integral drill steel rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 24mm to 44mm usually.Regarding Integral drill steels,the quality of
a steel material and a tungsten carbide is very important to get good drilling performance.
According to different application, different lengths are available from 600mm to 9600mm.
Aplication
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Description &Specification
1. Diameter: 19 to 42mm
2. Shank: Hex22*108mm
3. Length: 600mm, 800mm, 1000mm, 1200mm, 2400mm, etc.
Product Name: | integral drill steel | |||
Types | Tapered drill rods, Integral drill rods, Plug hole rods | |||
Application:: | Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling | |||
Material: | High quality carbide and high quality steel | |||
MOQ: | No requirement for testing and trial order | |||
We can produce as your request of carbide size, different length of drill rods. | ||||
Types of drill rods | Specifications | Length (mm) | Shank | Weight (kg) |
Tapered drill rods | Taper Angle: 4, 6, 7, 11, 12 degree | 400mm to 8000mm | Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm | 1.7 - 24.9 |
Integral drill steel | Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm | 400mm to 4800mm | 3 – 15.4 | |
Plug hole rods | Chisel bit diameter: 17mm, 20mm, 22mm | 150mm to 710mm | 0.6 - 2.9 |
Chisel Bit Integral Drill Steel | |||||
Shank 22 x 108 mm (7/8” x 4 1/4”) | |||||
Length (mm) | Bit Diameter (mm) | PN. | |||
1 | 400 | 24 | 4148300018 | ||
2 | 400 | 29 | 4148300019 | ||
3 | 600 | 27 | 4148300020 | ||
4 | 800 | 23 | 4148300021 | ||
5 | 800 | 28 | 4148300022 | ||
6 | 1200 | 23 | 4148300023 | ||
7 | 1600 | 27 | 4148300024 | ||
8 | 2000 | 28 | 4148300025 | ||
9 | 2400 | 26 | 4148300026 | ||
10 | 3200 | 25 | 4148300027 | ||
Plug Hole Integral Drill Steel | |||||
Shank 19 x 108 mm (3/4” x 4 1/4”) | |||||
Length (mm) | Bit Diameter (mm) | PN. | |||
1 | 210 | 17 | 4148300028 | ||
2 | 210 | 20 | 4148300029 | ||
3 | 210 | 22 | 4148300030 | ||
4 | 260 | 20 | 4148300031 | ||
5 | 260 | 22 | 4148300032 | ||
6 | 310 | 22 | 4148300033 | ||
7 | 340 | 20 | 4148300034 | ||
Chisel Bit, 7 ° , 11° , 12° | |||||
Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
1 | 26 | 10x7 | 0.17 | ||
2 | 28 | 10x7 | 0.18 | ||
3 | 30 | 13.5x8 | 0.22 | ||
4 | 32 | 13.5x8 | 0.24 | ||
5 | 34 | 13.5x8 | 0.27 | ||
6 | 36 | 13.5x8 | 0.3 | ||
7 | 38 | 13.5x8 | 0.33 | ||
8 | 38 | 15x9 | 0.33 | ||
9 | 40 | 3.5x9.2 | 0.38 | ||
10 | 40 | 15x9.8 | 0.38 | ||
11 | 42 | 13.5x9.2 | 0.41 | ||
12 | 42 | 15x9.8 | 0.41 | ||
13 | 43 | 13.5x9.2 | 0.42 | ||
Cross Type Bit, 7 ° , 11° , 12° | |||||
Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
1 | 30 | 12x12x8 | 0.29 | ||
2 | 32 | 12x12x8 | 0.31 | ||
3 | 33 | 12x12x8 | 0.33 | ||
4 | 34 | 12x12x8 | 0.34 | ||
5 | 35 | 12x12x8 | 0.36 | ||
6 | 36 | 13x12x8 | 0.37 | ||
7 | 38 | 14x12x8 | 0.43 | ||
8 | 40 | 15x12x8 | 0.47 | ||
9 | 41 | 15x12x8 | 0.49 | ||
10 | 42 | 15x12x8 | 0.51 | ||
11 | 43 | 15x12x8 | 0.53 | ||
12 | 45 | 17x14x8 | 0.58 | ||
13 | 48 | 17x14x8 | 0.67 | ||
14 | 50 | 19x14x8 | 0.72 | ||
15 | 55 | 20x16x10 | 0.92 | ||
16 | 60 | 20x16x10 | 1.19 |
