4x2 Type Gravel Dump Truck for Sale

 45 tons gravel dump truck for sale

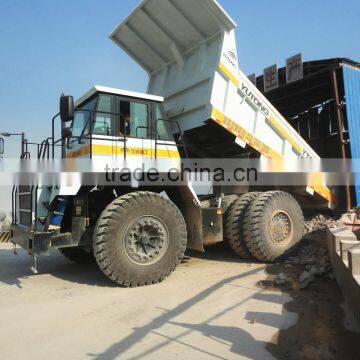

Yutong heavy mining dump truck, as a dump truck brand, appeared in the "product of the China construction machinery TOP50” for three consecutive years.

Product Description





Parameters of Standard Configuration
Curb mass (kg)		37595
Designed gross mass (kg)		82595
Max. rated load (kg)		45000
Standard carriage (flush/stack) (m3)		22/28
Overall dimensions of vehicle (L X W X H) (mm)		9030×4520×4556
Wheel base (mm)		4060
Drive type		4X2
Min. turning radius (m)		≤9.5
Max. speed (km/h)		55
Max. gradeability (%)		35
Approach angle / departure angle (°)		27/53
Engine	Model	QSX15-C525
	Power (kw/hp)	392/525
	Max. torque (N.m)	2440
Gearbox		H5620AR
Tyre		21.00-35
Axle	Load of front axle (kg)	25000
	Load of rear axle (kg)	52800
	Speed ratio	20.9
Time of lifting large carriage (s)		≤13







 1. YTG50 mining dump truck adopts international standard Cummins electronic fuel injection engine with strong power, big torque reserve, reasonable structure, stable performance and high fuel efficiency to meet the state-II emission standard.
2. The transmission adopts America ALLison power shift transmission which is featured with simple operation and stable performance, so that the reliability of the transmission system is improved. TC682 hydraulic torque converter mounted on the transmission can prevent the transmission system from twisting vibration or impact, so that the failure rate has effectively decreased and the service life of the engine and transmission has been prolonged.
3. The YTG50 is equipped with reinforced axle developed by our company, which ensure a reasonable structure and reliable quality.
4. Steering Hydraulic System adopts variable displacement piston pump; when there is no steering, the steering pump is at high-pressure small-displacement state, when it needs steering, corresponding amount of oil will be supplied based on the load to meet the steering requirements for the purpose of oil saving. At the same time, accumulator is used by the system for emergency steering. In case of any failures of the machine, the accumulator will provide temporary compressive oil to stop the vehicle by the roadside to make the system safer and more reliable.
5. In order to prevent the oil cylinder from impact load or engine from failures during the transportation, the implement hydraulic system adopts emergency descent function by mounting float elements on control valve.
6. The brake system is under fully hydraulic control. Service brake is realized by caliper disc brake; compared to the traditional pneumatic control drum brake, it has bigger braking force and is more reliable.
