Home > Products > Mining Machinery > Cummins Engine 40 Ton Mining Dump Truck For Sale

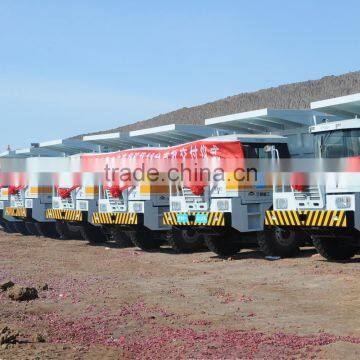

Cummins Engine 40 Ton Mining Dump Truck For Sale
- Qingdao Port Tianjin port Lianyungang port Shanghai port
- T/T
You May Like
Product Details
Drive Wheel | 6x4 | Capacity (Load) | 31 - 40t | |
Horsepower | 351 - 450hp | Condition | New | |
Transmission Type | Manual | Emission Standard | Euro 4 | |
Fuel Type | Diesel | |||
Gross Vehicle Weight | 22000 | Place of Origin | Henan, China | |
Brand Name | YUTONG | Model Number | YT3623 | |
Dimensions (L x W x H) (mm) | 8750x3200x700 |
Product Description
Attractive Appearance YUTONG Cummins Engine Model Mining Dump Truck
Main Technical Parameters of Mining Dump Truck
Overall Dimension of mining dump truck(mm) | 8750×3200×3700 |
Wheelbase of mining dump truck (mm) | 3600/1500 |
Wheel track of front wheel (mm) | 2422 |
Wheel track of middle and rear wheels (mm) | 2262 |
Capacity of standard compartment (m3) | 26 |
Capacity of rock compartment (m3) | 25 |
Kerb mass of entire vehicle (kg) | 22000 |
Allowed total mass with full load of mining dump truck (kg) | 62000 |
Maximum vehicle speed (km/h) | 49 |
Maximum gradeability of mining dump truck (%) | ≥37% |
Minimum turning diameter of mining dump truck (m) | ≤22 |
Minimum ground clearance of mining dump truck (mm) | ≥380 |
Approach angle of mining dump truck (°) | ≥30 |
departure angle of mining dump truck (°) | ≥45 |
Lift time of mining dump truck (s) | ≤25 |
Landing time of mining dump truck (s) | ≤22 |
Maximum angle inclination of mining dump truck (°) | ≤52 |
Engine model of mining dump truck | Cummins ISME385 30 |
Rated power of engine of mining dump truck (kw/hp) | 283/385 |
Rated speed of engine (rpm) | 1900/2100 |
Torque of mining dump truck (N.m) | 1835/1650 (1200~1400 rpm) |
Air intake way of mining dump truck | Three-level oil filter, combined type air filter and turbo charger |
Clutch of mining dump truck | Diaphragm spring 430 |
Front axle of mining dump truck (t) | Special axle for 13t-level enhanced type mining truck |
Middle and rear axles of mining dump truck (t) | Special axle for 25t-level enhanced type mining truck |
Front suspension of mining dump truck | Enhanced longitudinal-installed leaf spring, bi-directional telescopic shock absorber |
Rear suspension of mining dump truck | Enhanced type balanced suspension |
Cab of mining dump truck | Bias, turnover, suspended and anti-rollover cab |
Tire of mining dump truck | 14.00-24 24PR |
Service brake of mining dump truck | Dual-circuit brake |
Parking brake of mining dump truck | Air break breaking by spring energy storage chamber |
Auxiliary braking of mining dump truck | Jacobs engine brake |
Performance Characteristics of Mining Dump Truck
1.The wheel track of the whole mining dump truck is wider than that of three-axle heavy duty truck by over 18%. This improves the whole vehicle’s stability and makes the vehicle more applicable to long slope conditions in mines and off-road conditions. |
2.Due to strong bearing capacity, the density of the mining dump truck in the pit is reduced, and the traveling safety is also improved. |
3.The use of Cummins engine, Fast transmission and double reduction axles makes the starting more easy, makes the gradeability better which can reach over 37% and makes the vehicle more applicable to the road conditions in mines. |
4.The strict GJB quality assurance system, mass production and assembly line shall be followed to ensure quality and reliable performance. |
5.Cummins engine is equipped with Jacobs auxiliary brake, which can provide 85% of vehicle braking requirements, significantly reduce the brake wear and keep the brake cooling for standby purpose so as to ensure the maximum safety and help the driver obtain a higher average driving speed, thereby improving transport efficiency. |
6.The combination with framework-type enhanced cab can fully protect the safety of vehicle and driver in traveling. |
|
|
