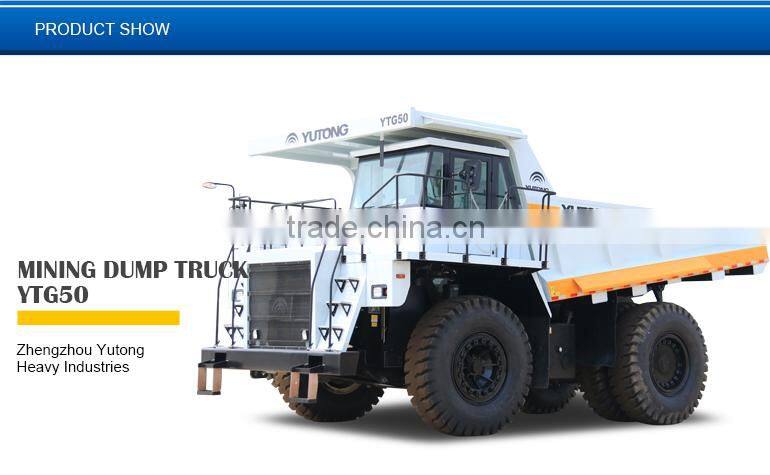

50 Ton off Road Mining Tipper Truck

Name: 50 Ton off Road Mining Tipper Truck
Brand: Yutong
Availability: InStock

FOB Price

US$ 1 - 900,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Drive Wheel	4x4	Capacity (Load)	41 - 50t
Horsepower	251 - 350hp	Condition	New
Transmission Type	Automatic	Emission Standard	Euro 3
Fuel Type	Diesel
Gross Vehicle Weight	37	Place of Origin	Henan, China
Brand Name	Yutong	Model Number	YTG50
Dimensions (L x W x H) (mm)	9030x4520x4556mm

Product Description

The brand concepts
of Full Care and Trust,
based on"customer-oriented
and employee-oriented"
management idea.

Being one of the 50
largest engineering
machinery manufact
urersand in China.

More than 50 years
of military industry
experience and
technology.

Yutong have successfully developed
a series of high value-added
products, such as rotary drilling
rig, longspiral drill rig,
crawler cranes, dynamic
compactor, and mining dump
truck, etc.

The Environmental Protection
covering foundation construction,
resources exploitation,
environmental protection
and other fields.

Overall dimensions (L x W X H)	9030×4520×4556mm
Wheelbase	4060mm
Front wheel distance	3340mm
Middle and rear wheel distance	2800mm
Loaded Horizontally	22m3
Piled Horizontally	28m3
Overall kerb weight	37595kg
Rated Load	45(50)t(US ton)
Max. speed	≥55km/h
Max. grade ability	≥35%
Min. turning diameter	≤19mm
Min. ground clearance	≥560mm
Approach angle/Departure angle	27°/53°
Max. inclination	50 °
Raising time	12s
Lowering time	13s

1. The electronic fuel injection engine of internationally leading level with three-point support of America Cummins, super strong dynamic force, big torque reserve, and turbocharging is employed and thus the structure becomes more reasonable, the performance more stable, and the power much stronger. It is with high reliability, great economic in fueling, and meets the state-II emission standard.
2. The transmission adopts America Allison power shift transmission which is simple in operation and with stable performance, so that the reliability of the transmission system is improved. TC682 hydraulic torque converter mounted on the transmission can prevent the transmission system from twisting vibration or impact, so that the failure rate has effectively decreased and the service life of the engine and transmission has been prolonged.
3. Accumulator is used by the system for emergency steering. In case of any failures of the machine, the accumulator will provide temporary compressive oil to stop the vehicle by the roadside to make the system safer and more reliable.

4. The implement hydraulic system adopts emergency descent function by
mounting float elements on control valve in order to prevent the oil cylinder
from impact load or the engine from failures during the transportation of
vehicles.
5. The brake system is under fully hydraulic control. Service brake is
realized by caliper disc brake; compared to the traditional pneumatic
control drum brake, it has bigger braking force and is more reliable.
6. The hydro-pneumatic suspension is adopted for the vehicle, so than the
driver feels comfortable during driving.
7. The lift cylinder is arranged outside of the frame so that the interior
space for maintenance becomes bigger. By means of 3D modeling, CAE
finite element analysis for the frame is carried out.
8. The complete hopper adopts V-shaped structure with a longitudinal
V-shaped bottom of crosswise groove-shape reinforcing ribs, large-section
horizontal side plate reinforced with reinforcing plate.
9. Centralized lubrication system of standard configuration has effectively
shortened the vehicle maintenance time.

DETAIL ONE:

The selection of the home-made reinforced axle has made the structure more reasonable and the quality more reliable.

DETAIL TWO:

Steering Hydraulic System adopts variable displacement piston pump; corresponding amount of oil will be supplied based on the load to meet the steering requirements for the purpose of oil saving.

DETAIL THREE:

The cab adopts the style of enhanced structure, i.e. framework with skin, and the strength meets the anti-turn requirements. The integrated instrument panel and the luxury and fine interior decoration have reflected the design concept to have the engineering machinery as comfortable as cars.

Zhengzhou Yutong Heavy Industries Co.,Ltd.(hereinafter referred to as"
Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.

Up to now, we have successfully developed a series of high value-added products, such as rotary drilling rig, long spiral drill rig, crawler cranes, dynamic compactor, and mining dump truck, etc. Currently, the Company covering foundation construction, resources exploitation, environmental protection and other fields.In overseas, the sales of high-tech and new, cutting-edge products represented by the multi-functional rotary drilling rig, new-generation oader and scraper is increasing rapidly, which has become a new highlight.

It possesses ISO9001:2000 Quality Management System Certification and ISO14001-2004 Environmental Management System Certification, etc.

ATTEND BUSINESS FORUM

LEADERS MET WITH ACCEPTANCE

MINING DUMP TRUCK MATCH

ENVIRONMENTAL AGREEMENT
AIGNED IN AUSTRIA

Inspect vehicles before sale

Laser welding

Examine the metalic
elements

SGS certification

Waterproof test

Packaging & Shipping

About the packing

There is no packing to the main machine, small parts and wear parts will be packed in box .

About the Shipping

We usually use roll-on-roll-off ship because the volume is too big to be put into a container.

About the delivery time

The delivery time depends on because the running mode of yutong group is MTO, unless that we have the products in stock.

FAQ

Can you give us a brief introduction to Yutong Company please?

We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.

How about the quality guarantee and after -sale service?

For quality guarate, we give one year guarantee, and with 24hours response principle for better service.

We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.

How about the payment terms?

We accept T/T, L/C, D/P, D/A,even L/G.
