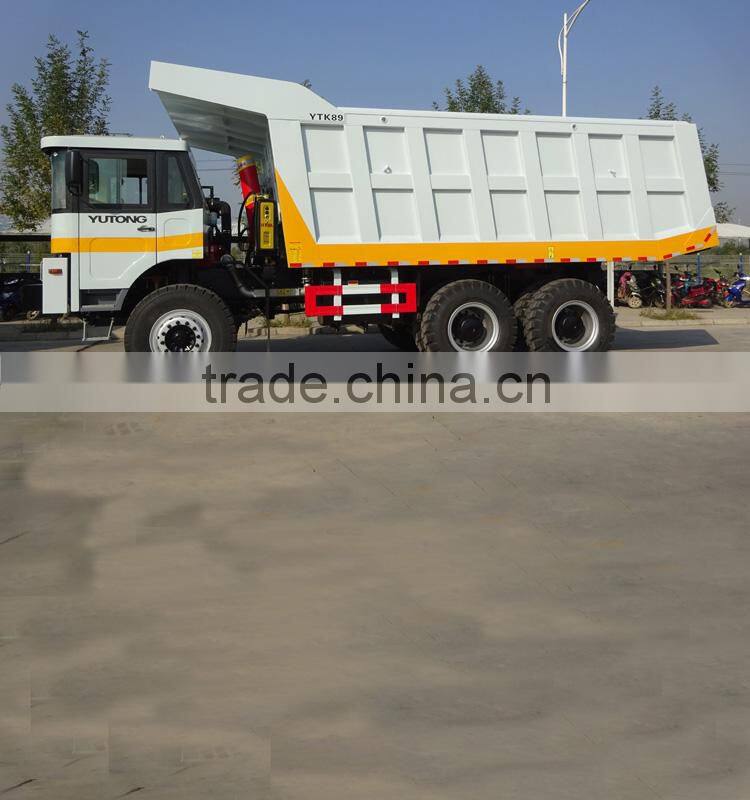

3 Axles 60 Ton Mining Dump Truck Dimensions
- 231 Unit / Units per Month
- Qingdao Port Tianjin port Lianyungang port Shanghai port
- T/T PayPal
Product Details
Drive Wheel: | 6x4 | Capacity (Load): | 51 - 60t | Horsepower: | 351 - 450hp |
Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 3 |
Fuel Type: | Diesel | Gross Vehicle Weight: | 29000 | ||
Place of Origin: | Henan, China | Brand Name: | YUTONG | Model Number: | YTK89 |
Dimensions (L x W x H) (mm): | 9175x3415x3930mm |
Product Description
3 Axles 60 Ton Mining Dump Truck Dimensions
Main technical parameter
Item | Parameter |
|
Overall Dimension (mm) | 9175×3415×3930 | |
Wheelbase (mm) | 3800/1550 | |
Wheel track of front wheel (mm) | 2710 | |
Wheel track of middle and rear wheels (mm) | 2500 | |
Capacity of standard compartment (m3) | 37 | |
Capacity of rock compartment (m3) | 34 | |
Kerb mass of entire vehicle (kg) | 29000 |
|
Allowed total mass with full load (kg) | 89000 | |
Maximum vehicle speed (km/h) | 47 | |
Maximum gradeability (%) | 30% | |
Maximum turning diameter (m) | ≤22 | |
Minimum ground clearance (m) | ≥375 | |
Approach angle (°) | ≥30° | |
departure angle (°) | ≥45° |
|
Lift time of lift system (s) | ≤25 | |
Landing time of lift system (s) | ≤22 | |
Maximum angle inclination of lift system (°) | ≤52 | |
Color | White | |
Engine model | Cummins ISME385 30 | |
Rated power of engine (kw/hp) | 283/385 | |
Rated power of engine (rpm) | 1900 |
|
Engine torque (N.m) | 1835(1200) | |
Air intake way of engine | Three-level oil filter, combined type air filter and turbo charger | |
Clutch | 430 mm diameter friction disk(Valeo cluth) | |
Transmission | 9JSD220 | |
Front axle (t) | Special axle for 16t-level enhanced type mining truck | |
Middle and rear axles (t) | Special axle for 30t-level enhanced type mining truck | |
Front suspension of suspension system | Enhanced longitudinal-installed leaf spring, bi-directional telescopic shock absorber |
|
Rear suspension of suspension system |
Enhanced type balanced suspension | |
Cab | Bias, turnover, suspended and anti-rollover cab | |
Tire | 14.00-25 36PR | |
Service brake | Dual-circuit brake | |
Parking brake | Air break breaking by spring energy storage chamber | |
Auxiliary braking | Energy exhaust brak |
project | parameter | |
WD12G420E211 | Rated power of engine (kw/hp) | 309/420 |
Rated power of engine (rpm) | 2200 | |
Engine torque (N.m) | 1750/(1500rpm) | |
Cummins ISME420 30 | Rated power of engine (kw/hp) | 309/420 |
Rated power of engine (rpm) | 1900 | |
Engine torque (N.m) | 2010/(1300rpm) | |
Clutch |
| 430 mm diameter |
Fuel tank | Volume in L | 500 |
Exhausting way |
Exhaus tingthrough muffler |
|
Tire | 14.00R25 |
|
Water tank of the wheel water spray system | Volume in L | 500 |
Else | JD211-4B Vehicle Fan |
|
Monitoring system |
| |
Hourmeter |
| |
Cold start device of engine |
| |
Rotary warning lamp added |
| |
Internet of Vehicle |
| |
Fuel tank and battery container protection |
1.The compartment, with an interior width of up to 3200 mm and a stowage volume of up to 43m3, can be used to support the filed operation of large-scale excavator. Single vehicle can load more materials, so the vehicle density in the mine can be reduced and the transport efficiency is greatly improved. 2.The outside width of the frame is 1200 mm and the wheel track of middle and rear wheels is 2500 mm; wide complete machine, large wheel track, low center of gravity and high stability make the vehicle run stably and safely in the mining areas. 3.The use of newly developed large-tonnage axles with high bearing capacity provides this vehicle with oversized bearing capacity; split type wheel structure makes the maintainability stronger; the use of newly-designed drum brake greatly improves the vehicle's braking torque and improves the vehicle's operating safety. 4.According to the working conditions of mines, large-section box-shaped welded rigid frame is designed in accordance with the engineering concepts, greatly improving the comprehensive strength of the frame in the aspect of bending resistance and torsion resistance. The main beam adopts high-strength steel which is specially used by crossbeam, as a result, its bearing capacity is large, impact resistance is strong and fatigue life is long. | |
5. The combination with special mining truck suspension and engineering vehicle axles that are designed according to the working conditions of mining areas makes the vehicle more applicable to the harsh mine environment. 6.The appearance modeling of the whole mining dump truck is well-designed. The appearance has modern design, which is sturdy and strong like mining machinery, also is harmonious and graceful like an automobile. 7.Mining dump truck perfectly combines the appearance style designs of engineering machineries and automobiles. In the cab, luxury and exquisite interior, streamlined instrument desk, combination instrument and environmentally friendly flame retardant interior materials create a comfortable operating environment, reflecting the design concept of manufacturing the construction machinery like a sedan. |
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |

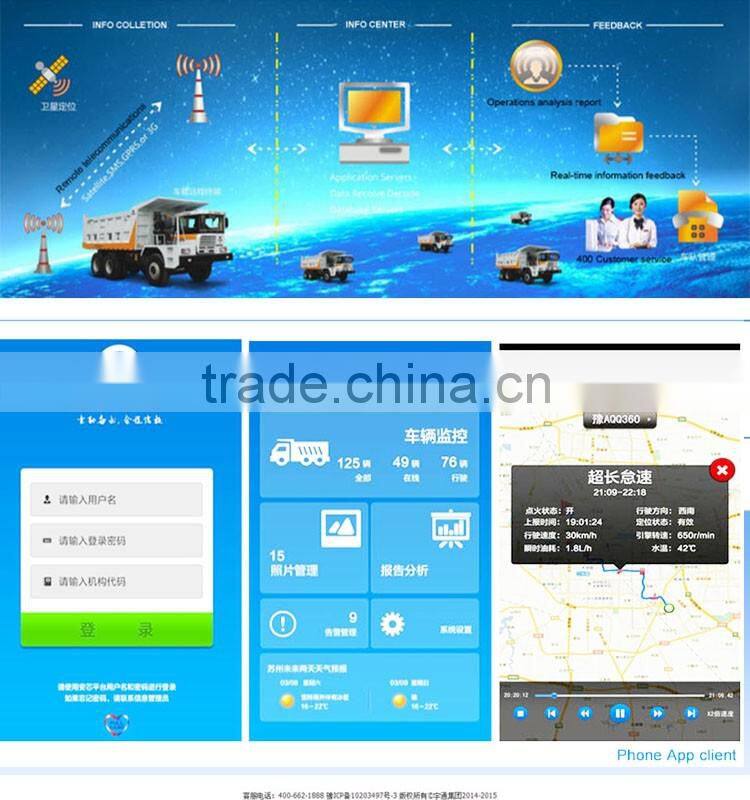

Intelligent management system from real-time monitoring of equipment and personnel management needs to solve two aspects, the use of remote fault diagnosis, maintenance reminders, and data analysis solution extends the application requirements. Real-time monitoring equipment provided by satellite positioning system location, track information, provide work attitude, fault alarm information through the controller, providing photos and video information by the video module, the job status provided through other ports, fuel tank (optional) information.
Driver information system through the realization of staff card, work log management, system permissions through the platform division. Through remote diagnosis, maintenance reminders, data storage and achieve an extension of value-added applications.
Users using a Web browser and mobile App for equipment and personnel to implement dynamic management. Service platform for different customers in different business requirements also analyzed output data and statistical reports and analysis reports. The methods of data in real-time, high accuracy, good visibility, the device dynamic management and in-depth data to provide a flexible and efficient platform for mining. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
