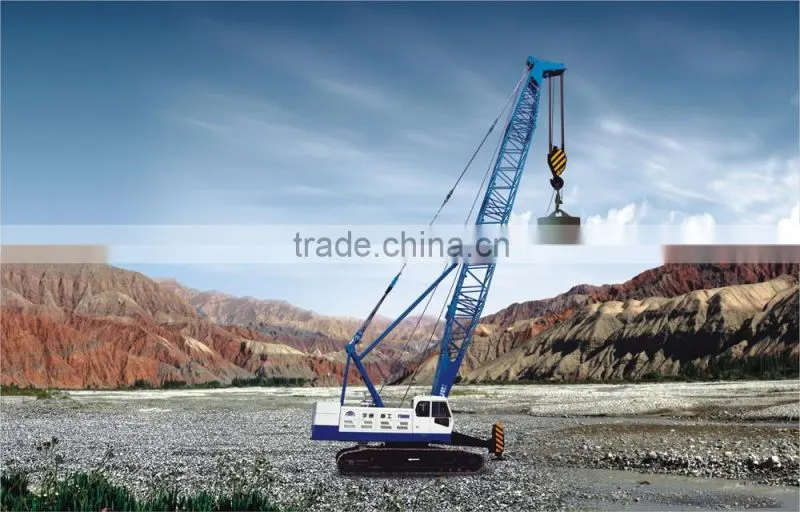

White 80t Hydraulic Crawler Piling Machine
- 30 Set / Sets per Month
- TIANJIN/DALIAN/SHANGHAI/QINGDAO
- T/T L/C D/P D/A Credit Card
- CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
- China Supplier Single-Arm Rack Floating Crane for Bulk Cargo
- Barge Mounted Crane for Bauxite Discharging Transfer From Vessel to Barge
- Port Grab Crane Coal Bauxite Sand Stone Unloading Crane
- Fixed Type Lattice Boom Port Crane Heavy Duty
- Lattice Boom Port Fixed Crane Widely Usage with Customized Color
Product Details
Condition: | New | Rated Loading Capacity: | 80 | Max. Lifting Load: | 80 |
Place of Origin: | Henan, China | Brand Name: | YUTONG | Model Number: | YTQU80 |
Warranty: | Twelve months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
No. | The main technique parameter | unit | YTQU80 |
1 | Maximum weight lifted | t | 80 |
2 | Maximum lifting moment | t·m | 80×4.3 |
3 | Length of the main jib | m | 13~58 |
4 | Auxiliary arm length | m | 9~18 |
5 | Maximum length of main boom + auxiliary arm | m | 49+18 |
6 | Variable amplitude angle of the main arm | ° | 30~80 |
7 | Speed rope usually roll up and down | m/min | 0~80 |
8 | Speed auxiliary rope roll up and down | m/min | 0~80 |
9 | Speed rope lift arm up and down | m/min | 0~47 |
10 | Rotation speed | r/min | 2.8 |
11 | Displacement read speed | km/h | 0~1.1 |
12 | Scalability (with basic arm, the driver's cab door gives back) | % | 30 |
13 | The nominal / speed rotational power produced motor | kw/r/min | 194kw@2200rpm |
14 | Engine model |
| Cummins 6CTA8.3-C280 |
15 | Quality of whole machine (with basic arm, hook up lifting) | t | 84 |
16 | Pressure ratio grounding track (with basic arm) | Mpa | 0.08 |
17 | Load mass | t | 25 |
18 | Crawler track distance | mm | 3390~4900 |
19 | Wheel track distance | mm | 5470 |
20 | Strap width | mm | 850 |
21 | Maximum weight of transportation unit | t | 30.2 |
22 | Maximum dimensions of transportation unit (length * width * height) | mm | 6785*3300*3335 |
Features yields crawler crane type liquid pressure YTQU80
1. Cummins diesel engine with excellent performance meets the National Emission Standard II, which provides the reliable, economic and environmental dynamic origin.
2. The frame structure is collapsible extensible and stretchable support, which enhances stability of the chassis, while not affecting the whole transportation. You can directly control the caterpillar from the driver's cabin, and the extent and progress can be made simultaneously.
3. The hidden planet reducer gear and engine torque large, has great driving force, large-scale capacity, and high reliability.
4. Has the general súcula left free to function at high speed, double brake applied, which can greatly increase the work efficiency and ensure the reliability of brake.
5. The structure of variable amplitude súcula installed with ratchet lock (can also be added as needed súcula overall user), ensuring reliable and secure arm positioning and charging avoiding accidents.
6. The weight bearing arm formed by welding materials of rigid structural tube, the head of the pulley arm applies nylon, which has good rigidity, low weight and high bearing capacity.
7. The control system of liquid cargo pressure sensor controlled by the guide has good yields of small movements with high accuracy and easy operation.
8. structure installed sliding freely turn around, whose operation is stable without impact.
9. installed reliable torque limiter returns to monitor the working status in real time. And it has installed safety devices such as device lock rotating back panel, the rear protective device against tilting arm, the roll protector too, etc., to ensure reliable and safe working.
10. The electronic control instrument performs data collection engine and monitors the status of work, and you can choose to install wind velocity meter, the leveling and megaphone to ensure work safety.
11. The driver's cab streamline large arc combined buffer has wide vision and beautiful image. Damping chairs, fan and heating, MP3 player, which greatly increases the ease of operation are also installed.
12. The general structure and the auxiliary súcula apply modular design offering several options according to the user demands.
13. The counterweight is hanging, it is more suitable for installed and removed, which favors the transport.
