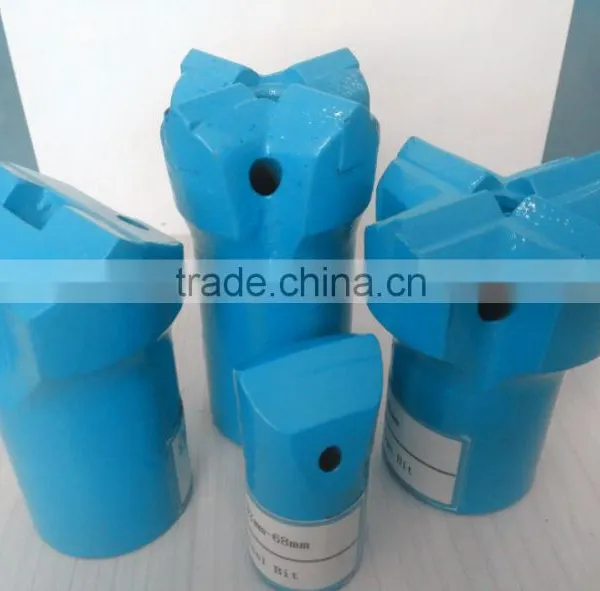

7 Degrees Tungsten Carbide Tapered Chisel Bit for Rock Mining

7 Degrees Tungsten Carbide Tapered Chisel Bit for Rock Mining thumbnail-1
7 Degrees Tungsten Carbide Tapered Chisel Bit for Rock Mining thumbnail-2
7 Degrees Tungsten Carbide Tapered Chisel Bit for Rock Mining photo-1
7 Degrees Tungsten Carbide Tapered Chisel Bit for Rock Mining photo-2
US$ 5 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Material:
Other, Tungsten Carbide, Tungsten Carbide
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Material Other, Tungsten Carbide, Tungsten Carbide
Use Masonry Drilling
Type Other, 7° Tapered Chisel Bit



Small Hole Drlling Tools / Tapered Chisel Bit / Mining Drill Bit



Product Description

MirocTapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



Product Technical Reference

<

Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Tip Size (W x H, mm) Weight (kg)
4148300075 C26-7D-22, 7° Taper Chisel Bit 26 1    10 x 7 0.17
4148300076 C28-7D-22, 7° Taper Chisel Bit 28 1 1/9 10 x 7 0.18
4148300077 C30-7D-22-1, 7° Taper Chisel Bit 30 1 1/6 13.5 x 8 0.22
4148300078 C30-7D-22-2, 7° Taper Chisel Bit 30 1 1/6 13.5 x 8 0.22
4148300079 C32-7D-22-1, 7° Taper Chisel Bit 32 1 1/4 13.5 x 8 0.24
4148300080 C32-7D-22-2, 7° Taper Chisel Bit 32 1 1/4 13.5 x 8 0.24
4148300081 C34-7D-22-1, 7° Taper Chisel Bit 34 1 1/3 13.5 x 8 0.27
4148300082 C34-7D-22-2, 7° Taper Chisel Bit 34 1 1/3 13.5 x 8 0.27
4148300083 C36-7D-22-1, 7° Taper Chisel Bit 36 1 3/7 13.5 x 8 0.3
4148300084 C36-7D-22-2, 7° Taper Chisel Bit 36 1 3/7 13.5 x 8 0.3
4148300085 C38-7D-23-1, 7° Taper Chisel Bit 38 1 1/2 13.5 x 8 0.33
4148300086 C38-7D-23-2, 7° Taper Chisel Bit 38 1 1/2 13.5 x 8 0.33
4148300087 C38-7D-23-3, 7° Taper Chisel Bit 38 1 1/2 15 x 9 0.33
4148300088 C38-7D-23-4, 7° Taper Chisel Bit 38 1 1/2 15 x 9 0.33
4148300089 C40-7D-23-1, 7° Taper Chisel Bit 40 1 4/7 13.5 x 9.2 0.38
4148300090 C40-7D-23-2, 7° Taper Chisel Bit 40 1 4/7 13.5 x 9.2 0.38
4148300091 C40-7D-23-3, 7° Taper Chisel Bit 40 1 4/7 13.5 x 9.2 0.38
4148300092 C40-7D-23-4, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300093 C40-7D-23-5, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300094 C40-7D-23-6, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300095 C40-7D-23-7, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300096 C40-7D-23-8, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300097 C42-7D-23-1, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300098 C42-7D-23-2, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300099 C42-7D-23-3, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300100 C42-7D-23-4, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300101 C42-7D-23-5, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300102 C42-7D-23-6, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300103 C42-7D-23-7, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300104 C42-7D-23-8, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300105 C43-7D-23-1, 7° Taper Chisel Bit 43 1 2/3 13.5 x 9.2 0.42
4148300106 C43-7D-23-2, 7° Taper Chisel Bit 43 1 2/3 13.5 x 9.2 0.42
4148300107 C43-7D-23-3, 7° Taper Chisel Bit 43 1 2/3 15 x 9.8 0.42
4148300108 C43-7D-23-4, 7° Taper Chisel Bit 43 1 2/3 15 x 9.8 0.42



 Applications

• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry



Our service

• Competitive factory price

• Delivery on time

• Excellent after service



Our Company

KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



Our portfolio includes:
Consumables used in the mining and construction industries
Equipment used in the mining and construction industries
Spare parts used for the equipment we sell for the mining and construction industries
Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)
