Chisel Bit

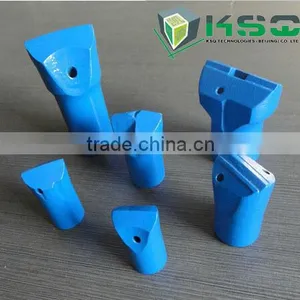

Chisel Bit thumbnail-1
Chisel Bit thumbnail-2
Chisel Bit thumbnail-3
Chisel Bit thumbnail-4
Chisel Bit thumbnail-5
Chisel Bit photo-1

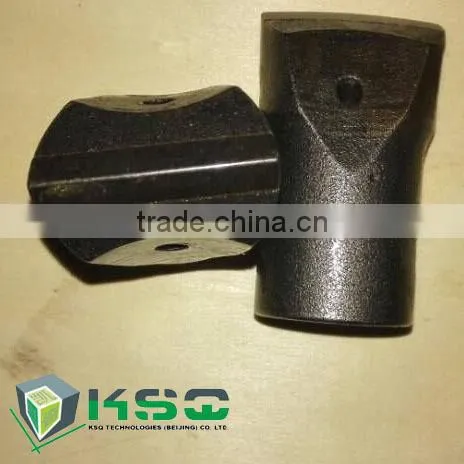

Chisel Bit photo-2

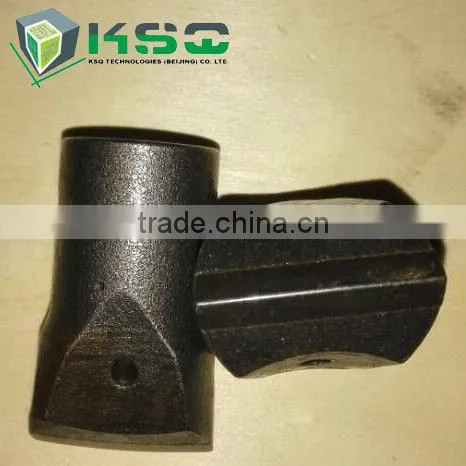

Chisel Bit photo-3
Chisel Bit photo-4
Chisel Bit photo-5
US$ 5 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
Taper chisel bit
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port Huangpu Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number Taper chisel bit
Type Other, Drill Bit, chisel bit, button bit, cross bit
Machine Type Drilling Tool
Certification API
Material Other, Carbide, High quality carbide and high quality steel
Processing Type Forging
Use Other, Mining, quarrying, tunneling



Product Description

 Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.



                                Taper drill bit- Taper 7° Taper, 11°, Taper 12°

Product Name:

mining tungsten carbides  taper button rock drill tool bit

Types

Tapered chisel bits, Tapered cross bits, Tapered button bits

Application::

Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

Feature:

Tapered drill bits connect tapered drill steel of rock drill for drilling holes

Material:

High quality carbide and high quality steel

MOQ:

No requirement for testing and trial order

We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.

Types of drill bits

Diameter          (mm)

Taper Angle (Degree)

Length       (mm)

Weight (kg)

Tapered chisel bits

20/22/28/30/32/34/36/38/40

4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree

50/55/60/71/80

0.15 - 0.45

Tapered cross bits

24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55

50/55/60/71/80

0.18 - 0.7

Tapered button bits

28/29/30/32/33/34/35/36/37/38/40/41/42/45

50/55/60/71/80

0.2 - 0.5

drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret




 HS Code: 82071990

Specification:

                                            TAPERED ROCK DRILLING TOOLS - 7° Chisel Bit





Bit Dia. For class of rock Buttons Taper Weight Part Number
mm inch HxW kg
26 1    10~14 10x7 7º 0.17 4148300075
28 1 1/9 10~14 10x7 7º 0.18 4148300076
30 1 1/6 8~12 13.5x8 7º 0.22 4148300077
30 1 1/6 10~14 13.5x8 7º 0.22 4148300078
32 1 1/4 8~12 13.5x8 7º 0.24 4148300079
32 1 1/4 10~14 13.5x8 7º 0.24 4148300080
34 1 1/3 8~12 13.5x8 7º 0.27 4148300081
34 1 1/3 10~14 13.5x8 7º 0.27 4148300082
36 1 3/7 8~12 13.5x8 7º 0.3 4148300083
36 1 3/7 10~14 13.5 x 8 7º 0.3 4148300084
38 1 1/2 8~12 13.5x8 7º 0.33 4148300085
38 1 1/2 10~14 13.5x8 7º 0.33 4148300086
38 1 1/2 8~12 15x9 7º 0.33 4148300087
38 1 1/2 10~14 15x9 7º 0.33 4148300088
40 1 4/7 8~12 13.5x9.2 7º 0.38 4148300089
40 1 4/7 10~14 13.5x9.2 7º 0.38 4148300090
40 1 4/7 14~16 13.5x9.2 7º 0.38 4148300091
40 1 4/7 16~18 15x9.8 7º 0.38 4148300092
40 1 4/7 8~12 15 x 9.8 7º 0.38 4148300093
40 1 4/7 10~14 15x9.8 7º 0.38 4148300094
40 1 4/7 14~16 15x9.8 7º 0.38 4148300095
40 1 4/7 16~18 15x9.8 7º 0.38 4148300096
42 1 2/3 8~12 13.5x9.2 7º 0.41 4148300097
42 1 2/3 10~14 13.5x9.2 7º 0.41 4148300098
42 1 2/3 14~16 13.5x9.2 7º 0.41 4148300099
42 1 2/3 16~18 13.5x9.2 7º 0.41 4148300100
42 1 2/3 8~12 15x9.8 7º 0.41 4148300101
42 1 2/3 10~14 15 x 9.8 7º 0.41 4148300102
42 1 2/3 10~14 15x9.8 7º 0.41 4148300103
42 1 2/3 16~18 15x9.8 7º 0.41 4148300104
43 1 2/3 8~12 13.5x9.2 7º 0.42 4148300105
43 1 2/3 10~14 13.5x9.2 7º 0.42 4148300106
43 1 2/3 8~12 15x9.8 7º 0.42 4148300107
43 1 2/3 10~14 15x9.8 7º 0.42 4148300108









Product Pictures:

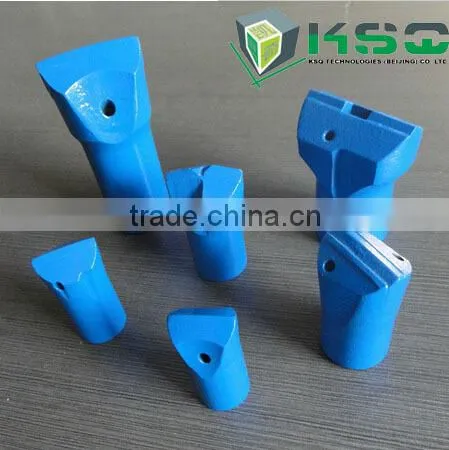

 chisel bit



 chisel bit

FAQ

Order information:



Drill bit type+ Taper degree + Bit diameter



 (1) Type: Chisel bit, Cross Bit, Button Bit ( long skirt and short skirt)

 (2) Taper degree: 4, 6, 7, 11, 12

 (3) Bit diameter: 26mm - 43mm( Can design and manufacture as your special requirements)



Packaging & Shipping



  1. Carton or wooden box

 2. Package pictures

chisel bit



Our Services

 Main rock drilling tools:



Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel, Shank H19 x 108mm and H22 108mm.


Tapered Rock Drill Tools - chisel bit,  cross bit, button bit, drill rod of taper 7 degree, 11 degree, 12 degree.


Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod,

MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


Shank Adapters (Striking Bars) - equivalent to Atlas Copco, Sandvik, Furukawa, Gardner Genver, Ingersoll Rand etc.


Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)



Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
