Home > Manufacturing & Processing Machinery > Crane > Other Cranes > YUTONG 55Ton Professional And Efficient Crawler Crane

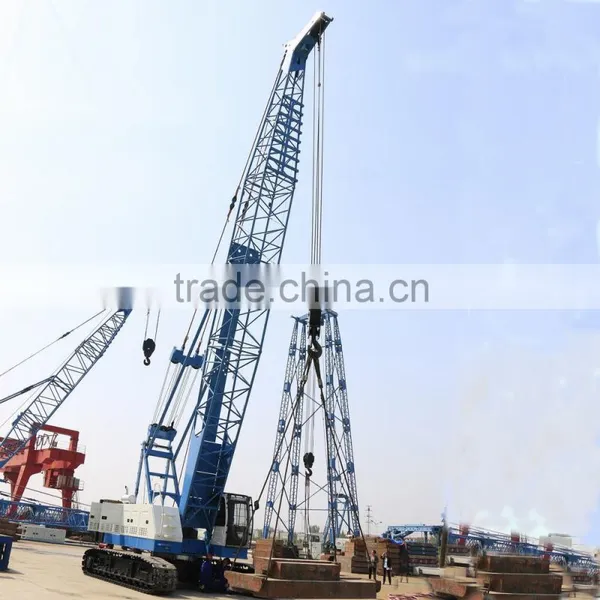

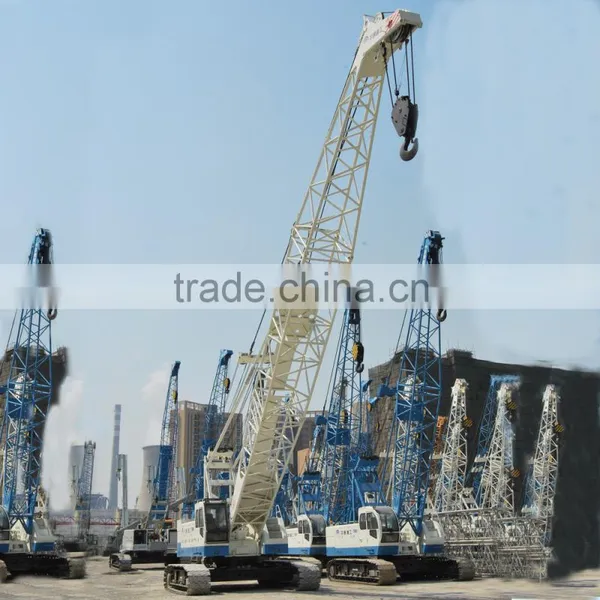

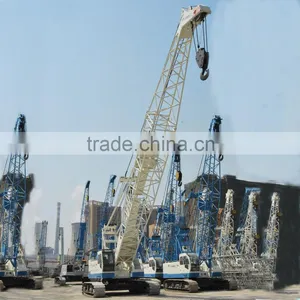

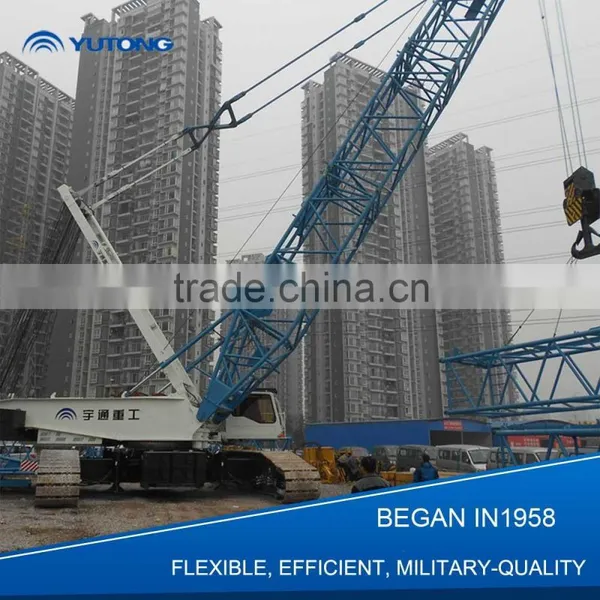

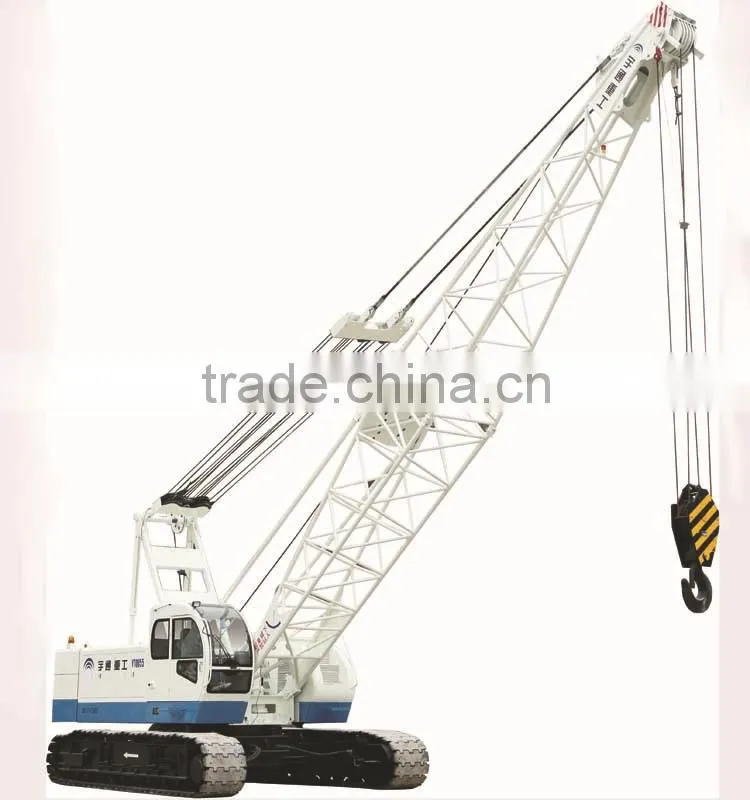

YUTONG 55Ton Professional And Efficient Crawler Crane
US$ 150,000 - 200,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Rated Loading Capacity:
55t
Rated Lifting Moment:
209KN*M
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
55 Ton YUTONG Professional And Efficient Crawler Crane PriceUS$ 150,000 - 200,000MOQ: 1 Unit -
China Hot Sale Military Quality 55 Ton Crawler CraneUS$ 153,000 - 263,620MOQ: 1 Unit
-
125 Ton YUTONG Efficient And Military Quality Crawler Crane PriceUS$ 450,000 - 600,000MOQ: 1 Unit
-
YUTONG Professional And Hoisting Capacity Big 80ton Hydraulic Crawler CraneUS$ 290,000 - 350,000MOQ: 1 Unit
-
70 Ton YUTONG Efficient And Military Quality Construction Crawler Crane PriceUS$ 250,000 - 300,000MOQ: 1 Unit
Condition
New
Rated Loading Capacity
55t
Rated Lifting Moment
209KN*M
Max. Lifting Load
55t
Max. Lifting Height
58.25m
Span
30-80(°)
Place of Origin
Henan, China
Brand Name
YUTONG
Model Number
YTQU55B
Certification
ISO
Warranty
12months/2000hours
After-sales Service Provided
Engineers available to service machinery overseas
YUTONG 55Ton Professional And Efficient Crawler Crane
Product Description

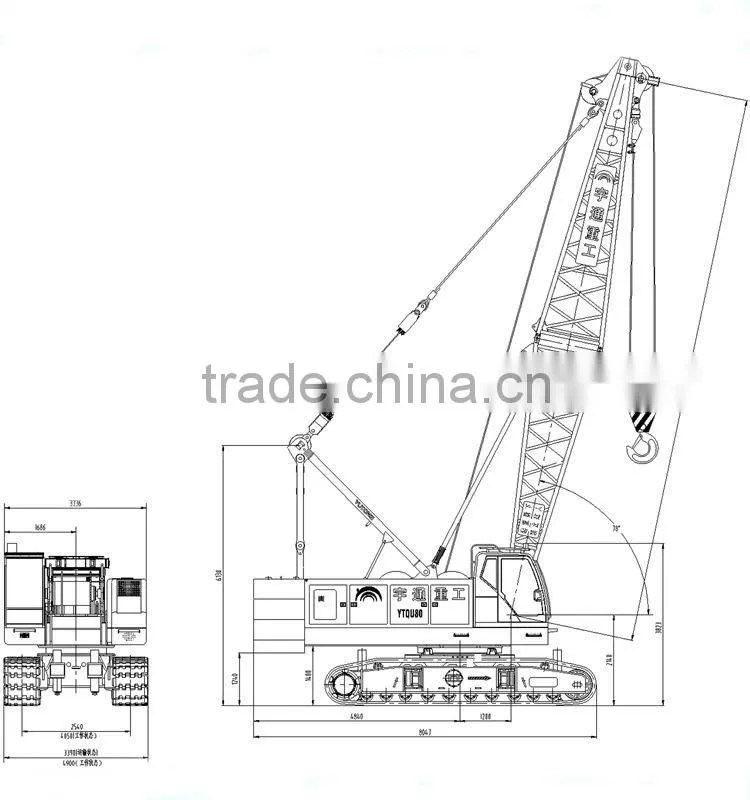

Main Technical Parameters of YTQU55B Crawler Crane
Main Technical Parameters of Crawler Crane |
Unit |
YTQU55B |
|
Maximum hoisting capacity of crawler crane |
t |
55 |
|
Maximum hoisting torque of crawler crane |
t·m |
55×3.8 |
Length of main arm of crawler crane |
m |
13~37 (52m is optional) |
Length of auxiliary arm of crawler crane |
m |
6.10~15.25 |
Total maximum length of main arm and auxiliary arm |
m |
43+15.25 |
Luffing angle of main arm of crawler crane |
° |
30-80 |
Rope lifting and lowering speed of main winch of crawler crane |
m/min |
0~110 |
Rope lifting and lowering speed of auxiliary winch of crawler crane |
m/min |
0~70 |
Rope lifting and lowering speed of luffing winch of crawler crane |
m/min |
0~65 |
Slewing speed of crawler crane |
r/min |
0~2.2 |
Travelling speed of crawler crane |
km/h |
0~1.3 |
Gradeability (with basic arm and keep the cab rearward) |
% |
40 |
Engine rated output power/rotation speed of crawler crane |
kw/r/min |
132kW/2000rpm |
Model of engine of crawler crane |
|
Cummins 6BTAA5.9-C180 |
Total weight (with basic arm and largest hoisting hook) |
t |
55 |
Ground pressure of crawler (with basic arm) |
Mpa |
0.069 |
Counterweight mass of crawler crane |
t |
17.5 |
Crawler gauge of crawler crane |
mm |
3360(4520) |
Wheel track of crawler of crawler crane |
mm |
4890 |
Width of crawler of crawler crane |
mm |
760 |
Maximum transportation weight for a single piece |
t |
32 |
Maximum transportation dimensions for a single piece (length X width X height) |
mm |
7200×3360×3360 |
Performance
|
|
|

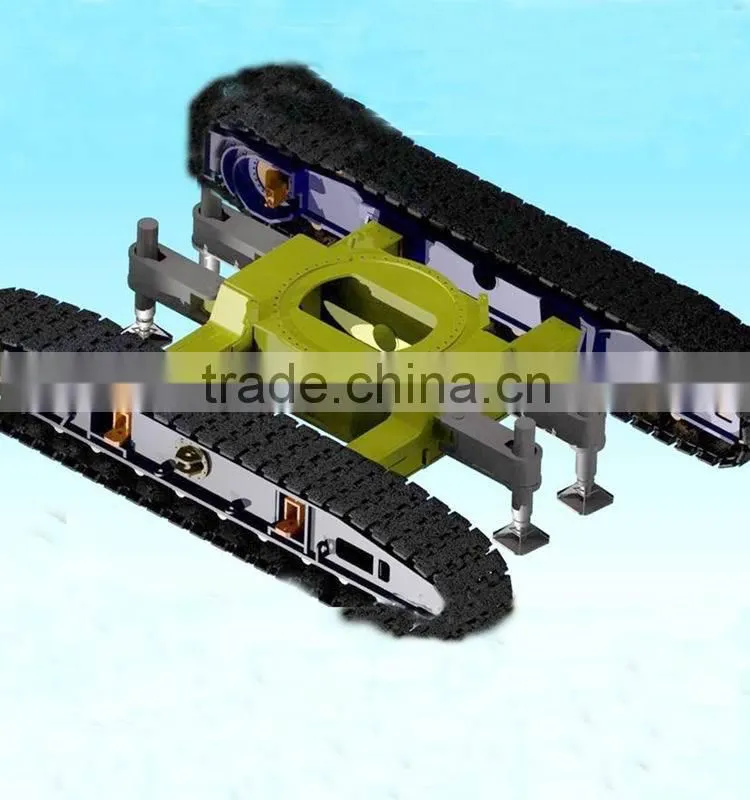

1. YTQU55B crawler crane adopts a high performance Cummins diesel engine with engine power of 175 kw. Due to the reasonably-matched power, it provides a reliable, economical and environment-friendly and high efficient power source. 2. The retractable chassis structure of YTQU55B crawler crane has an extended folding bracket to improve the stability of chassis and at the same time not to influence overall transportation. The extension and retraction of crawler can be directly controlled in the cab, and the extension and retraction can be done simultaneously with the machine walking. Its width during transportation period reaches 3360 mm and its width during working period reaches 4520 mm, so the stability of whole vehicle is good. The seat hole has been earmarked for connecting casing oscillator. |
|
|
3. The rotary table of the upper part, with high structural strength, adopts modular design and has a independent installation place reserve for hydraulic oil radiator. Standard connecting seats for pile frame are provided in front of the left and right platforms. |
4. The derricking winch mechanism of YTQU55B crawler crane which is equipped with ratchet locking device guarantees the safe and reliable positioning of boom. 5. Each arm rest of the boom that is formed by welding of high strength structural pipe has four suspension points, which are easy to install. The boom head adopts nylon pulley which has a good stiffness, light weight, and high carrying capacity. 6. The quality of hydraulic system of YTQU55B crawler crane is stable and reliable. The pilot controlled and load sensing hydraulic control system has high micro-motion performance, high accuracy, and convenient and agile operating performance. 7. The swing mechanism of YTQU55B crawler crane that has a controllable free slipping mechanism can be controlled stably without impact. 8. YTQU55B crawler crane is equipped with safety devices such as rotary table swing locking device, boom anti-overturn device, and winch over-rolling protection device to ensure the crane can work safely and reliably |
Our Services
Service after sale is based on the principle of
service. We will offer the “12380”service:
service. We will offer the “12380”service:
1: After receiving the customer mobile, we will help
customer solve problem through removing the
resources of YUTONG service and reply the customer
clearly in one hours;
2: To improve the service quality all the time, in 2
working days of the end of on-sit service, we will pay
a return visit about the satisfaction of after sale
service;
3: To comprehensive systematically and
professionally maintenance and repair for the
customer product, we will have 3 times On-Site
Inspection forwardly in warranty period;
8:The service engineer will solve problem in 8 hours
after getting to on-sit. If the problem is not solve ,the
service engineer can not leave the on-sit;
0: To eliminate customer worries, from receiving
order to product scrapping, YUTONG will provide
full reliance,seamless docking and service in the
period of product using.
