Atlas Copco 3038 , Furukawa HD190 Shank Adapter R38 / T38 for Rock Drilling Machine
US$ 100 - 500
/ Piece
1 Piece(Min. Order)
- FOB BeiJIng or TianJin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Cannon CH - 32 , Gardner Denver 93 , Furukawa HD 609 R32 / R38 Shank Adapters
-
Ingersoll Rand YH 60A Shank Rods for Rock Drilling Machines
-
Atlas cop1838 shank adapter / striking bars for rock drilling manchines
-
Rock drilling manchines parts Boart , Bohler , Cannon , Furukawa shank adapters
-
7 degrees Tapered Chisel Drill Bit for Rock Mining
-
7 degrees Tapered Oblique Chipways Chisel Bit
Product Details
| Place of Origin | Shandong, China | Brand Name | Miroc | |
| Model Number | R32,R38,T38,T45,T51 | Type | Drill Shank | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Other, Carbide, YK05 | Processing Type | Forging | |
| Use | Other, tunneling, mining,quarrying,construction, Coal mining |
Product Description

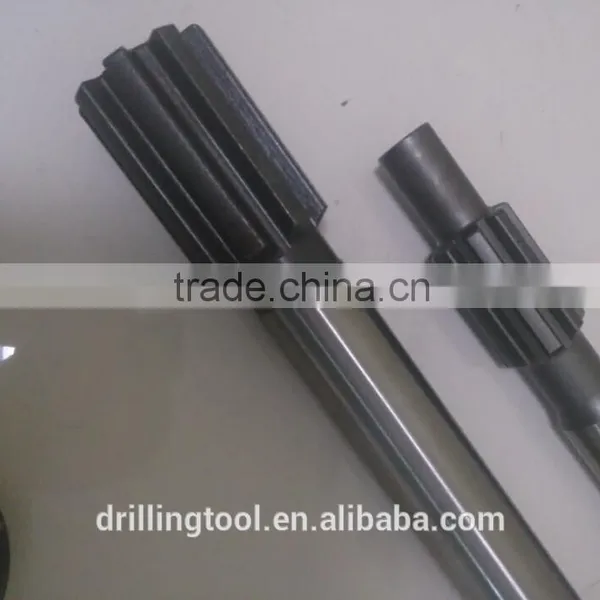

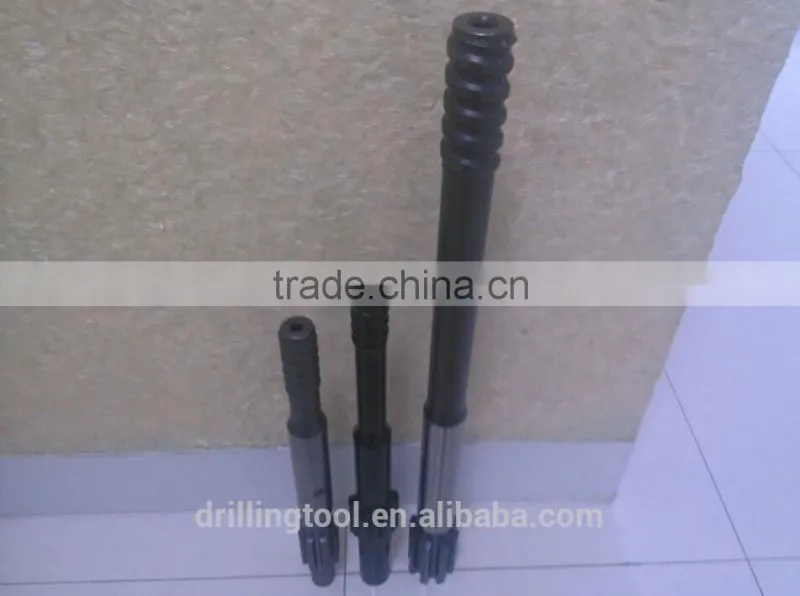

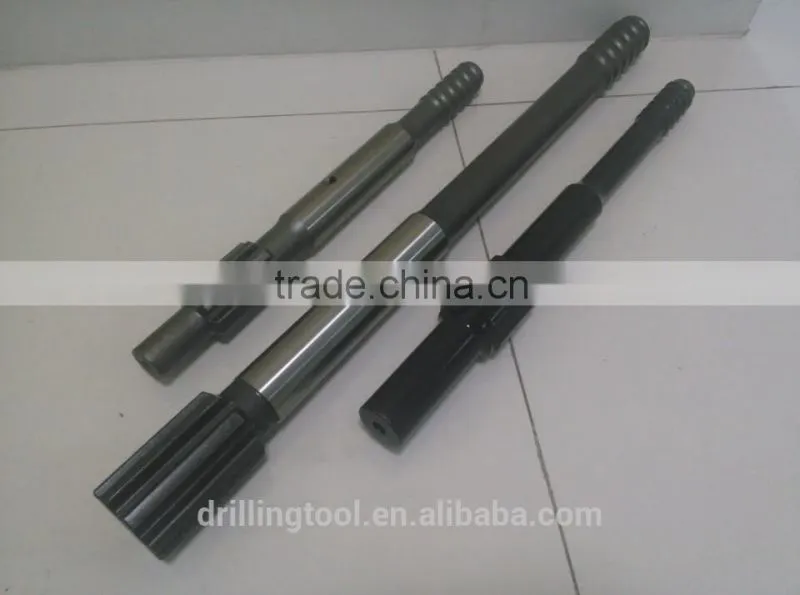

In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Applications
• Underground mining
• Tunneling,quarrying
Specification of shank adapter
| BBC 54, BBC 120 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R32 | 380 | 38 | 9-11 |
| R38 | 390 | 38 | 9-11 |
| T38 | 390 | 38 | 9-11 |
| BBE 57 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R38 | 447 | 45 | 14.30 |
| T38 | 540 | 45 | 14.30 |
| T45 | 540 | 45 | 14.30 |
| Boart HD 155 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R32 | 580 | 55 | - |
| T38 | 580 | 55 | - |
| Furukawa HD 609 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| T38 | 690 | 450 | - |
| T45 | 690 | 450 | - |
