Home > Products > Shank Adapter > Cannon CH - 32 , Gardner Denver 93 , Furukawa HD 609 R32 / R38 Shank Adapters

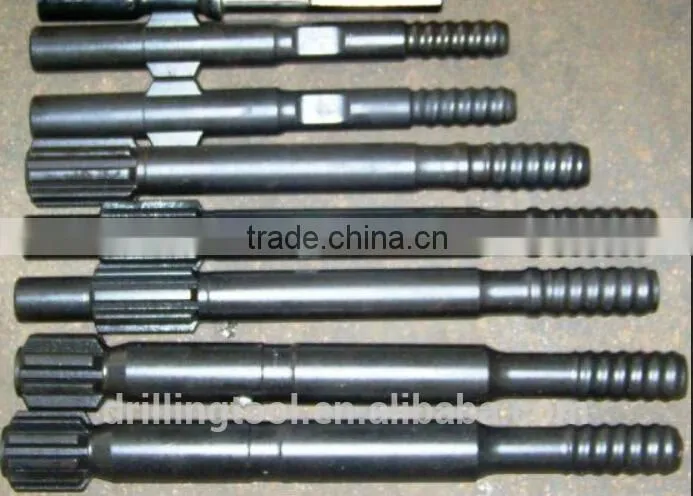

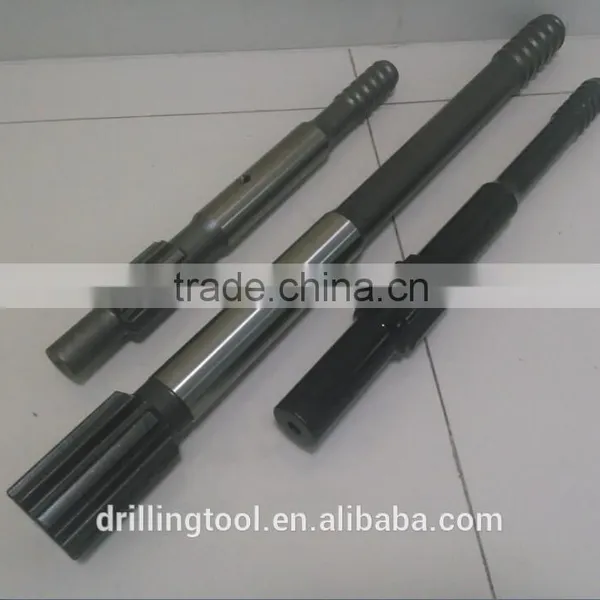

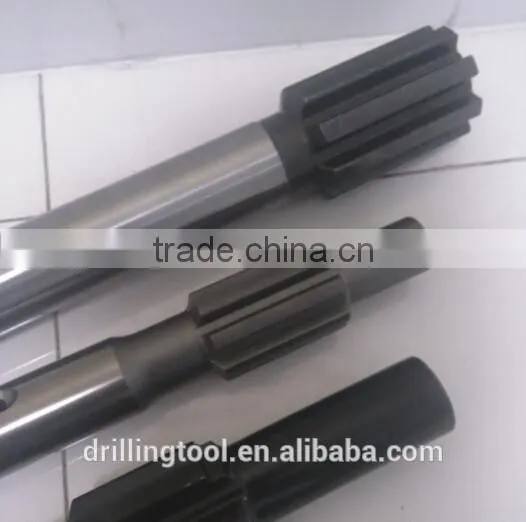

Cannon CH - 32 , Gardner Denver 93 , Furukawa HD 609 R32 / R38 Shank Adapters
USD $100 - $500
/ Piece
1 Piece(Min.Order)
- 3000 Piece / Pieces per Month
- FOB BeiJIng or TianJin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
API-7-1 Standard single cone drill bit
-
6 7 11 12 degree Diameter 32mm Taper Knock off drill bit
-
Oil Well Api Oilfield Fishing Tool Overshot Grapple Assembly/Oil Well Magnetic Fishing Head/Cable Righting Fishing Head
-
Drop Shipping API Oilfield Releasing Overshot 4 11/16" Oil Fishing Tools LT119
-
API compliant fishing tool overshot for oil field downhole work
-
Oil Well fishing tool sucker rod overshot/circulating overshots
Product Details
| Place of Origin: | Shandong, China | Brand Name: | Miroc | Model Number: | R32,R38,T38,T45,T51 |
| Type: | Drill Shank | Machine Type: | Other, Drilling Equipment, Drilling Tools | Certification: | API |
| Material: | Other, Carbide, YK05 | Processing Type: | Forging | Use: | Other, tunneling, mining,quarrying,construction |
Product Description
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Applications
• Underground mining
• Tunneling,quarrying
Specification of shank adapter
| BBC 54, BBC 120 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R32 | 380 | 38 | 9-11 |
| R38 | 390 | 38 | 9-11 |
| T38 | 390 | 38 | 9-11 |
| BBE 57 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R38 | 447 | 45 | 14.30 |
| T38 | 540 | 45 | 14.30 |
| T45 | 540 | 45 | 14.30 |
| Boart HD 155 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R32 | 580 | 55 | - |
| T38 | 580 | 55 | - |
| Furukawa HD 609 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| T38 | 690 | 450 | - |
| T45 | 690 | 450 | - |
