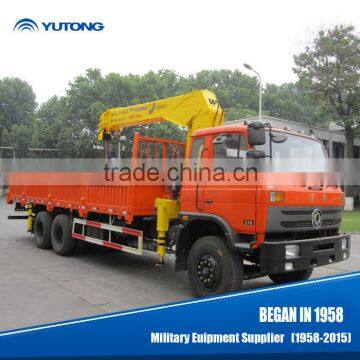

15 m Hoisting Height 10 Ton Truck Loader Cranes
Main Technical Parameters
Declared external dimension (mm) |
11350×2500×3820 |
Actual external dimension (mm) |
11350×2500×3820 |
Chassis model |
EQ5250JSQFJ |
Size of compartment |
7700×2300×550 |
Curb weight of complete truck(kg) |
Actual: 14840 (Declared: 14520) |
Rated load (Kg) |
9485 |
Maximum vehicle speed (km/h) |
90 |
Wheelbase (mm) |
2150+4850 |
Front suspension / rear suspension (mm) |
12503100 |
Approach angle/ departure angle(°) |
34/10 |
Wheel track of front wheel (mm) |
1940/1940 |
Wheel track of rear wheel (mm) |
1860 |
Crane model |
SQ10SA3 |

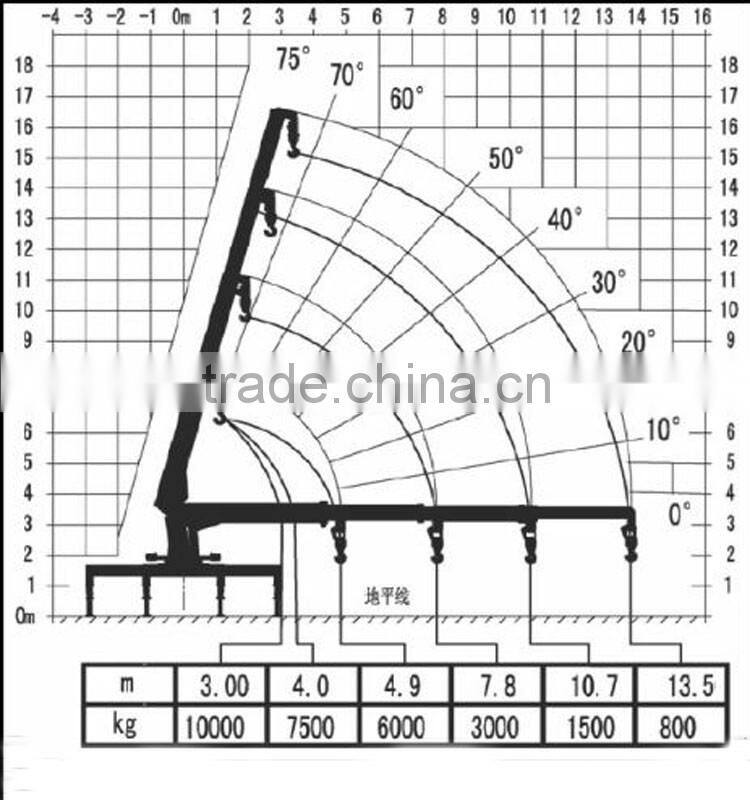

Maximum hoisting load (kg) |
10000 |
Maximum working range (m) |
13.6 |
Maximum hoisting height (m) |
15 |
Engine model |
YC6J190-33 |
Rated power of engine (kw/hp) |
140/190 |
Drive type |
6×2 Rear-axle drive |
Rated speed of engine (rpm) |
2500 |
Maximum torque of engine (N.m) |
630 |
Air intake way |
Supercharging inter-cooling |
Clutch |
Single-sheet dry type, diaphragm spring |
Transmission |
DF6S900 |
Front axle |
30NS17J-00005 |
Rear axle |
24NL-00005 |
Front suspension |
Leaf spring |
Rear suspension |
Leaf spring |
Cab |
Cab-over-engine, equipped with sleeping berth, turnover cab |
Tire |
9.00-20-16,10.00-20-16 |
Service brake |
Dual-circuit air brake |
Parking brake |
Air brake braking by spring energy storage chamber |
Structural form of boom |
Telescopic boom |
The sectional number of boom |
4 |
Span of supporting leg (m) |
5.75 |
Rotating range (º) |
360° full-rotating |
|
|
| 1.Hexagonal boom technology provides great centering performance and high flexural strength; the complete machine features high strength and low weight; the complete machine is made of high-strength special steel, greatly increasing the hoisting capacity. |
| 2. The design of 360 ° full-rotating facilitates the usage and maximizes the working efficiency. |
| 3. Truck with crane is easy to operate. Operating levers are installed at both sides of the crane frame, in order to facilitate operation by users at different sides. On each operating lever, visualized marks are posted for easy operation. |
| 4. Hydraulic system can be interlocked when the operator gets on and off the crane, in order to avoid misoperation and ensure safe and reliable operation. |
|
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
|
|
|
|
|
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
