Coinfy EL12D Electric Tilt Table

Name: Coinfy EL12D Electric Tilt Table
Brand: Coinfy-Electric Tilt Table
SKU: 119080637
Availability: InStock

Huangshan Jinfu Medical Equipment Co., Ltd.

US$ 600 - 800 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Coinfy-Electric Tilt Table

Model Number:

EL12D-Electric Tilt Table

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai.China-Electric Tilt Table

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Coinfy-Electric Tilt Table

Model Number EL12D-Electric Tilt Table

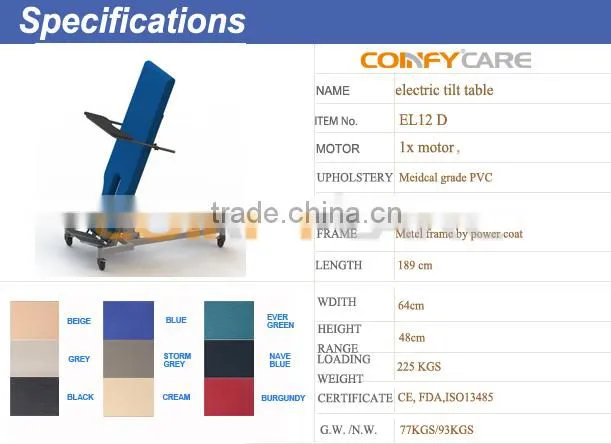

Specifications

Electric Tilt Table:
1.Length:189cm
2.Width:64cm
3.Height:48-95cm
4.CE FDA ISO9001 ISO13485

Coinfy EL12D Electric Tilt Table:

Product Description of Electric Tilt Table:
1	Lifting height - low:	Standard motor is Tmotion" brands = Actuator + control box + hand switch

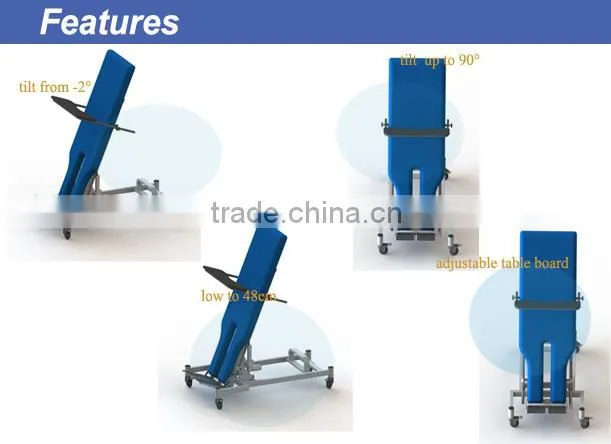

2	Adjustable Height:	Tilting provides an actuator of 12000N push,angle adjustable from -2 to +90
3	Working weight:	Able to lift up to 175kg working weight from its lowest height.
4	Retractable castors:	100mm for excellent mobility and safety.
5	Upholstery material:	Med PVC - Fire/stain/mildew/oil/water/wear resistant
6	Upholstery color:	Available in 9 kinds of colors.
7	Certificates:	CE, FDA, ISO9001-2008, ISO13485-2007, BV


Standard Dimension of Electric Tilt Table:
1	Upholstery Length:	189cm
2	Upholstery Width:	64cm
3	Adjustable Height:	48-95cm
4	Foam Thickness:	5cm
5	Foam Density:	36g/m2
6	Open:	189 x 64 x (48-95)cm
7	N.W./G.W.:	77/93kgs


Standard Options of Electric Tilt Table:
1	EL12DL:	“Linak” brands motor instead of standard motor.
2	EL12DF:	Footbar switch instead of Foot switch
3	EL12DG:	Featuring double gas struts instead of double stainless steel struts.
4	EL12DLF:	Optional 1 and 2.
5	EL12DFG:	Optional 2 and 3.
6	EL12DLG:	Optional 1 and 3.
7	EL12DLFG:	Optional 1, 2 and 3.
8	Extra width	Upholstery can be up to70cm or 62cm.
9	Extra foam thickness:	Upholstery can be increas and reduce it.
10	Hand switch:	Hand switch is free to instead of foot switch
11	Paper roll holder:	Iron material by powder coating,usually that's on seat section.
12	Fold-down Side Support (Pair):	Material is stainless steel,easy to adstable up-down.
13	Control box:	TC2 instead of TC1. Because medical standard at some countries.
