Coinfy EL12 Electric Table Tilt

Name: Coinfy EL12 Electric Table Tilt
Brand: Coinfy-Table Tilt
SKU: 119080649
Availability: InStock

Huangshan Jinfu Medical Equipment Co., Ltd.

US$ 600 - 800 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Coinfy-Table Tilt

Model Number:

EL12-Table Tilt

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai.China-Table Tilt

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Coinfy-Table Tilt

Model Number EL12-Table Tilt

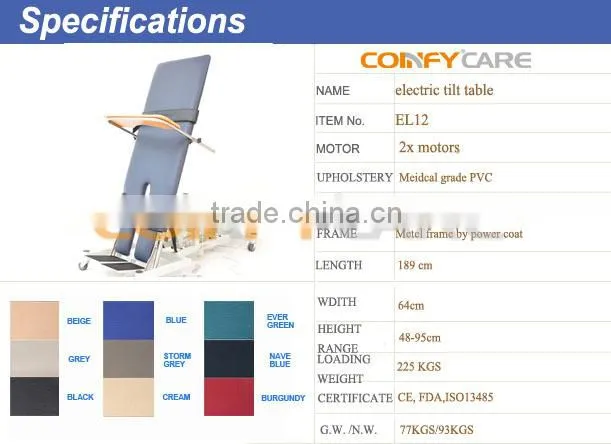

Specifications

Table Tilt:
1.Length:189cm
2.Width:64cm
3.Height:48-95cm
4.CE FDA ISO9001 ISO13485

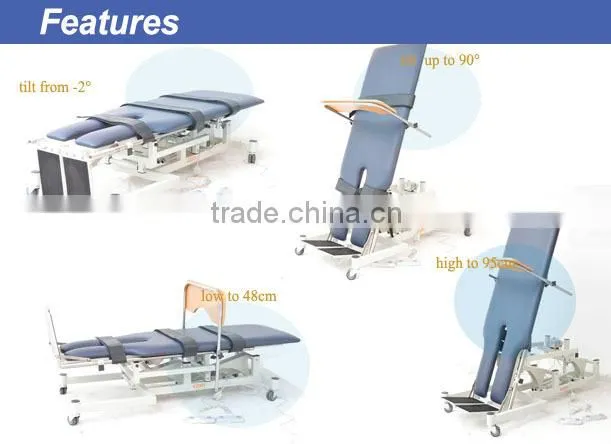

Coinfy EL12 Electric Table Tilt:

Product Description of Table Tilt:
1	Lifting height - low:	Standard motor is Tmotion" brands = Actuator + control box + hand switch
2	Adjustable Height:	Hi-Lo provides an actuator of 8000N push,height adjustable from +48 to +95.5
3	Working weight:	Able to lift up to 175kg working weight from its lowest height.
4	Retractable castors:	75mm for excellent mobility and safety.
5	Upholstery material:	Med PVC - Fire/stain/mildew/oil/water/wear resistant
6	Upholstery color:	Available in 9 kinds of colors.
7	Certificates:	CE, FDA, ISO9001-2008, ISO13485-2007, BV


Standard Dimension of Table Tilt:
1	Upholstery Length:	189cm
2	Upholstery Width:	64cm
3	Adjustable Height:	48-95cm
4	Foam Thickness:	5cm
5	Foam Density:	36g/m2
6	Open:	189 x 64 x (48-95)cm
7	N.W./G.W.:	77/93kgs


Standard Options of Table Tilt:
1	EL12L:	“Linak” brands motor instead of standard motor.
2	EL12F:	Footbar switch instead of Foot switch
3	EL12G:	Featuring double gas struts instead of double stainless steel struts.
4	EL12LF:	Optional 1 and 2.
5	EL12FG:	Optional 2 and 3.
6	EL12LG:	Optional 1 and 3.
7	EL12LFG:	Optional 1, 2 and 3.
8	Extra width	Upholstery can be up to70cm or 62cm.
9	Extra foam thickness:	Upholstery can be increas and reduce it.
10	Hand switch:	Hand switch is free to instead of foot switch
11	Paper roll holder:	Iron material by powder coating,usually that's on seat section.
13	Fold-down Side Support (Pair):	Material is stainless steel,easy to adstable up-down.
14	Control box:	TC2 instead of TC1. Because medical standard at some countries.
