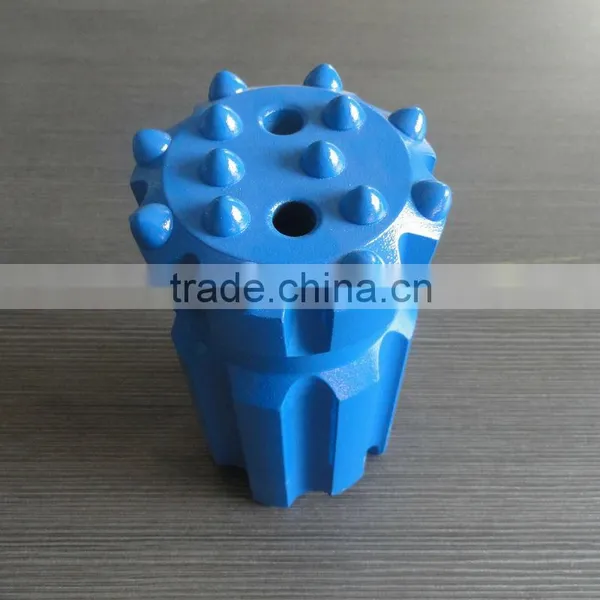

T51 Retrac Rock Drill Button Bit

T51 Retrac Rock Drill Button Bit thumbnail-1
T51 Retrac Rock Drill Button Bit photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
R1389-T51-B-1 to R14115-T51-B-3
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number R1389-T51-B-1 to R14115-T51-B-3
Type Other, Retrac Button Bit
Material Tungsten Carbide
Use Metal Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description

  Detailed product description:
T51 115mm 4-inch stone drilling bits ballistic button bit heat treatment

Description:
This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55Mpa to 165Mpa compressive strength)
Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture
Recommended for eliminating hole deviation

• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations
• With retrac wings to help guide the bit in and out of the hole
• Effective in straight hole drilling

Colors: green, blue or based on customer requirements
Material: tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: T51 retrac button bit ballistic buttons

Applications:
• Underground mining
• Tunneling

Competitive advantage:
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
4148300932 R1389-T51-B-1, T51 Retrac Button Bit, Ballistic Buttons 89 3 1/2 5x13 8x13 35° 2 1 5.3
4148300933 R1189-T51-B, T51 Retrac Button Bit, Ballistic Button 89 3 1/2 3x11, 2x11 6x13 35° 4 - 5.3
4148300934 R1389-T51-B-2, T51 Retrac Button Bit, Ballistic Buttons 89 3 1/2 4x11, 1x11 8x13 35° 4 - 5.3
4148300935 R1389-T51-B-3, T51 Retrac Button Bit, Ballistic Buttons 89 3 1/2 4x13, 1x13 8x13 35° 4 - 5.3
4148300936 R12102-T51-B, T51 Retrac Button Bit, Ballistic ButtonS 102 4 4x14 8x14 40° 2 - 7.3
4148300937 R14102-T51-B-1, T51 Retrac Button Bit, Ballistic Buttons 102 4 6x13 8x16 35° 2 1 7.3
4148300938 R13102-T51-B-1, T51 Retrac Button Bit, Ballistic Buttons 102 4 4x13, 1x13 8x14 35° 4 - 7.3
4148300939 R14102-T51-B-2, T51 Retrac Button Bit, Ballistic Buttons 102 4 4x13, 2x13 8x13 35° 4 1 7.3
4148300940 R13102-T51-B-2, T51 Retrac Button Bit, Ballistic Buttons 102 4 4x13, 1x13 8x14 35° 4 1 7.3
4148300941 R14115-T51-B-1, T51 Retrac Button Bit, Ballistic Buttons 115 4 1/2 6x14 8x16 35° 2 - 9.8
4148300942 R14115-T51-B-2, T51 Retrac Button Bit, Ballistic Buttons 115 4 1/2 4x13, 2x13 8x14 35° 4 - 9.8
4148300943 R15115-T51-B, T51 Retrac Button Bit, Ballistic Buttons 115 4 1/2 4x13, 3x13 8x14 35° 4 - 9.8
4148300944 R14115-T51-B-3, T51 Retrac Button Bit, Ballistic Buttons 115 4 1/2 4x14, 2x14 8x16 35° 4 - 9.8
