Specifications
High grade tungsten carbide insertsBit bodies manufactured from high grade steel and processed using state-of-the-art CN

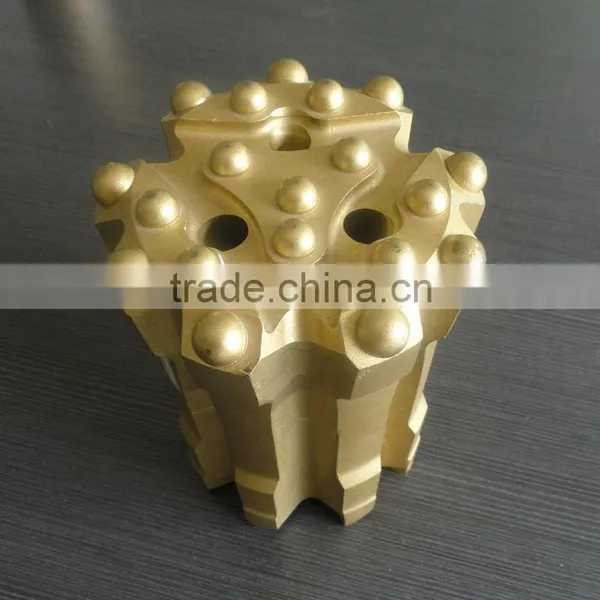

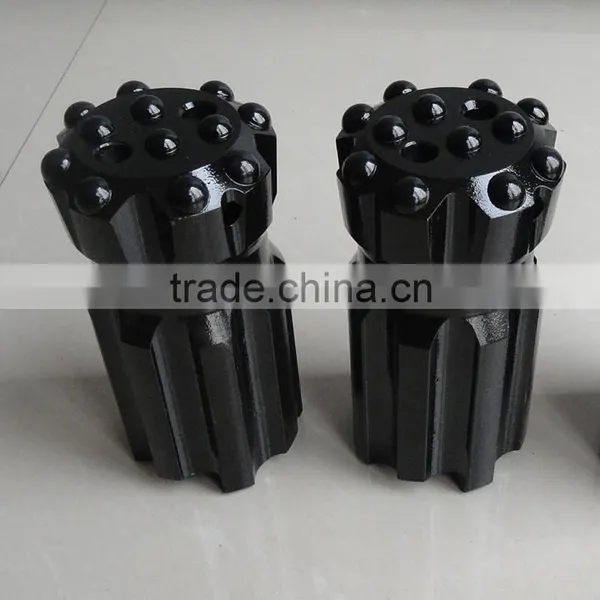

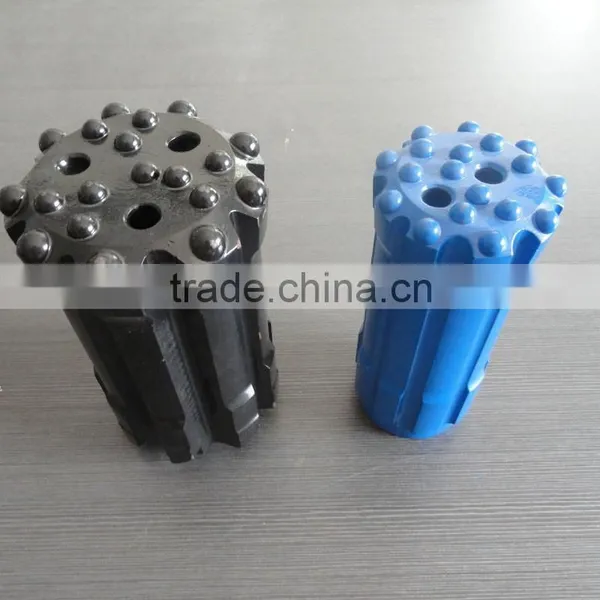

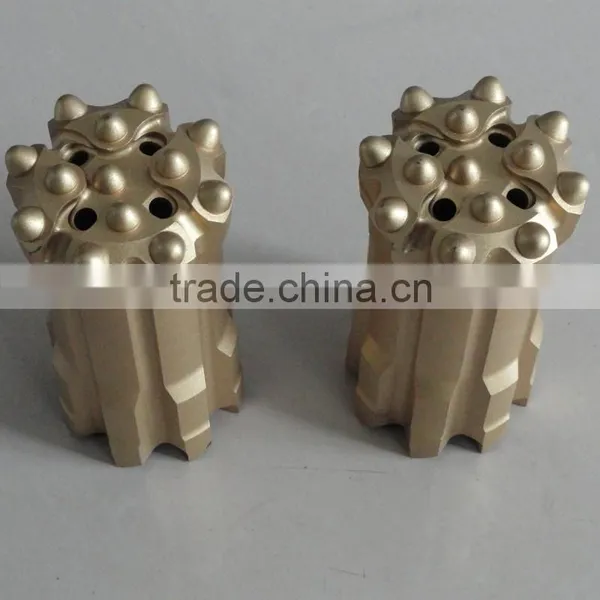

Ballistic Buttons R32 Retrac Drill Core Bit
Description
This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55 Mpa to 165 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture. Recommended for eliminating hole deviation.
• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations
• With Retrac Wings to help guide the bit in and out of the hole
• Effective in straight hole drilling
Color: Green,Blue or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R32 Retrac Button Bit Ballistic Buttons
Applications
• Underground mining
• Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
| Part Number | Product Code and Brief Description | Bit Diameter (mm) | Bit Diameter (inch) | Front Buttons (No. x mm) | Gauge Buttons (No. x mm) | Angle | Front Flushing Holes | Side Flushing Holes | Weight (kg) |
| 4148300527 | R945-R32-B, R32 Retrac Button Bit, Ballistic Buttons | 45 | 1 7/9 | 3x8 | 6x9 | 40° | 3 | - | 1.1 |
| 4148300528 | R948-R32-B, R32 Retrac Button Bit, Ballistic Buttons | 48 | 1 8/9 | 3x9 | 6x10 | 30° | 3 | - | 1.2 |
| 4148300529 | R951-R32-B, R32 Retrac Button Bit, Ballistic Buttons | 51 | 2 | 3x9 | 6x10 | 30° | 3 | - | 1.4 |
| 4148300530 | R1064-R32-B, R32 Retrac Button Bit, Ballistic Buttons | 64 | 2 1/2 | 3x10, 1x10 | 6x11 | 35° | 3 | - | 2.2 |
| 4148300531 | R1264-R32-B, R32 Retrac Button Bit, Ballistic Buttons | 64 | 2 1/2 | 4x10 | 8x10 | 40° | 2 | - | 2.2 |
| 4148300532 | R1376-R32-B, R32 Retrac Button Bit, Ballistic Buttons | 76 | 3 | 4x11, 1x11 | 8x11 | 35° | 4 | 1 | 3.5 |
Packaging:Carton or Wooden Box
