Help CenterR32 Reaming Bit and Pliot Adapter 6 Degree
Related Products
-
89mm 102mm 127mm R32 Reaming Bit & Pilot AdapterUS$ 300 - 500MOQ: 1 Piece -
T45 Dome Bit for ReamingUS$ 20 - 150MOQ: 1 Piece
-
T45 127mm 152mm Dome Bit for ReamingUS$ 20 - 150MOQ: 1 Piece
-
127mm 152mm T38 T45 T51Dome Bit for Reaming Rock Drilling ToolsUS$ 20 - 150MOQ: 1 Piece
-
5 Inch 6 Inch T38 T45 T51Dome Bit for Reaming Rock Drilling ToolsUS$ 20 - 150MOQ: 1 Piece
Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

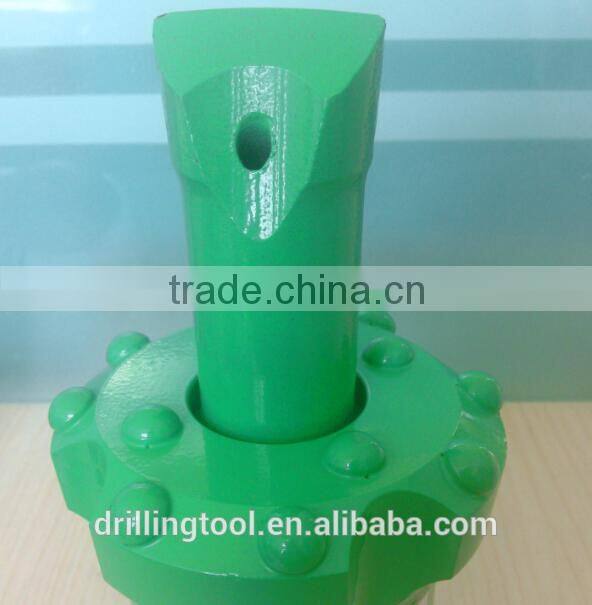

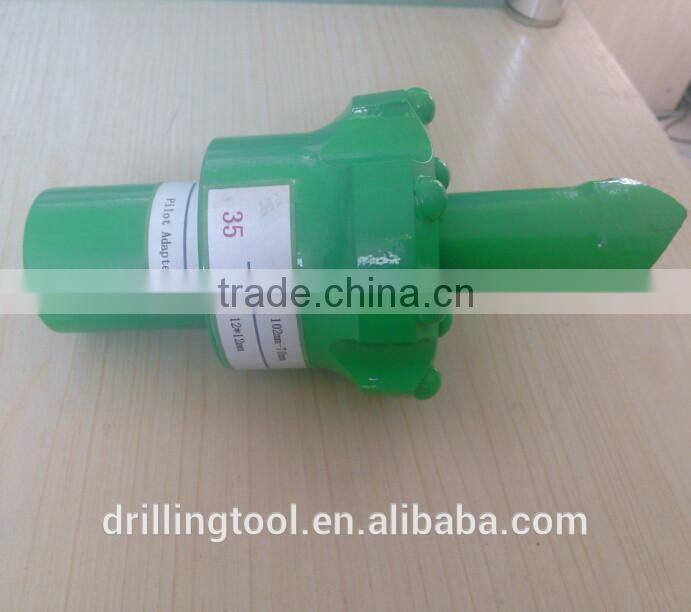

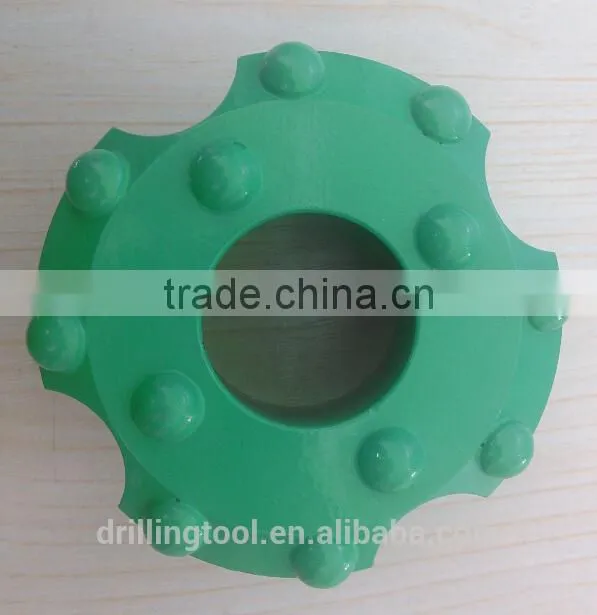

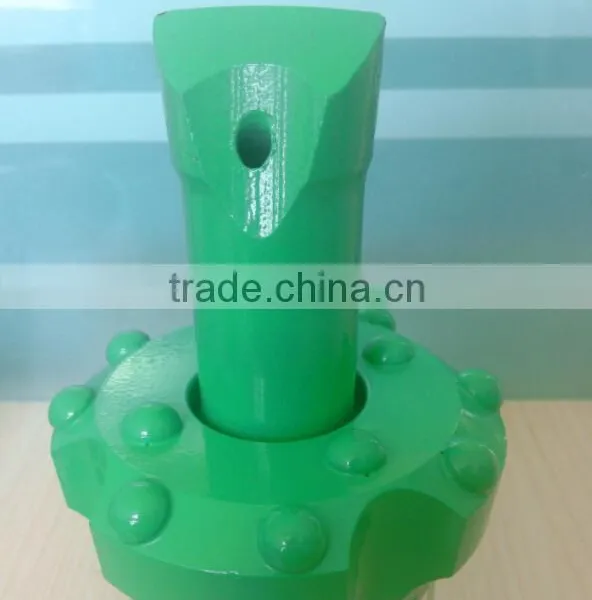

R32 Reaming Bit - 6 Degree
Specification:
| THREADED ROCK DRILLING TOOLS - R32 Reaming Bit | |||||||||
| Drill bit | Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | front | Side | kg | ||
| Reaming bit 6° | 64 | 2 1/2 | 2×10 | 8×9 | 35° | - | - | 0.8 | RE1064-6D-R32 | |
|
|
64 | 2 1/2 | 4×8 | 8×9 | 25° | - | - | 0.8 | RE1264-6D-R32 | |
| 76 | 3 | 2×11 | 8×11 | 35° | - | - | 1.2 | RE1076-6D-R32 | ||
| 76 | 3 | 4×10 | 8×10 | 30° | - | - | 1.2 | RE1276-6D-R32 | ||
| 89 | 3 1/2 | 4×11, 1×11 | 8×11 | 35° | - | - | 1.7 | RE1289-6D-R32 | ||
| 89 | 3 1/2 | 4×10 | 8×10 | 30° | - | - | 1.7 | RE1289-6D-R32 |
HS Code: 82071990

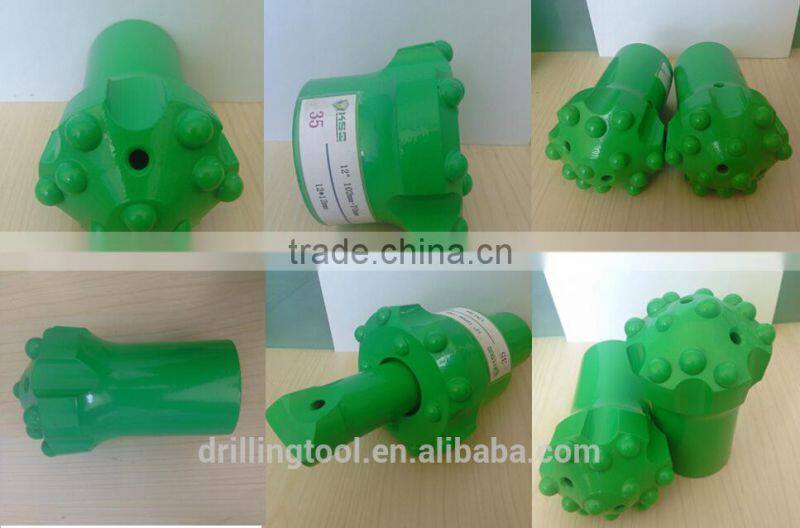

Product Pictures:
Button bit and Insert types:
Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions
Applications of rock drilling tools
• Underground mining
• Tunneling,quarrying
• Granite, Basalt, Limestone rock etc.
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Production Process:
1. Raw material 2. Making bits body 3. Making bit face 4. Heat-treatment 5. Package.
Packaging & Shipping
1. Carton or wooden box
2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Package pictures
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due to physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
Please feel free to contact us at any time, we will be always here for supporting you!
