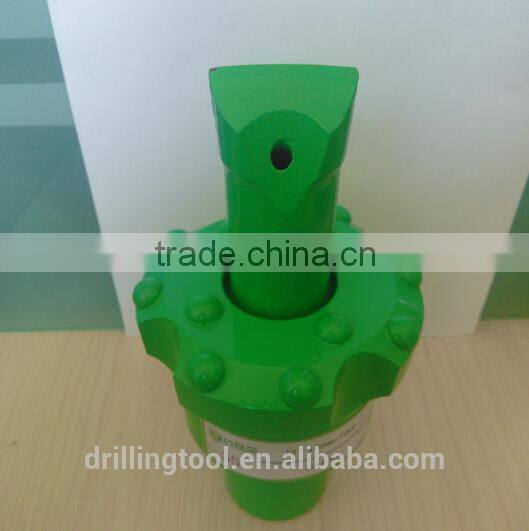

Help Center127mm 152mm T38 T45 T51Dome Bit for Reaming Rock Drilling Tools
Related Products
-
5 Inch 6 Inch T38 T45 T51Dome Bit for Reaming Rock Drilling ToolsUS$ 20 - 150MOQ: 1 Piece -
T45 Dome Bit/ Rock Bit/Drill Bit/Mining Bit/Rock Bit/Reaming BitUS$ 20 - 150MOQ: 1 Piece
-
T45 127mm 152mm Dome Bit/ Rock Bit/Drill Bit/Mining Bit/Rock Bit/Reaming BitUS$ 20 - 150MOQ: 1 Piece
-
T45 Dome Bit/ Rock Bit/Drill Bit/Mining Bit/Rock Bit/Reaming Bit/Thread BitUS$ 20 - 150MOQ: 1 Piece
-
High Quality T45 Dome Bit/ Rock Bit/Drill Bit/Mining Bit/Rock Bit/Reaming Bit/Thread BitUS$ 20 - 150MOQ: 1 Piece
Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
Product Name: | Thread button bits |
Description: | For different rock hardness mining,tunneling,quarrying projects. |
Material: | Alloy steel bar and tungsten carbide bit |
MOQ: | trial order 1-5pcs |
Body Type | Normal type and retract type |
Thread type | R25,R28,R32,R38,T38,T45,T51,ST58,ST68 |
Diameter | 32mm-152mm |
Button bit shape | Spherical and Ballistic |
Face shape | Flat shape and Drop-center shape |
Applications of rock drilling tools
• Underground mining and surface mining
• Long hole drilling
• Bench mining and production mining
• Granite, Basalt, Limestone rock etc.
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Production Process:
1. Raw material 2. Making bits body 3. Making bit face 4. Heat-treatment 5. Package.
Specification:
T45 Dome Bit
| Spherical | ||||||||
| 127 | 5 | 1x13 | 18x13 | 35° | 3 | 1 | 6.0 | 4148300865 |
| 152 | 6 | 2x14 | 18x14 | 35° | 3 | 1 | 10.6 | 4148300866 |
| Ballistic | ||||||||
| 127 | 5 | 1x13 | 18x13 | 35° | 3 | 1 | 6.0 | 4148300867 |
| 152 | 6 | 2x14 | 18x14 | 35° | 3 | 1 | 10.6 | 4148300868 |

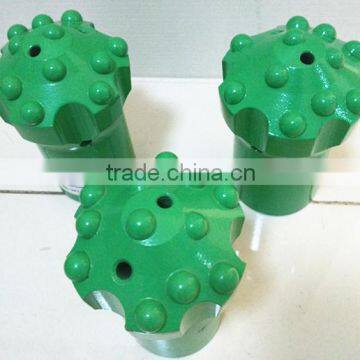

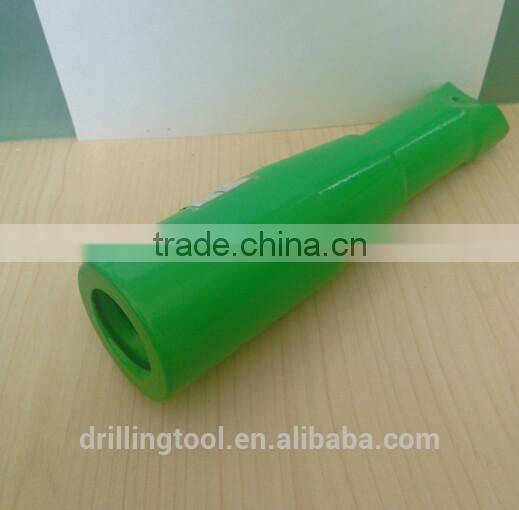

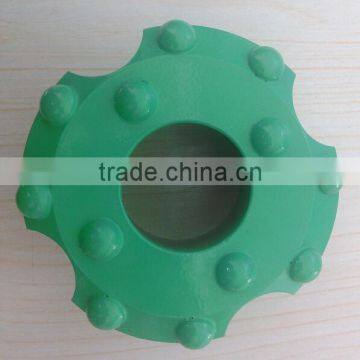

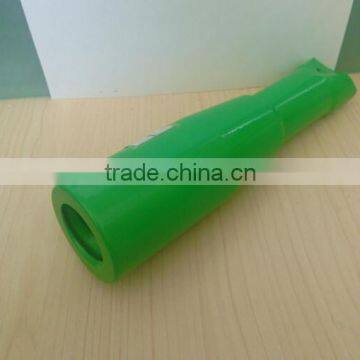

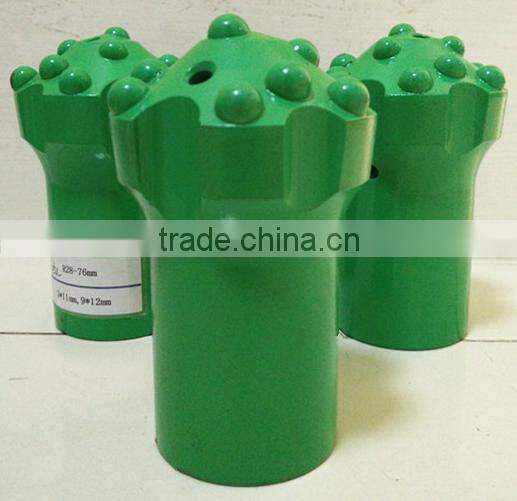

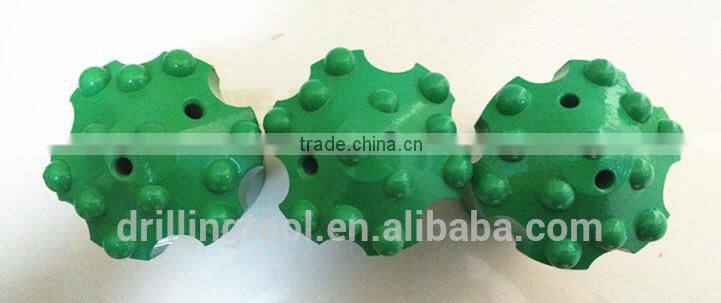

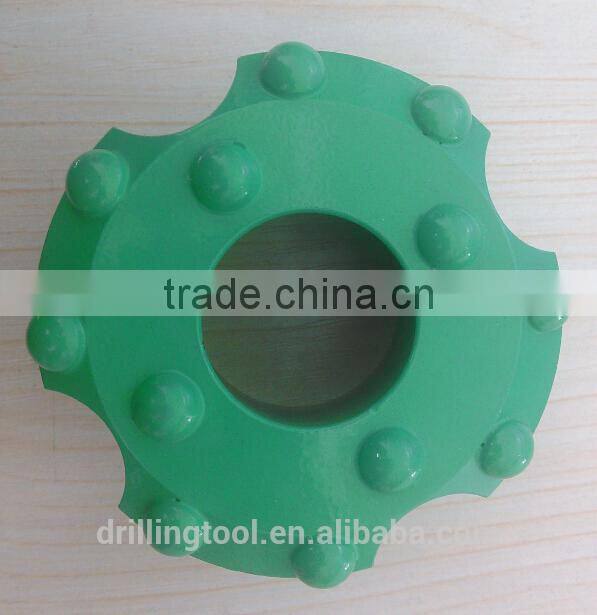

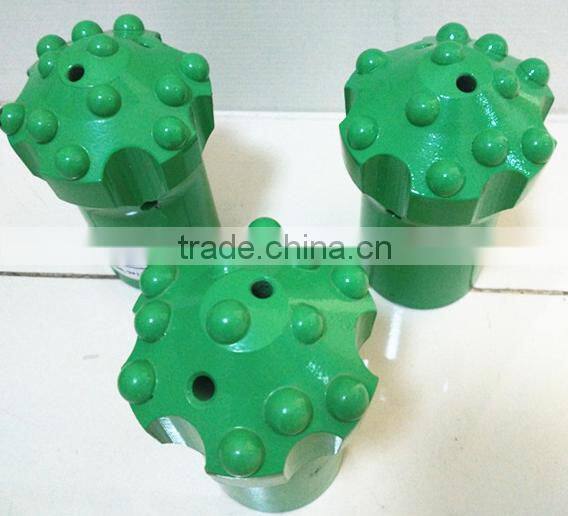

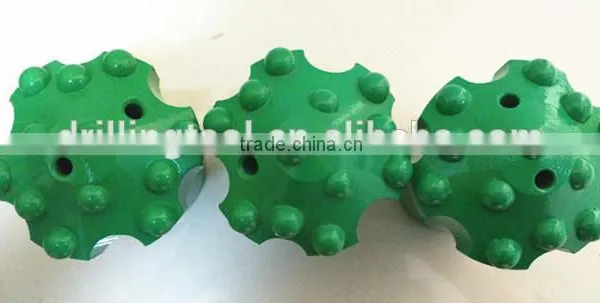

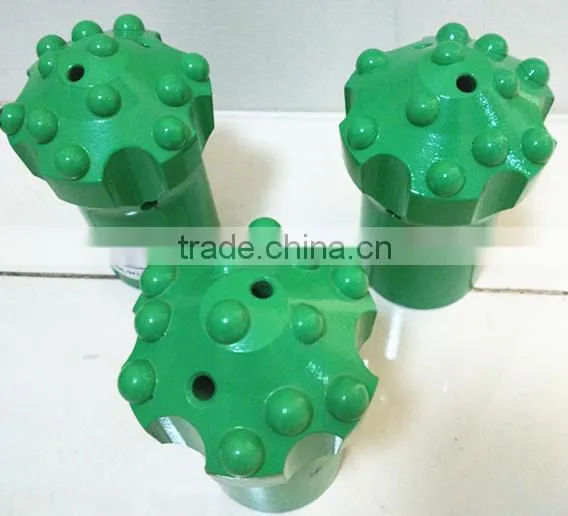

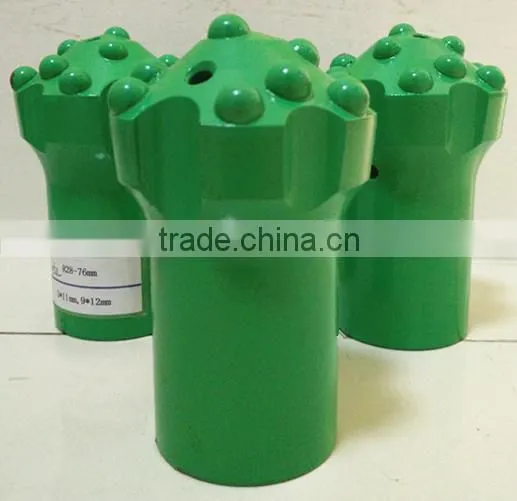

Product Pictures:
Button bit and Insert types:
Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions
Order Information:
Thread + Bit. Diameter + Carbide Type + Body Type
Packaging & Shipping
Carton or wooden box
KSQ Main Rock Drilling Tools:
Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel, Shank H19 x 108mm and H22 108mm.
Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7 degree, 11 degree, 12 degree.
Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod,
MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
Shank Adapters (Striking Bars) - equivalent to Atlas Copco, Sandvik, Furukawa, Gardner Genver, Ingersoll Rand etc.
Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)
Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
Please feel free to contact us at any time, we will be always here for supporting you!
Skype: alice. zhang1106
Whatsapp:+86-182-0101-1129
