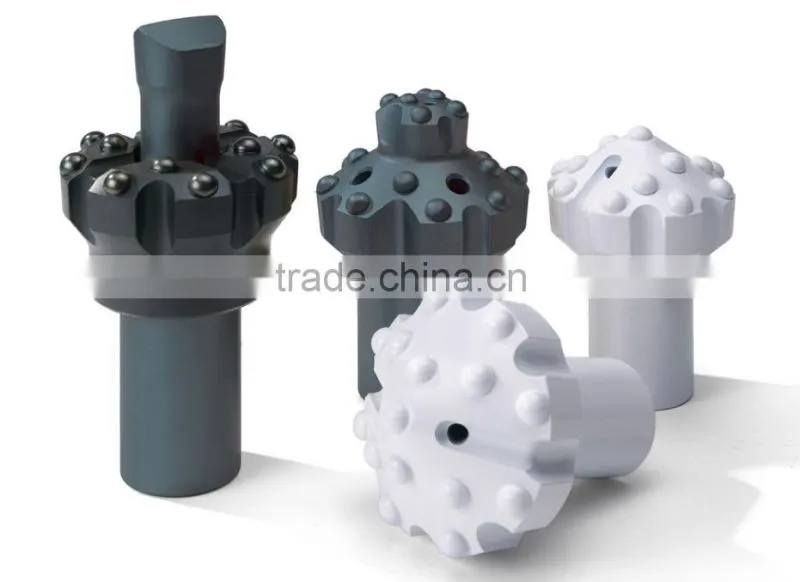

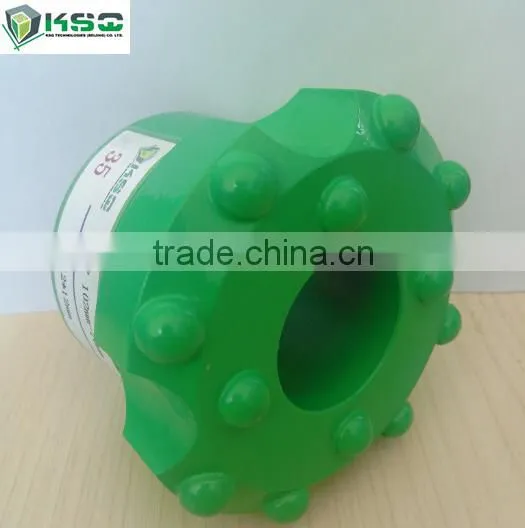

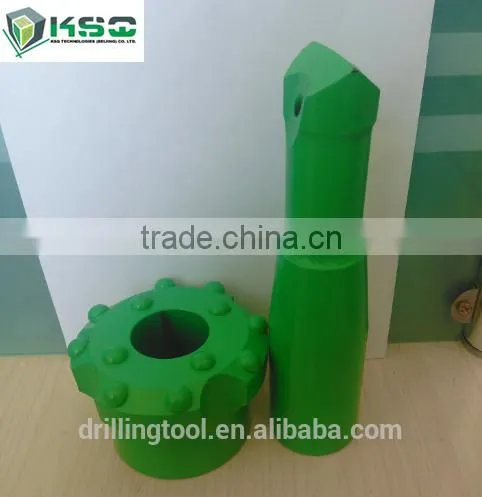

Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter

Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter thumbnail-1
Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter thumbnail-2
Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter thumbnail-3
Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter thumbnail-4
Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter photo-1

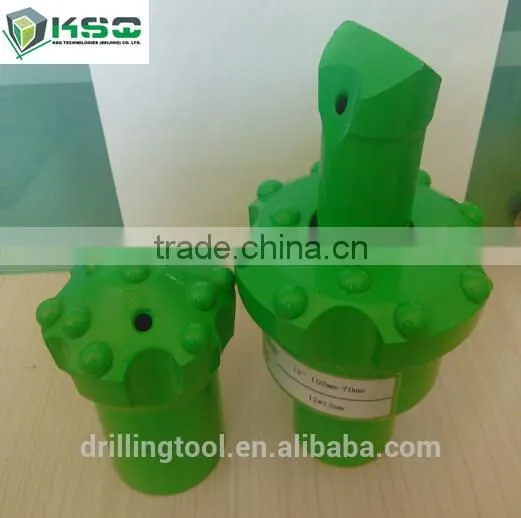

Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter photo-2

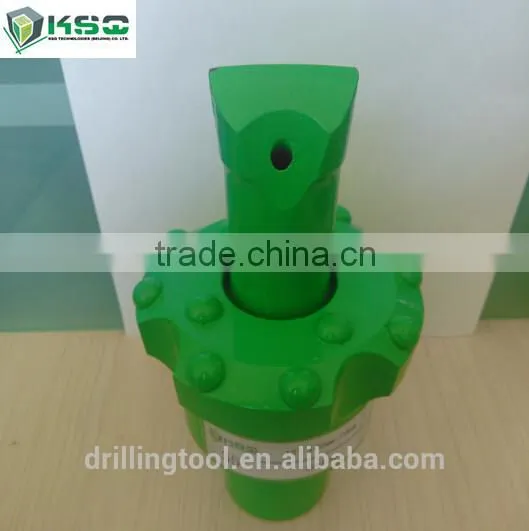

Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter photo-3
Rock Drilling R25, R28, R32 Diameter 64mm - 127mm Reaming Bit / Pilot Adapter photo-4
US$ 25 - 115 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
MIROC
Model Number:
Reaming bit
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin or Based on Customers
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name MIROC
Model Number Reaming bit
Type Other, Carbide drill bit
Material Tungsten Carbide
Use Other, Mining, Rock drilling

Reaming rock bit applicable to reaming for first-grade and second-grade larger-diameter hole. It can reduce the sectional area between bit blade and rock hole, also solve the problem of large diameter's low drilling speed in the hard formation with good directive.

reaming bits for quarry are designed to enlarge pilot holes for development rounds,

long hole blasting of drop raises and constructing service holes.

With Pilot adaptors, the drilling direction can be ensured and accurate.

Our factory Reamer is ideal for use with rotary steerable drilling systems, providing a wellbore quality not achievable with other reaming tools. Superior wellbore quality, coupled with a proven history of performance, makes the Reamer the choice for underreaming operations.



Advantages

  • Different front designs for various rock formations
  • Longer service life
  • Improved hole straightness
  • Lowest cost per meter drille

Specification

<

R25 Reaming Bit 6 °
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 2x10 8x9 - - 0.8
2 64 4x8 8x9 - - 0.8
3 76 2x11 8x11 - - 1.2
4 76 4x10 8x10 - - 1.2
5 89 4x11 8x11 - - 1.7
6 89 4x10 8x10 - - 1.7
R25 Pilot Adapter 6 °
1 26 12x8   - - 1.3

 <



R28 Reaming Bit 6 °
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 2×10 8×9 - - 0.8
2 64 4×8 8×9 - - 0.8
3 76 2×11 8×11 - - 1.2
4 76 4×10 8×10 - - 1.2
5 89 4×11 8×11 - - 1.7
6 89 4×10 8×10 - - 1.7
R28 Pilot Adapter 6 °
1 26 12x8   - - 1.3

 <



R32 Reaming Bit 6 °/ 12°
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 2×10 8×9 - - 0.8
2 64 4×8 8×9 - - 0.8
3 76 2×11 8×11 - - 1.2
4 76 4×10 8×10 - - 1.2
5 89 4×11 8×11 - - 1.7
6 89 4×10 8×10 - - 1.7
7 102 4×12 8x12 - - 2.1
8 127 4×12 8x12 - - 4
9 127 4×13 8x13 - - 4
R32 Pilot Adapter 6 ° / 12°
1 26 12x8   - - 1.3
2 40 15x10   - - 2.2
