Hot Selling R32 , R28 Bits for Rock Drilling

Hot Selling R32 , R28 Bits for Rock Drilling thumbnail-1
Hot Selling R32 , R28 Bits for Rock Drilling thumbnail-2
Hot Selling R32 , R28 Bits for Rock Drilling photo-1

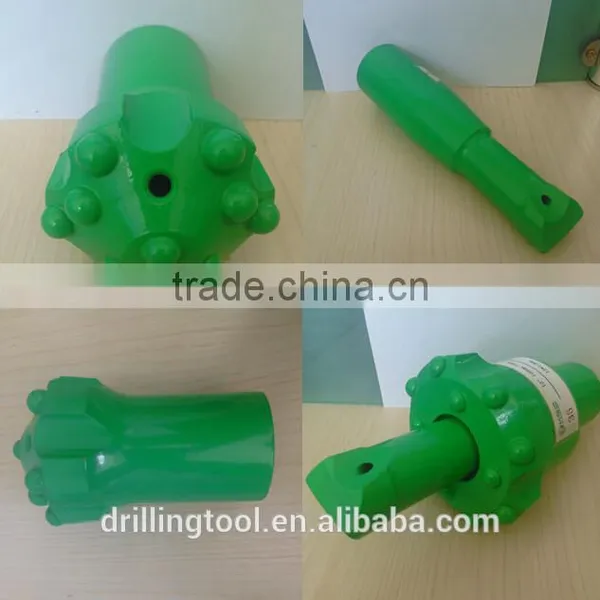

Hot Selling R32 , R28 Bits for Rock Drilling photo-2
US$ 25 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
T38 reaming bit / T38-dome bit for reaming spherical carbide button bi
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin or Based on Customers
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number T38 reaming bit / T38-dome bit for reaming spherical carbide button bi
Type Other, carbide drill bit
Material Other, Tungsten Carbide, Tungsten Carbide
Use Other, mining, rock drilling and underground construction

Describtion



Reaming rock bit applicable to reaming for first-grade and second-grade larger-diameter hole. It can reduce the sectional area between bit blade and rock hole, also solve the problem of large diameter's low drilling speed in the hard formation with good directive.

reaming bits for quarry are designed to enlarge pilot holes for development rounds,

long hole blasting of drop raises and constructing service holes.

With Pilot adaptors, the drilling direction can be ensured and accurate.





Product Name:

different rock hardness drilling button bit

Description:

For different rock hardness mining,tunneling,quarrying button bit

Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment.

Material:

Tungsten Carbide

MOQ:

trial order 1-5pcs

Body Type

Normal type and retract type

Thread type

R25,R28,R32,R38,T38,T45,T51

Diameter

64mm-127mm

Button bit shape

Spherical and Ballistic

Face shape

Dome Bit







T38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 3×10, 1×10 6×11 3 - 1.7
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 3 1 2.6
4 89 3×11, 2×11 6×13 3 1 3.3
R38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 3×11 6×12 3 - 1.8
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 2 - 2.6
4 89 4×13, 1×13 8×13 4 - 3.3
R32 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 41 2×8 5×9 1 1 0.7
2 43 2×9 5×10 1 1 0.7
3 45 2×9 5×11 1 1 0.8
4 48 2×9 5×11 1 1 0.9
5 51 2×10 5×11 1 1 1
6 57 3×9 6×11 3 - 1.3
7 64 3×11 6×12 3 - 1.6
8 70 4×11 8×11 2 - 2.6
9 76 4×11 8×11 2 - 2.8
R28 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 37 2×7 5×9 1 1 0.5
2 38 2×7 5×9 1 1 0.6
3 41 2×8 5×9 1 1 0.7
4 43 2×9 5×9 1 2 0.8
5 45 2×9 5×10 1 2 0.9
6 48 2×9 5×11 1 2 1

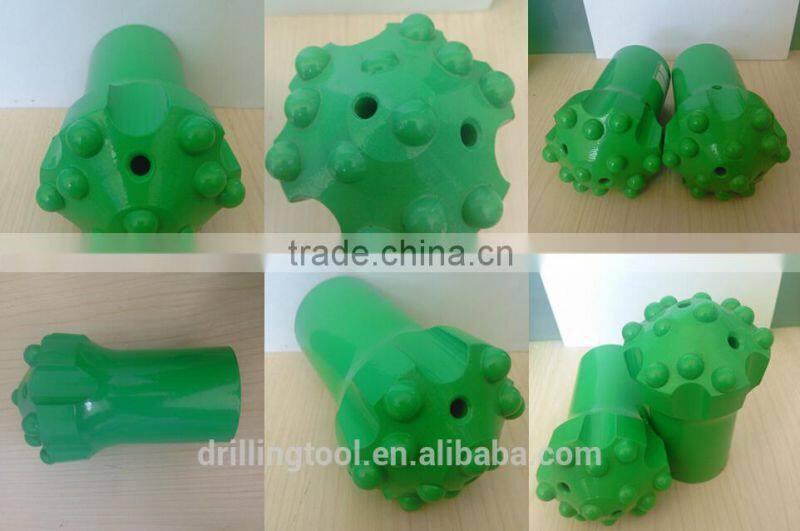

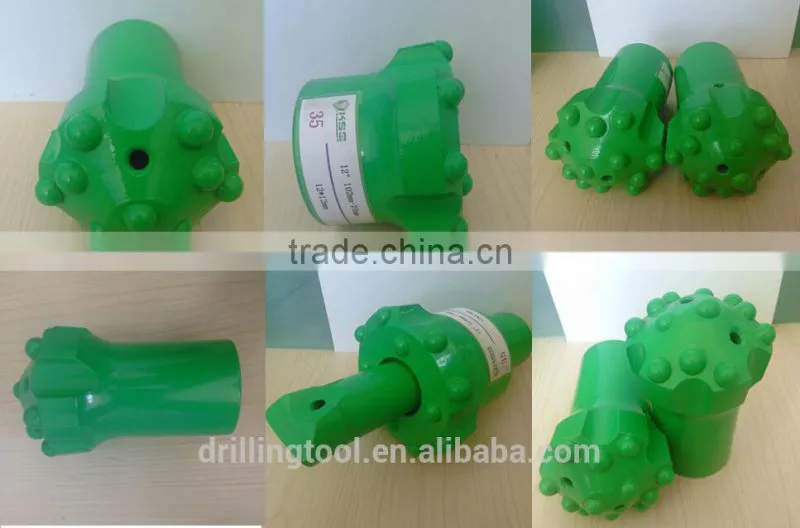

Hot selling R32 , R28 bits for rock drillingHot selling R32 , R28 bits for rock drilling
