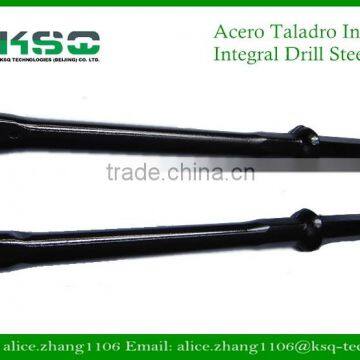

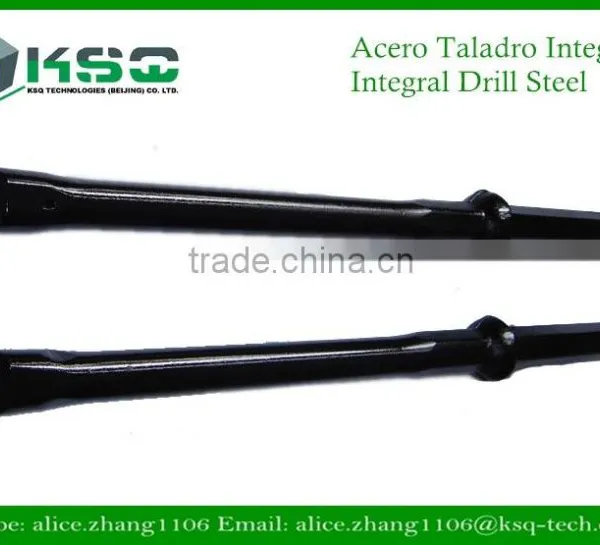

Integral Drill Rod
Integral drill rod or integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling.
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 19mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.
Basic Information:
Product Name: |
Integral Drill Rod |
Shank |
Shank 19mm x108mm, Shank22x108mm |
Diameter |
29mm-41mm |
Length |
400mm-8000mm |
Material: |
High strength alloy steel |
Type |
Chisel bit integral rod, Plug hole integral rod |
Color |
Black or based on customer requirements. |
MOQ: |
No MOQ required for testing and trial order |
H19- Chisel Bit Integral Drill Steel
Shank 19 x108mm
Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 29 | 1.3 | 4148300000 |
| 500 | 1 2/3 | 29 | 1.5 | 4148300001 |
| 800 | 2 5/8 | 28 | 2.2 | 4148300002 |
| 1000 | 3 2/7 | 28 | 2.6 | 4148300003 |
| 1200 | 4 | 27 | 3 | 4148300004 |
| 1600 | 5 1/4 | 27 | 3.9 | 4148300005 |
| 2400 | 7 7/8 | 26 | 5.7 | 4148300006 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300007 |
| 4000 | 13 1/8 | 24 | 9.2 | 4148300008 |
| 400 | 1 1/3 | 24 | 1.3 | 4148300009 |
| 800 | 2 5/8 | 23 | 2.2 | 4148300010 |
| 600 | 2 | 27 | 1.7 | 4148300011 |
| 1200 | 4 | 26 | 3 | 4148300012 |
| 2000 | 6 5/9 | 24 | 4.8 | 4148300013 |
| 2400 | 7 7/8 | 24 | 5.7 | 4148300014 |
| 2700 | 8 6/7 | 24 | 6.3 | 4148300015 |
| 400 | 1 1/3 | 35 | 1.3 | 4148300016 |
| 800 | 2 5/8 | 34 | 2.2 | 4148300017 |
H19-Chisel Bit Integral Drill Steel
Shank 22 x108mm
Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 24 | 1.5 | 4148300018 |
| 400 | 1 1/3 | 29 | 1.5 | 4148300019 |
| 600 | 2 | 27 | 1.7 | 4148300020 |
| 800 | 2 5/8 | 23 | 2.3 | 4148300021 |
| 800 | 2 5/8 | 28 | 2.3 | 4148300022 |
| 1200 | 4 | 23 | 3.2 | 4148300023 |
| 1600 | 5 1/4 | 27 | 4 | 4148300024 |
| 2000 | 6 5/9 | 28 | 5 | 4148300025 |
| 2400 | 7 7/8 | 26 | 5.8 | 4148300026 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300027 |
H19-Plug Hole Integral Drill Steel
Shank 19 x108mm
Plug-hole drill steels are used for splitting and squaring stone blocks.
| Length (mm) | Bit Dia. (mm) | Length (mm) | Weight kg | Part Number |
| 210 | 17 | 150 | 0.7 | 4148300028 |
| 210 | 20 | 150 | 0.7 | 4148300029 |
| 210 | 22 | 150 | 0.7 | 4148300030 |
| 260 | 20 | 200 | 0.8 | 4148300031 |
| 260 | 22 | 200 | 0.8 | 4148300032 |
| 310 | 22 | 250 | 0.9 | 4148300033 |
| 340 | 20 | 280 | 1 | 4148300034 |
H22-Chisel Bit Integral Drill Steel
Shank 22 x108mm
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 800 | 2 5/8 | 34 | 3 | 4148300035 |
| 1600 | 5 1/4 | 33 | 5.2 | 4148300036 |
| 2400 | 7 7/8 | 32 | 8 | 4148300037 |
| 3200 | 10 1/2 | 31 | 10.2 | 4148300038 |
| 4000 | 13 1/8 | 30 | 12.9 | 4148300039 |
| 4800 | 15 3/4 | 29 | 15.1 | 4148300040 |
| 5600 | 18 3/8 | 28 | 17.6 | 4148300041 |
| 6400 | 21 | 27 | 20.1 | 4148300042 |
| 7200 | 23 5/8 | 26 | 22.5 | 4148300043 |
| 800 | 2 5/8 | 40 | 3 | 4148300044 |
| 1600 | 5 1/4 | 39 | 5.2 | 4148300045 |
| 2400 | 7 7/8 | 38 | 8 | 4148300046 |
| 3200 | 10 1/2 | 37 | 10.2 | 4148300047 |
| 4000 | 13 1/8 | 36 | 12.9 | 4148300048 |
| 4800 | 15 3/4 | 35 | 15.1 | 4148300049 |
| 5600 | 18 3/8 | 34 | 17.6 | 4148300050 |
| 6400 | 21 | 33 | 20.1 | 4148300051 |
| 7200 | 23 5/8 | 32 | 22.5 | 4148300052 |
| 8000 | 26 1/4 | 31 | 25 | 4148300053 |
| 400 | 1 1/3 | 34 | 1.7 | 4148300054 |
| 800 | 2 5/8 | 33 | 3 | 4148300055 |
| 1200 | 4 | 32 | 4.1 | 4148300056 |
| 1600 | 5 1/4 | 31 | 5.2 | 4148300057 |
| 2000 | 6 5/9 | 30 | 6.7 | 4148300058 |
| 600 | 2 | 41 | 2.4 | 4148300059 |
| 1200 | 4 | 40 | 4.3 | 4148300060 |
| 1800 | 6 | 39 | 6.2 | 4148300061 |
| 2400 | 7 7/8 | 38 | 8 | 4148300062 |
| 400 | 1 1/3 | 41 | 1.7 | 4148300063 |
| 800 | 2 5/8 | 29 | 3 | 4148300064 |
| 800 | 2 5/8 | 38 | 3.1 | 4148300065 |
| 1200 | 4 | 39 | 4.3 | 4148300066 |
| 1600 | 5 1/4 | 36 | 5.2 | 4148300067 |
| 1800 | 6 | 36 | 6 | 4148300068 |
| 2000 | 6 5/9 | 32 | 6.7 | 4148300069 |
| 2400 | 7 7/8 | 27 | 8 | 4148300070 |
| 3200 | 10 1/2 | 27 | 10.2 | 4148300071 |
| 3200 | 10 1/2 | 32 | 10.3 | 4148300072 |
| 6400 | 21 | 30 | 20.1 | 4148300073 |
| 8000 | 26 1/4 | 26 | 25 | 4148300074 |
Product Pictures:
Applications:
• small hole drilling
Production Process:
1. Raw material 2. CNC milling and proprietary heat treatment process 3. Inspection 4. Package.
Competitive Advantage:
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
(1) Kindly please inform us the shank, Bit diameter and effective length or inform KSQ Part Number
(2) Shank Type:
Shank 19mm x 108mm
Shank 22mm x108mm
(3) Effective Length:
(4)Can design and manufacture the personalized products to meet your specical application.
Packaging & Shipping
1. Carton or wooden box
2. Package pictures
Factory View:
Fair&Clients visit:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due to physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
Please feel free to contact us at any time, we will be always here for supporting you!
Skype: alice. zhang1106
Whatsapp:+86-18201011129
