Integral Drill Rod
Basic Information:
Product Name: |
Integral Drill Rod |
Shank |
Shank 19mm x108mm, Shank22x108mm |
Diameter |
29mm-41mm |
Length |
400mm-8000mm |
Material: |
High strength alloy steel |
Type |
Chisel bit integral rod, Plug hole integral rod |
Color |
Black or based on customer requirements. |
MOQ: |
No MOQ required for testing and trial order |
H19- Chisel Bit Integral Drill Steel
Shank 19 x108mm
Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 29 | 1.3 | 4148300000 |
| 500 | 1 2/3 | 29 | 1.5 | 4148300001 |
| 800 | 2 5/8 | 28 | 2.2 | 4148300002 |
| 1000 | 3 2/7 | 28 | 2.6 | 4148300003 |
| 1200 | 4 | 27 | 3 | 4148300004 |
| 1600 | 5 1/4 | 27 | 3.9 | 4148300005 |
| 2400 | 7 7/8 | 26 | 5.7 | 4148300006 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300007 |
| 4000 | 13 1/8 | 24 | 9.2 | 4148300008 |
| 400 | 1 1/3 | 24 | 1.3 | 4148300009 |
| 800 | 2 5/8 | 23 | 2.2 | 4148300010 |
| 600 | 2 | 27 | 1.7 | 4148300011 |
| 1200 | 4 | 26 | 3 | 4148300012 |
| 2000 | 6 5/9 | 24 | 4.8 | 4148300013 |
| 2400 | 7 7/8 | 24 | 5.7 | 4148300014 |
| 2700 | 8 6/7 | 24 | 6.3 | 4148300015 |
| 400 | 1 1/3 | 35 | 1.3 | 4148300016 |
| 800 | 2 5/8 | 34 | 2.2 | 4148300017 |
H19-Chisel Bit Integral Drill Steel
Shank 22 x108mm
Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 24 | 1.5 | 4148300018 |
| 400 | 1 1/3 | 29 | 1.5 | 4148300019 |
| 600 | 2 | 27 | 1.7 | 4148300020 |
| 800 | 2 5/8 | 23 | 2.3 | 4148300021 |
| 800 | 2 5/8 | 28 | 2.3 | 4148300022 |
| 1200 | 4 | 23 | 3.2 | 4148300023 |
| 1600 | 5 1/4 | 27 | 4 | 4148300024 |
| 2000 | 6 5/9 | 28 | 5 | 4148300025 |
| 2400 | 7 7/8 | 26 | 5.8 | 4148300026 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300027 |
H19-Plug Hole Integral Drill Steel
Shank 19 x108mm
Plug-hole drill steels are used for splitting and squaring stone blocks.
| Length (mm) | Bit Dia. (mm) | Length (mm) | Weight kg | Part Number |
| 210 | 17 | 150 | 0.7 | 4148300028 |
| 210 | 20 | 150 | 0.7 | 4148300029 |
| 210 | 22 | 150 | 0.7 | 4148300030 |
| 260 | 20 | 200 | 0.8 | 4148300031 |
| 260 | 22 | 200 | 0.8 | 4148300032 |
| 310 | 22 | 250 | 0.9 | 4148300033 |
| 340 | 20 | 280 | 1 | 4148300034 |

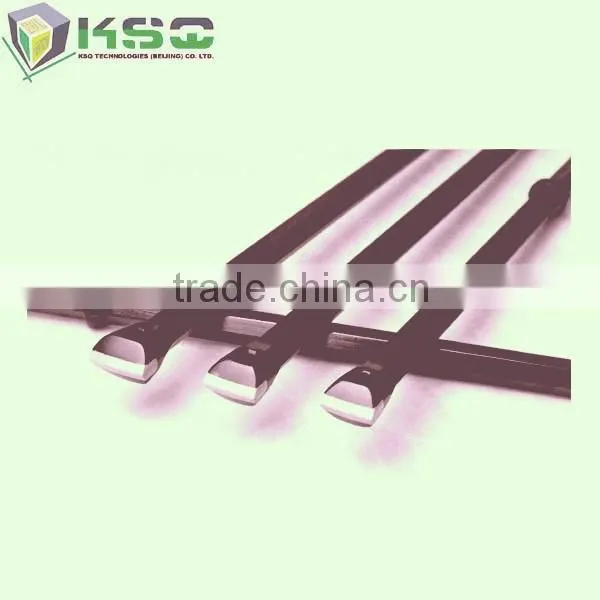

Product Pictures:
Applications:
• small hole drilling
Production Process:
1. Raw material 2. CNC milling and proprietary heat treatment process 3. Inspection 4. Package.
Competitive Advantage:
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
(1) Kindly please inform us the shank, Bit diameter and effective length or inform KSQ Part Number
(2) Shank Type:
Shank 19mm x 108mm
Shank 22mm x108mm
(3) Effective Length:
(4)Can design and manufacture the personalized products to meet your specical application.
Packaging & Shipping
1. Carton or wooden box
Factory View:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
