Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceHigh grade tungsten carb
Description

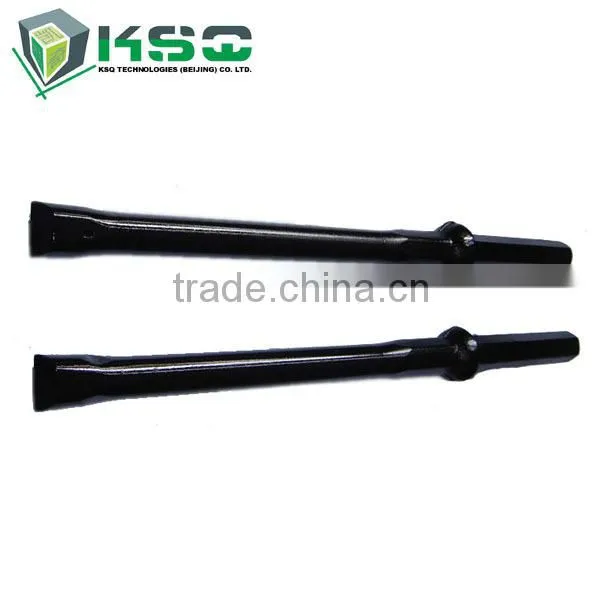

The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Chisel Bit Integral Rod Hex 22 Shank 22 mm x 108 mm
Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Bit Diameter (mm) |
Weight (kg) |
| 4148300018 |
IH22-C24-400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
400 | 1 1/3 | 24 | 1.5 |
| 4148300019 |
IH22-C29-400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
400 | 1 1/3 | 29 | 1.5 |
| 4148300020 |
IH22-C27-600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
600 | 2 | 27 | 1.7 |
| 4148300021 |
IH22-C23-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
800 | 2 5/8 | 23 | 2.3 |
| 4148300022 |
IH22-C28-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
800 | 2 5/8 | 28 | 2.3 |
| 4148300023 |
IH22-C23-1200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
1200 | 4 | 23 | 3.2 |
| 4148300024 |
IH22-C27-1600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
1600 | 5 1/4 | 27 | 4 |
| 4148300025 |
IH22-C28-2000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
2000 | 6 5/9 | 28 | 5 |
| 4148300026 |
IH22-C26-2400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
2400 | 7 7/8 | 26 | 5.8 |
Packaging:Carton or Wooden Box
