newlong bag closing machine DS-9C

Specifications

1,newlong bag closing machine
2,Electro-pneumatic Operated cutter
3,2700r/min speed
4,copy of newlong
5,3 years guarant

1,DS-9C bag closer
2,Electro-pneumatic Operated cutter
3,2700r/min speed
4,copy of newlong
5,3 years guaranty

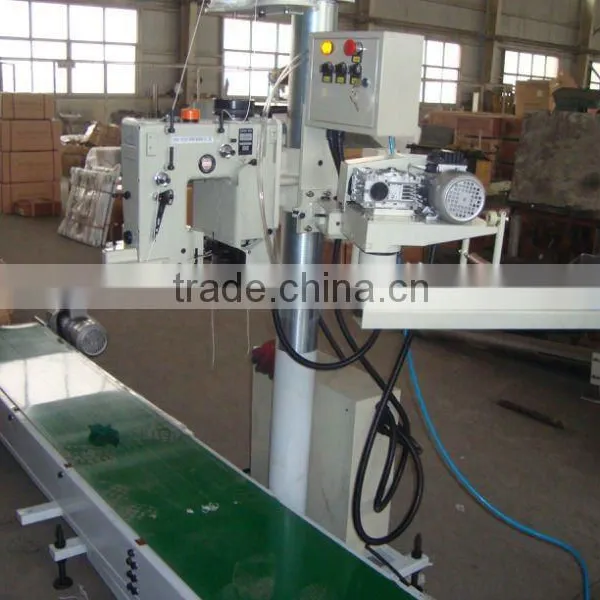

DS-9C Heavy Duty Bag Closing Machine: The fastest single needle bag closing machine (2700 rpm) for all kinds of filled bags. Well-balanced rotational parts ensure very little vibration. Ideally suited for use with height-speed bag filling lines where conveyor speed of 25m/min. All parts are protected against the effects of dust. A unique but simple enclosed oil bath lubrication system greatly extends the life of moving parts and reduces maintenance costs. Model DS-99 is equipped with pneumatic guillotine type crepe-tape cutter. (All the same with NEWLONG DS-9C)

1. Start-stop: Automatically by photoswitch
2. Thread chain cutter: Automatically by air cylinder operated guillotine type cutter
3. Stitch length: Adjustable from 7-10.5 mm
4. Seam: Double thread chain stitch (Type 401)
5. Standard needle: DR-H30 #26
6. Speed: Up to 2700 RPM, depending on sewing material and operation
7. Net weight: 45Kg
