Contact Manager:Ludy Yang

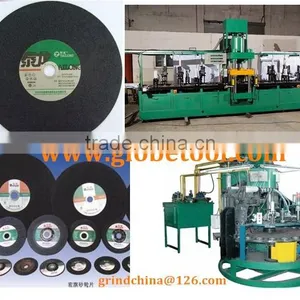

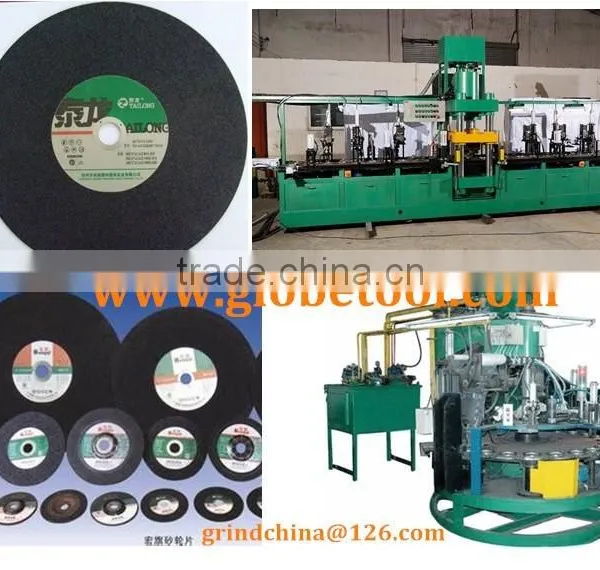

1.Automatic grinding wheel machine, Grinding wheel making machine
/
Grinding wheel mould machine for fiber reforced thin resin bond cutting wheels and depressed center wheels
Technical specification:
(a) Products specifications: diameter 100-400mm ,thickness 1-8mm, flat, parallel, cymbals form, inter and outer net, paste brand etc different kinds cutting wheels and depressed center wheels;
(b) Rating press:315 ton, cast steel beam;
(c) Structure: pane pushing thirty six workstation;
(d) Scrape mode: fix volume revolving switch, electrical sloping plate slightly raise;
(e) Control mode: PLC control;
(f) Capacity: 7 seconds/ per grinding wheel (single head is about 4000-5000 discs/eight hours, double head is about 8000-10000 discs/eight hours );
(g) With pre-press function and cover board automatic convey;
(h) Operators:3 persons;
(i) Another descriptions: According to difference technics and products, this kinds machine can be made up to twenty four workstation, thirty two workstation etc.
Abrasives cutting wheel making machine,
/
3. Automatic flap disc machine, flap disc making machine
Automatic Flap Disc Machine Details:
Backing Pad size |
75mm---180mm |
Finished Flap Disc Size |
75mm-180mm(3"--7") |
Flap Type |
T27/T29 |
Flap Size |
11-40mm x 11-40mm |
Flaps Per Disc |
35~155Flaps |
Max Power of Host Engine |
5KW |
Power of Glue Pump |
1.2KW |
Electrical Power Supply |
380V/ 50--60HZ |
Qty of Rotary Pllate |
6Plate |
Size of Host Engine |
1300mm(L) x600mm(W) x 1800mm( H ) |
Size of Pump |
1100mm(L) X650MM(W) X 1500MM(H) |
Size of Feeding system |
1000mm(L)x 400MM(W) x 1450mm(H) |
Hot Engine Weight |
709KGS |
Glue Pump Weight |
280KGS |
Production |
9000 Pieces /10Hours |
4. Abrasive Wire Wheel Machine,Steel Wire Disc Brush Making Machine
