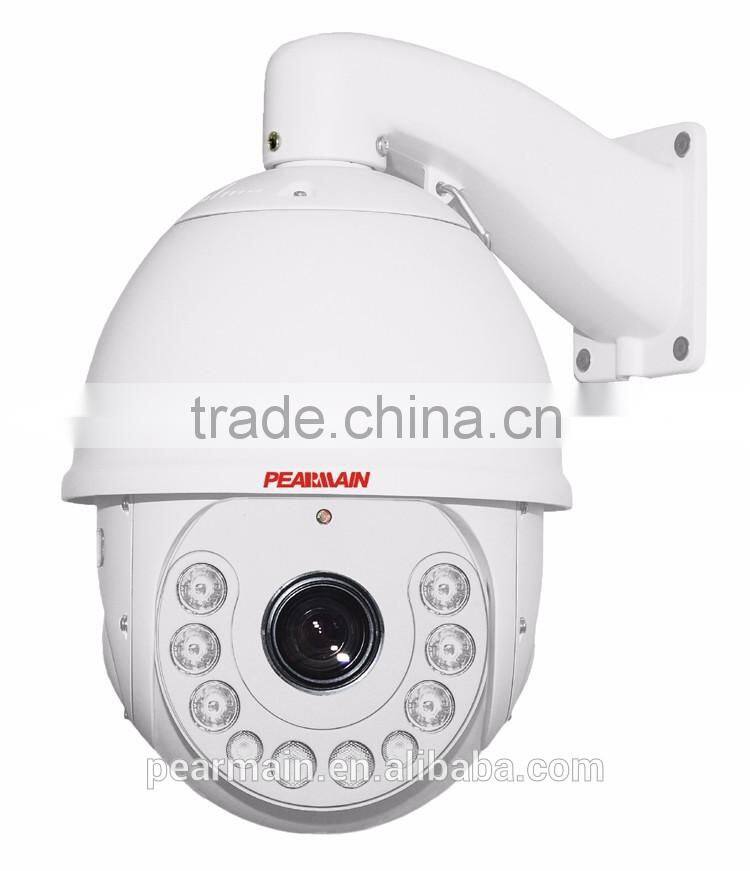

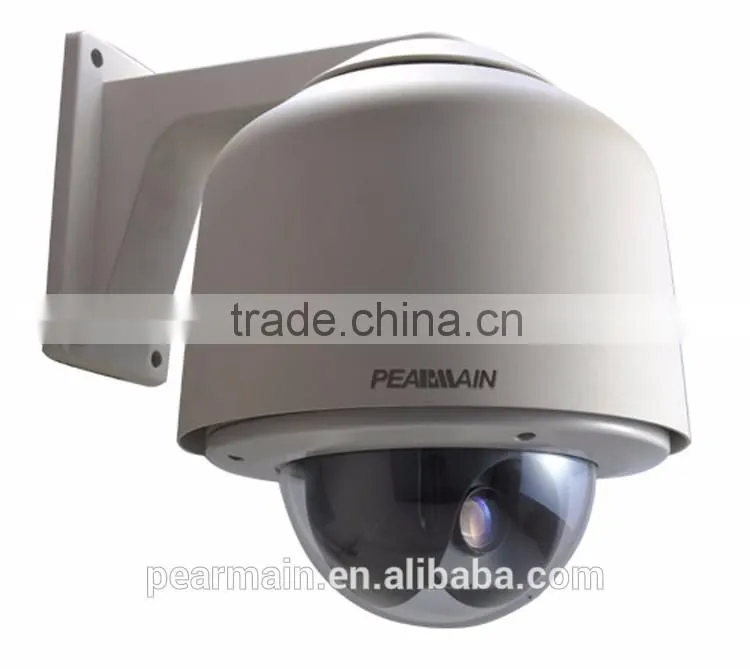

Help CenterPearmain HD-SDI Ptz Camera/dome Cameras
Related Products
-
PTZ Cameras/pan Tilt Zoom Camera 480TVL IP66US$ 1 - 9.9MOQ: 1 Unit -
560TVL Waterproof Ptz Dome CameraUS$ 1 - 9.9MOQ: 1 Unit
-
Surveillance Camera/ptz Security Camera 530TVLUS$ 1 - 9MOQ: 1 Unit
-
480TVL IP66 High Speed Ptz Dome CameraUS$ 1 - 9.9MOQ: 1 Unit
-
Waterproof Speed Dome Camera Ptz CamerasUS$ 1 - 9.9MOQ: 1 Unit
Introduction Features
Support HD- SDI output(1920x1080@30p),it could set video format by RS485 remotely: 1080i/60 720p /60 1080i/50 720p/50 1080p/30 1080p/25
Broadcasting level video, no compression, real-time and full HD output.
Automatically identify PEAMRAIN or PELCO D/P protocol
Powerful OSD menu for setup of Programmable Functions
With function of auto focus, auto iris, auto white balance and auto backlight compensation etc. to have clear camera scene at any time.
Built-in linear power for anti-surge and anti-Lightning protection
it could set address to be 0, offer convenience for maintaince.
Preset position storage function, it can save maximum 256 preset.
8 cruise tours, every tour can call 32 preset.
4 Pattern tours, to save the scan route by joystick.
1 automatic scan, the scope of two limits can be scanned gradually, the scanning steps are optional.
Automatic recover to movement before power failure.
Power-up action, preset, cruise tour, pattern tour, auto scan, etc. available for it.
Park action, preset, cruise tour, pattern tour, auto scan, etc. available
360° continuous panning.
Horizonal scan within 355 degree.
On-Screen display: Compass, Pan, Tilt, Zoom ratio.
Features:
Block Camera (Sony FCB-EH6300)
Image sensor |
1/2.8-type ‘Exmor’ CMOS |
Signal system |
HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out 29.97 PsF), 1080i/50 (frame out: 25PsF) 720/59.94p, 720/50p, 720p/29.97, 720p/25 SD: NTSC, PAL (640x360) |
Number of total pixels |
Approx. 3.27 Megapixels |
Lens |
20x optical zoom, f=4.7 mm (wide) to 94.0 mm (tele), F1.6 to F3.5 |
Digital zoom |
12x (240x with optical zoom) |
Angle of view (H) |
1080p/30 mode: 55.4° (wide end) to 2.9° (tele end)720p/60, 30 mode: 37.6° (wide end) to 1.95° (tele end) |
Minimum working distance |
10 mm (wide) to 1000 mm (tele) (Default 300mm) |
Sync system |
Internal |
Minimum illumination |
High sensitivity mode: 0.5 lx (ICR Off) 0.095 lx (ICR On) (F1.6, 50 IRE)Normal mode: 1.7 lx (ICR Off) 0.3 lx (ICR On) (F1.6, 50 IRE) |
S/N ratio |
More than 50 dB |
Electronic shutter |
1/1 to 1/10,000 s, 22 steps |
White balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapour Lamp (fix/Auto) One-push, Manual |
Gain |
Auto/Manual (-3 to +28 dB, +2 dB step/total 16 steps) Max. Gain Limit (+6dB to +28 dB, +2 dB step/total 12 steps) |
AE control |
Auto, Manual, Shutter Priority, Iris Priority, Bright, Spot AE, Slow AE (approx 5 minutes) |
EV compensation |
N/A |
Focusing system |
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR on. |
Video output |
HD Analogue: Component Y/Pb/Pr; Digital Y/Cb/Cr 4:2:2 via LVDS (signal format conforms to SMPTE296) SD VBS |
Camera control interface |
VISCA (CMOS 5 V level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, stop bit: 1bit |
Parameter Description
Pan-tilt:
Address |
0~255 |
Pan range |
360°Continue |
Tilt range |
0°~90° Flip |
Manual speed Pan |
0.05~240°/Sec |
Manual speed Tilt |
0.05~180°/Sec |
Preset speed |
240°/Sec |
Preset accuracy |
±0.50° |
Preset |
255 |
Remote firmware updating and setup |
to update firmware by RS485, to set ID by RS485 |
Cruise Tours |
8 Programmable(Dwell time speed preset point) |
Speed setup for cruise tour |
Yes |
Pattern Tours |
4 Programmable |
Auto Scan |
1 Programmable (355° scan ) |
Time adjustment |
to adjust Time by broadcasting |
Integrate multi-protocol |
Pelco_D/P, PEARMAIN,or OEM |
Protocol Automatic identify |
Pelco_D/P, PEARMAIN |
Home position |
Yes, preset, cruise tour, pattern tour, auto scan, etc. available |
Broadcasting address |
Yes |
Intelligent power-off memory current setting and state |
Yes |
anti-surge and anti-Lightning protection |
Yes, power port: 4KV, video and data port:2KV |
OSD menu operation |
Yes |
Supporting camera |
Sony, Hitachi , etc. |
Camera menu operation |
Yes |
Camera character programming |
20 character |
Privacy masking |
Yes |
Ingress Protection IP66 |
Yes |
Operating Temperature |
–35℃~65℃ |
Humidity |
0%~90% (Non condensing) |
Heater operate |
(-5)℃ on +5℃ off |
Power |
24VAC±25%,60Hz/50Hz |
Consumption |
heater off 15W heater on 35W |
communication |
RS485 |
Video otuput |
HD-SDI |
Nowadays, Pearmain has developed itself into one of leading matrix manufacturers with 18 branches in China. We have 20 years of experience in designing and researching in video surveillance field. We specially focused on designing and producing high qualified HD matrix switcher.
Our product compatibility enabled us to offer second development port or SDK for interconnection
and communication from the 3rd party equipment or platform from almost 70 companies.
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
