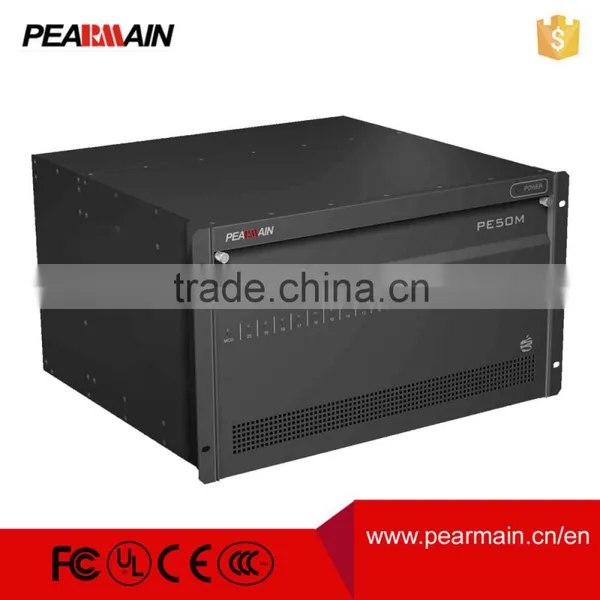

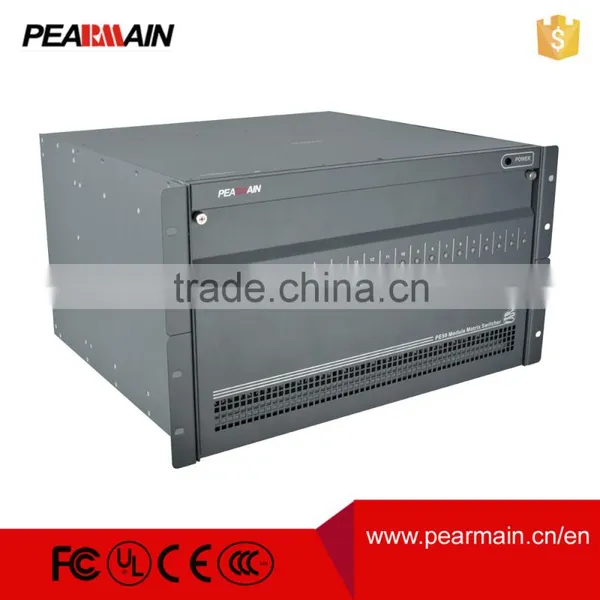

Modular Analog Video Matrix switcher 128*32 For matrix cctv system
Communication mode | Serial RS-485 |
Communication distance | 1300 m |
Communication connection port quantity | high-speed data port, 1 pc RJ11 port to connect with expansion case; keyboard data port, 1 pc RJ11 port to connect with 32 pcs PEARMAIN keyboard and multimedia software, code converter, alarm data port, 1 pc RJ11 port to connect with alarm interface unit. |
Receiver/driver data port | 3 pcs wire socket, 32 pcs receiver/driver per socket; |
Communication mode | STP |
Case capacity | 21 slots. |
Video input module card qty | 16 |
Video input module capacity | 8ch BNC input, 1 pc 8ch DB expansion loop input |
Video output module card qty | 4 pcs |
Video output module card qty | 4ch BNC output, 3 expansion loop input |
Video input signal | BNC unit, 1VP-P/75Ω |
Video output signal | BNC unit, 1VP-P/75Ω |
Audio input signal | BNC unit, 1VP-P |
Audio output signal | BNC unit, 1VP-P |
Channel bandwidth | 10MHZ |
Video isolation degree | -45DB |
Video s/n | 65DB |
Different phase | less than 1.1 degree |
Different gain | less than 0.6% |
Insertion gain | less than0.1DB |
Inter-modulation distortion | 0.005 |
Brightness nonlinear distortion | 0.015 |
Synchronous nonlinear distortion | 0.01 |
2T distortion | 0.006 |
Waveform distortion in a short time | 0.035 |
Cluster frequency delay characteristics | 6ns |
Brightness/color time delay offset | 2.5ns |
Brightness/color time gain offset | 2.5ns |
Operation voltage | AC220v±10% 50M/60 HZ |
Operation temperature | -10℃-+40℃ |
Dimension | 430*245*409mm |
Power | 30w |
Mounting mode | desktop or frame of 19”standard |
Frame | oxford-clay AL-clad |
Color | black |
Approval standard | ISO9001 |
Nowadays, Pearmain has developed itself into one of leading matrix manufacturers with 18 branches in China. We have 20 years of experience in designing and researching in video surveillance field. We specially focused on designing and producing high qualified HD matrix switcher.
Our product compatibility enabled us to offer second development port or SDK for interconnection
and communication from the 3rd party equipment or platform from almost 70 companies.
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
