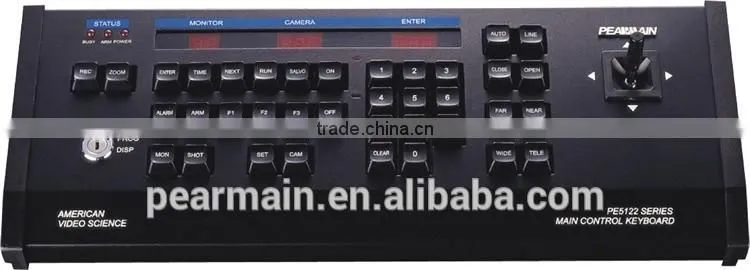

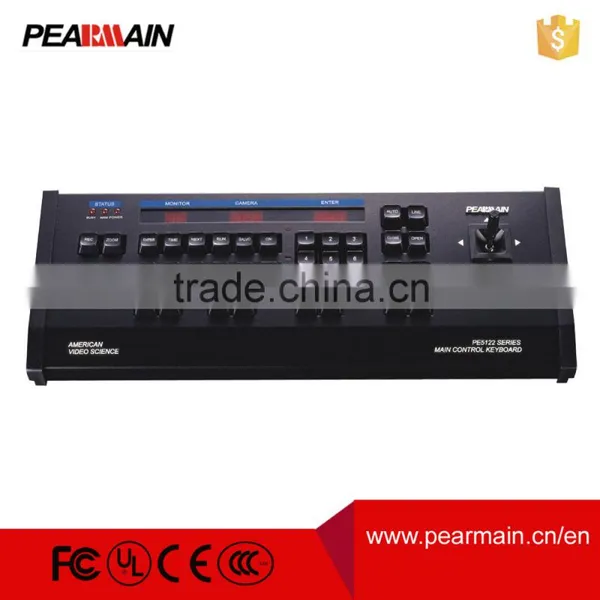

CCTV Keyboard Controller Maximum Switch up to 512 Cameras Among 32 Monitors

Luminary Display:

Three luminary numeral duct display window is to display input camera number, called camera number and called monitor.

Camera/Monitor Selection

PE5122 can switch up to 512 cameras to any one among 32 monitors.

Pan/ tilt Control

Operators can control pan/ tilt by the joystick flexibly. And also it can select menu with joystick when system programming.

Electronic Lens Control

 PE5122 has the functions to control electrify lens with keys, the function including iris (open-close), focus (near-far), zoom (wide-Tele).

Alarm Control

PE5122 can select alarm on/off and alarm mode etc.

System Program

It can enter into menu program status by key switch, to setup system data, such as time, switch, alarm and jurisdiction, to satisfy operators’ requirements.

Salvo Switch

System can switch multi-camera images to multi-monitor. There are 32 groups salvo switch sequences and 16 camera images in each group. System set through salvo switch menu.

Universal Tours/Sequences

System could program and save 32 Universal Tours in advance, every tour is made up with 32 camera images, dwell time of every camera could be adjustable separately, every camera signal could be some preset,  a tour may include the same camera image multiple times, multiple presets of a camera.

Camera images’ Jumping Over and Inserting

Images’ jumping over: to jump over camera images no need to display when automatic switching, to mask automatically on the monitor.

Images’ inserting: to display images which need display but not having been displayed, to insert into automatic switching, and to display images automatically on monitor.

Forward /Rear Switch

To switch camera images forward or rear step by step on any monitor.

Multiplexer Control

PE5122Z keyboard to add 5139 multiplexer adapter can control all of functions of ROBOT multiplexer, such as frame in frame, four- multiplexer, nine- multiplexer, sixteen-multiplexer, image select, recorder and video play back, etc.

Individual Monitor Automatic Switch

PE5122 can appoint any group of continuous camera images on any monitor. These images can switch automatically and dwell time of each camera can be programmed.

Main matrix Password input

Password input of main matrix is a safety measurement, It can ensures system only be used by the person who have the operation authority, The operators only can enter into system by password, initialization password is 11111, system can have up to 16 users and individual password.

Communication Test

System would check if communication port is normal by BUSY numinous dust indication.

Monitor Selection: PE5122 serial can control 32 monitors at most;

Camera Selection: Call and control 512 cameras at most;

Status Luminous Numeral Duct: (two) to Indicate if the status of the communication is normal and the power supply is working;

Monitor Numeral Dust: (2 digit) to display the present active monitor number under keyboard control;

Camera Numeral Dust: (3 digit) to display camera number under control;

Input Numeral Dust: (3 digit) to display the present entered number;

Connection Mode:2-pin STP between keyboard and main matrix
