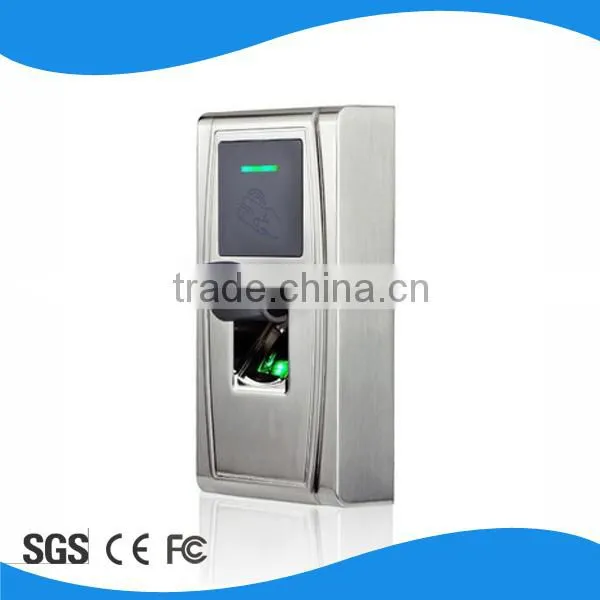

IP66 rates Weatherproof Biometric Fingerprint Access Control With Built-in ID Card Reader
Specifications:
1. IP65 rating outdoor waterproof
2. Metal vandal-proof
3. 1500 templates, 10000 cards
4. NO LCD and Keypad, TCP/IP
Product Introduction:
FAC300 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. It features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. It offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS232/485 are available that the device can be used in different network. TCP/IP communication makes sure the data transition between the device and the PC can be easily done within several seconds. It can be used in tough environment because of the IP65 protection index and the wide range of operating temperature.
Features:
· Fingerprint reader with durable and highly accurate optical sensor. · 1 touch a-second user recognition

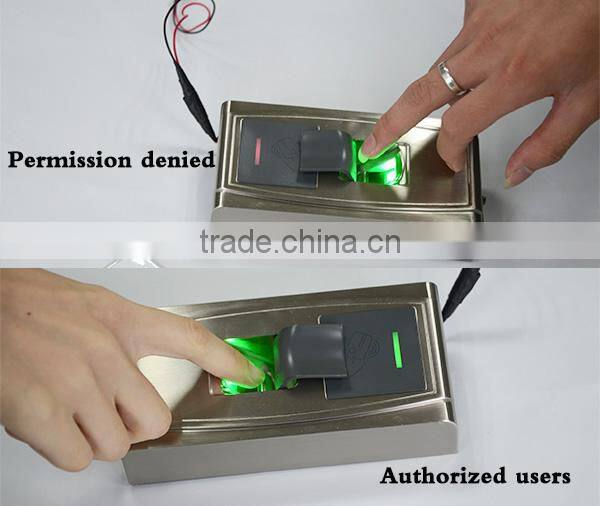

· Stores 1,500 templates, 10,000 cards and 100,000 transactions. · Reads Fingerprint and/or Card · Optional integrated smart card reader · Built-in Serial and Ethernet ports · Tamper-proofs switch and alarm outputs · Request-to-exit and alarm contacts · Real-time 1-touch data export 3rd party hosted & non-hosted applications. · Audio-Visual indications for acceptance and rejection of valid/invalid fingers. IP65 protection index · Wide range of operating temperature
Technical Specification:
Product Parameter |
Parameter Description |
Fingerprint Capacity |
1,500 templates. |
ID card Capacity |
10,000. |
Transaction Capacity |
100,000. |
Hardware Platform |
ZEM710 |
Algorithm Version |
Finger v10.0 |
Communication |
RS232/485, TCP/IP, USB-host. |
|
Access Control Interface for |
Advanced Access Control, Wiegand Out/IN |
Wiegand Signal |
Input & Output |
Optional Functions |
MF |
Display |
N/A |
Power Supply |
12V DC |
Operating Temperature |
-10 °C- 60 °C |
Operating Humidity |
10%-90% |
Index of Protection |
IP65 |
Dimension(L*W*H)mm |
73*148*34.5mm |
Gross Weight |
1.15kg |

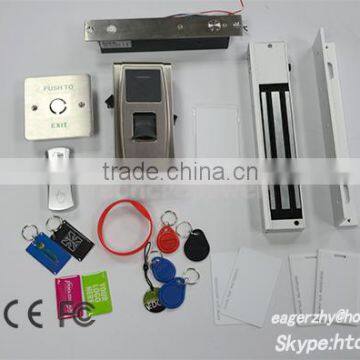

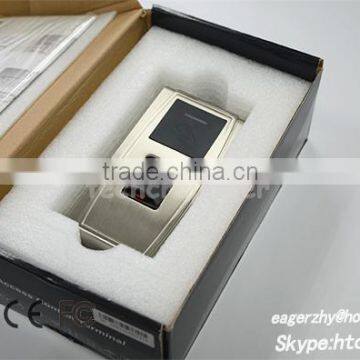

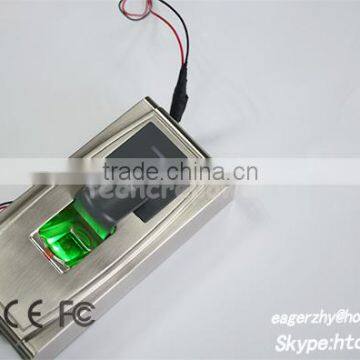

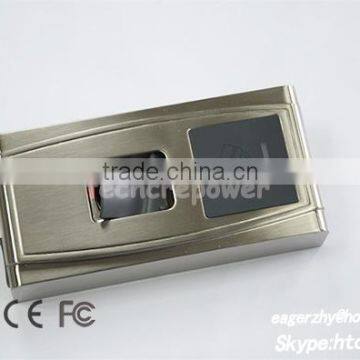

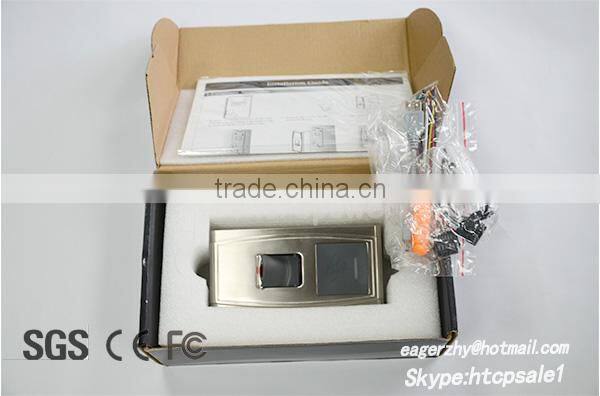

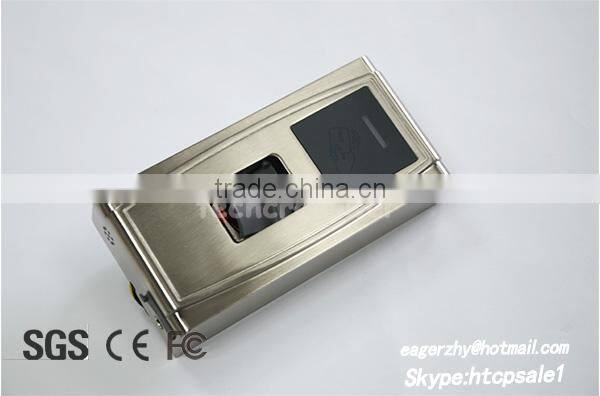

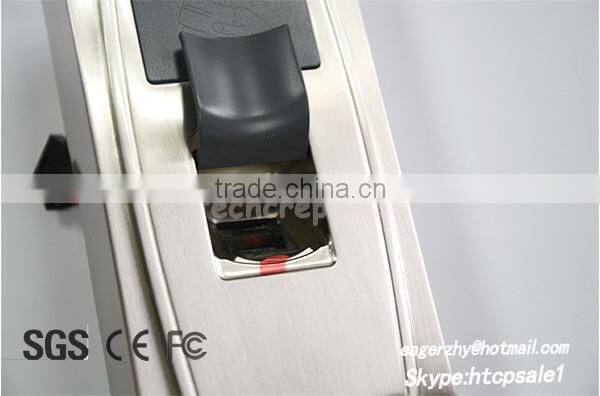

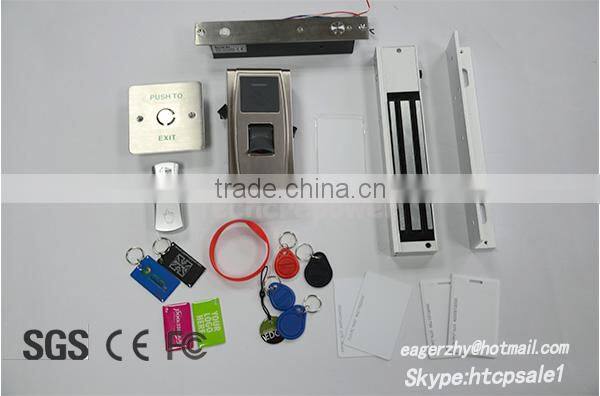

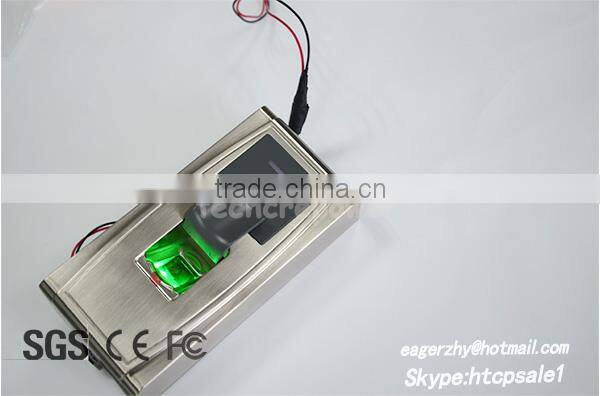

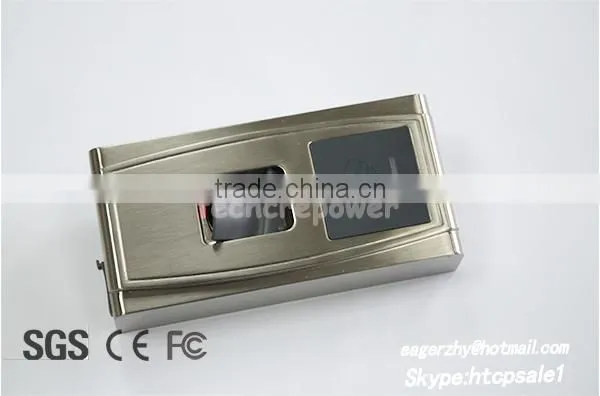

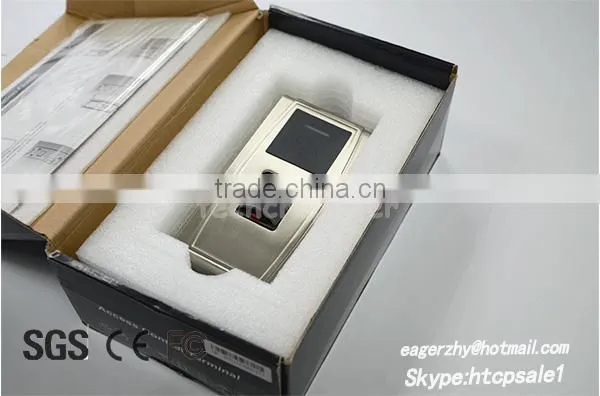

Product Photo
Product Certification
Our Factory
Our Advantage
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target
Provide cost-effective products and timely services with the concept of “one store purchasing”, realize win-to-win cooperation!
How to Pay
By T/T, paypal, westerm union, Moneygram, L/C.
How to Deliver
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
