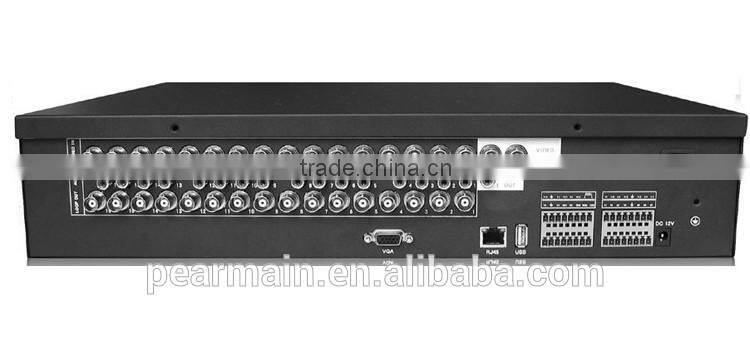

24ch/32ch CCTV DVR (8ch DI+16ch/24ch CIF) dvr h 264 standalone dvr

Model number

HEK15124

HEK15132

System

Operating system

Embedded LINUX

System resources

Pentaplex function:live,recording,playback,backup & remote access

Interface

Operating Interface

16-bit True Color human control system

16-bit True Color human control system

Screen display

1/4/8/9/16/24

1/4/8/9/16/24/32

Video

Video Standard

PAL(625 line, 50 f/s); NTSC(525 line, 60 f/s)

Monitoring quality

PAL, D1(704×576); NTSC, D1(704×480)

Playback quality

D1/HD1/CIF/QCIF

Encode

8ch D1+16ch CIF real time

8ch D1+24ch CIF real time

decode

8ch D1+8ch CIF real time

Video Input

Input video from local site:

8*D1+16*CIF

Local site+network input:

8 *D1+16* D1

/8*D1+8*720P

/8*D1+(2 *1080P+2* 720P)

/4 *D1+20*D1

/4*D1+2*1080P+10*D1

/4*D1+1*1080P+7*720P

/4*D1+(1*1080P+1*720P+10 *960H)

Video input from network:

24*D1

/4*1080P

/1*1080P+8*720P

/2*1080P+4*720P+4*960H

Input video from local site:

8*D1+24*CIF

Local site+network input:

8 *D1+16* D1

/8*D1+8*720P

/8*D1+(2 *1080P+2* 720P)

/4 *D1+20*D1

/4*D1+2*1080P+10*D1

/4*D1+1*1080P+7*720P

/4*D1+(1*1080P+1*720P+10 *960H)

Video input from network:

24*D1

/4*1080P

/1*1080P+8*720P

/2*1080P+4*720P+4*960H

Motion detection

It could set 192(16*12) detection zone, it could set multiplesesitivity degree. Only for local site.

Video Output

2BNC, 1 VGA,1ch HDMI

Audio

Compression standard

G711A

Audio Input

16ch

Audio Output

1ch

Voice Intercom

Support

Video recording and playback

Video mode

Manual>Alarm>Video Detection>Continuous

Local playback

1 to 16ch, on mode of 24*CIF, to support 16ch playback maximum (8*D1+8*CIF@25fps)

1 to 16ch, on mode of 32*CIF, to support 16ch playback maximum (8*D1+8*CIF@25fps)

Video Query

Time/Date, Alarm, Motion Detection & exact search ( accurate to second)

Storage and backup

Take up hard disk space

Space Occupation, CIF:5G/day·channel, D1:10G/day·channel

960H:9~42G/ day·channel ,720P:10G~42G/ day·channel  1080P:20G~80G/ day·channel ,Audio:691.2M/ day·channel

Video Save

Hard disk,U Card,HDD,DVR-RW, Network

Hard disk, SD Card, U Card,HDD,DVR-RW, Network (To prevail in kind)

Backup

U Card,HDD,DVR-RW,Network

SD Card,U Card,HDD,DVR-RW,Network (To prevail in kind)

Interface

Alarm Input

16ch

Alarm output

4ch

Network Interface

RJ45 10M/100M/1000M

PTZ Interface

1 RS485, 1 RS232, pelco etc. mutiple protocol

USB Interface

2 USB ports

HDD Interface

8 SATA port ( Maximum 8 x 3T SATA HDD )

Wireless port

3G,WIFI by USB

12V output

No

Other

Power supply

Built-in ATX power

Power

<15W (without hard disk)

<20W (without hard disk)

Operating Temperature

0℃-+55℃

Humidity

10%-90%

Dimensions

442*430*91mm

Weight

8.3kg(without hard disk)
