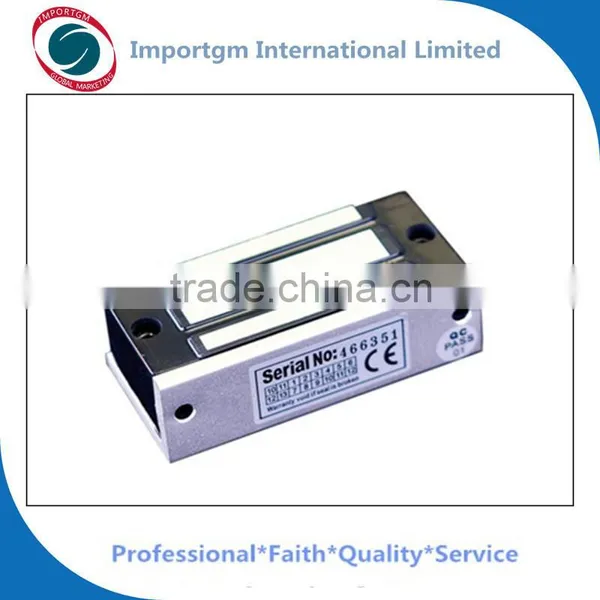

Magnetic Mini Lock with Signal Output IGM-70-S

Specifications

Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.

IGM-70-S is a mini single electric lock, it is designed for showcase, cabinet door and easy to install .Accessories are available for inward door, frameless glass door and narrow doorframe door.



Product Parameter	Parameter Description
Size	90Lx39Wx24.5H(mm)
Armature Plate Dimension	90Lx33Wx9.8H(mm)
Holding Force	70kg(140Lbs)
Input Voltage	12 or 24VDC
Current	12V/240mA or 24V/120mA
Suitable	File Cabinet ,Display Cabinet
Surface Temp	≤+20°C
Operating Temp	-10~+55°C(14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	0.7KG



Advantage



Collinear Load Test 70kg,140pounds.

MOV Provides Reverse Current Protection.

Anti-Residual Magneism Designed.

High Strength Material,Anodized Aluminum Housing.

Design with no Mechanical Bolt.

Increase the holding Force,Dual Insulative Hosing.

CE Certificate by European Union,MA Certificate by China Public Security Office.
