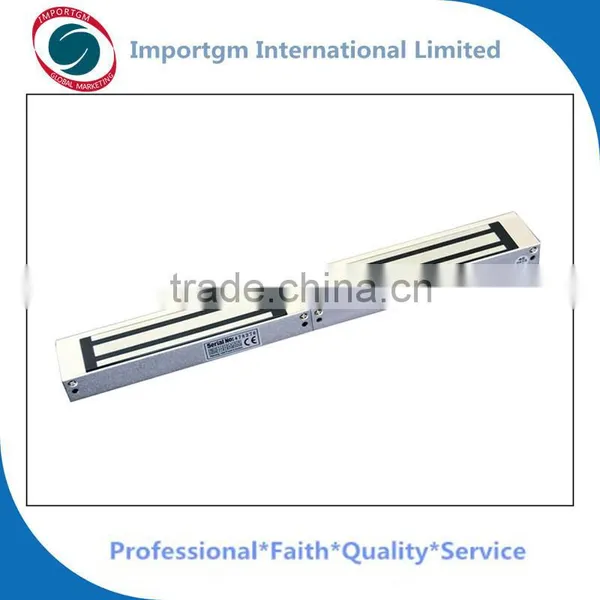

Single Door Magnetic Lock With Signal IGM-180-S
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
IGM
Model Number:
IGM-180-S
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Door Electric Lock IGM-180DNegotiableMOQ: 10 Sets -
Double Door Electric Lock With Signal IGM-180D-SNegotiableMOQ: 10 Sets
-
Single Door Magnetic Lock With Mortise Mount IGM-180MNegotiableMOQ: 10 Sets
-
Single Door Magnetic Lock With Signal IGM-180M-SNegotiableMOQ: 10 Sets
-
High Quality Single Door Magnetic Lock IGM-280NegotiableMOQ: 10 Sets
Place of Origin
China
Brand Name
IGM
Model Number
IGM-180-S
Specifications
Anti-Residual Magneism Designed.High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Single door electric lock is for glass door, wooden door, small size door, easy to install.
Accessories are available for inswing door,glass door, narrow doorframe door and so on. Special anti-residual magnetism designed makes the access control.
| Product Parameter | Parameter Description |
| Size | 183Lx41.4Wx20.5H(mm) |
| Armature Plate Dimension | 130Lx33Wx9.3H(mm) |
| Holding Force | 180kg(350Lbs) |
| Input Voltage | 12/24VDC+10% |
| Current | 12V/300mA 24V/150mA |
| Signal | 12/24VDC+10% |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20°C |
| Operating Temp | -10~+55°C(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 1.2KG |
Advantage
Collinear Load Test 180kg,350pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standad Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force,Dual Insulative Hosing.
CECertificate by European Union,MA Certificate by China Public Security Office.
