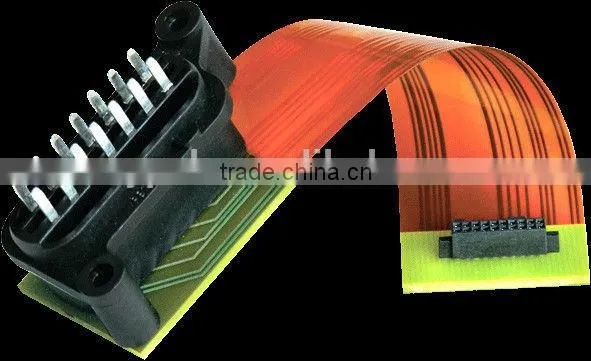

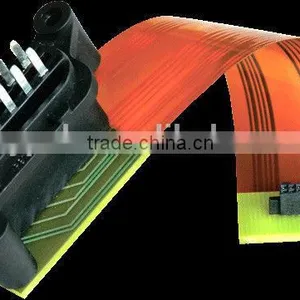

Help CenterDouble-sided Flexible PCB Board Gold Plating Finishing , 1OZ For LED
Related Products
-
ENIG High Frequency Multilayer PCB 10 Layer , 1 OZ Copper Thickness PCBUS$ 1 - 20MOQ: 1 Set -
China Pcb, Pcb Design Service--6L With 4oz Copper Thickness PCBUS$ 1 - 600MOQ: 1 Piece
-
Laser Cut Flexible Pcb With 1oz Copper ThicknessUS$ 1 - 50MOQ: 100 Pieces
-
China Professional PCB ManufacturerUS$ 1 - 20MOQ: 1 Piece
-
Rigid PCB Fabrication,pcb Manufacturer in ChinaUS$ 1 - 20MOQ: 1 Piece
Specifications
--Good quality material and color for your choose--Expert PCB & PCBA Manufacturer
--Provide OEM PCB, PCBA, copy service
Welcome to RayMing Technology(HK) CO.,Ltd.
Our Principle is simple, “Act by heart, Make the best.” Our strengthis distinct, “Years of experiences in PCB and PCBA field” Our Goal is achievable, “ To be the most reliable supplier of PCB and PCBA.” Our orientation is clear, “Focus on prototypes and low to medium volume business ”
Single-side,double-sided and multilayer PCB and PCB Assembly manufacturer/OEM
- Contract Manufacturing
- Mixed-technology (High speed SMT & Through hole assembly)
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Metal box,Coil,Cable and Wire Assemblies
- Plastics and Molds
Custom Single / Double-sided FPC Socket Connector Flexible PCB Board OSP ( Entek )
--Good quality material and color for your choose --Expert PCB & PCBA Manufacturer --Provide OEM PCB, PCBA, copy service --Components purchasing --Fast turn around
Specification:
| Types: | Single-sided, Double-sided, Multi-layers (max 6 layers) and Rigid-flexible PCB, Aluminium board |
| Surface Finishing: | HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek) |
| Base Material: | Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
| Copper Foil: | ED/RA |
| Min. Line Width: | 2 mil |
| Min. Line Spacing: | 2 mil |
| Min. Hole Size: | 0.2mm |
| Max. Board Size: | 800x400mm |
| Min. Board Thickness: | 0.1mm |
| Min. Solder Mask Thickness: | 10um |
| Solder Mask Types: | Green, yellow, black, white, blue, red and clear |
| Profiling: | Punching, Routing, V-cut |
| Soldering Thermal Resistance: | 300°C/10 seconds |
| Peeling Strength: | ≥1.4kg/cm |
| Surface Resistance: | 105mΩ |
| Insulation Resistance: | 105mΩ |
| Dielectric Strength: | 9.8x105v/cm |
| Flammability: | UL-94V-0 |
| Performance Test: | 100% electrical and electricity performance test |
PCB Assembly Technical Capability
We deliver high quality surface-mount technology (SMT) products through the use of modern, well maintained SMT lines that are operated by trained professionals. Our SMT lines are capable of handling both low and high volume through-put, can perform single and double sided component placement, mixture of SMT automatic and manual component assemblies, SMT and through-hole assemblies.
Capability 1.SMT with 4 million placements per day 2.Manual insertion with output 500,000pcs components per day 3.Chip mounting speed is 0.3S/unit,high-point speed is 0.16S/unit
Mount Precision: 1.Chips size:Min.0201 2.Mounting precision:0.1mm 3.Multi-functional machine can match 0.3 pitch packages such as BGA,CSP
Application
Products are applied to a wide range of High-tech industries such as: LED lighting,telecommunication, computer application, lighting, game machine, industrial control, power,automobile and high-end consumer electronics, ect.
By unremitting work and effort to the marketing, products exports to American,Canada, Europe counties,Africa and other Asia-pacific countries.
Quality Certificates
Lead free,ISO,UL,CE
