Specifications

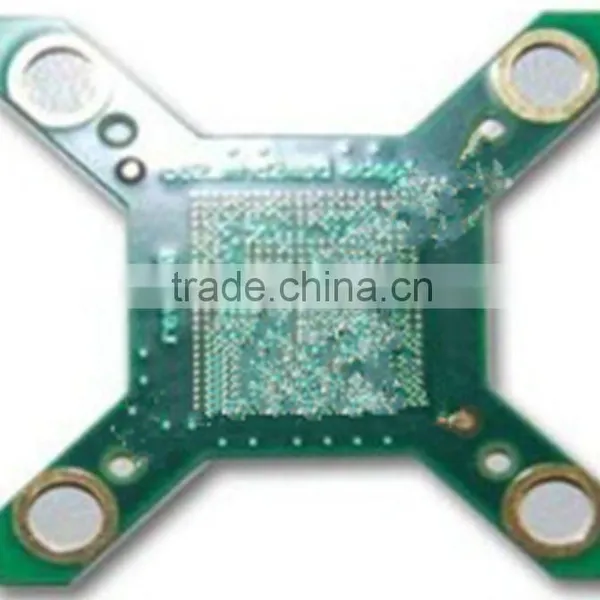

6-Layer 0.71MM thickness FR4 IT180 plug through hole +lasor blind hole 0.15MM Gild hard goldFR4 6Layer 0.71MM Thickness
6-Layer 0.71MM thickness FR4 IT180 plug through hole +lasor blind hole 0.15MM Gild hard gold
Basic electronic parameters:
1. Manufacturer: RayPCB
2. Original place: Shenzhen China
3. Board material: FR4
4. Adhesive: /
5. Board thickness: 0.71MM
6. Layer number: 6-Layer
7. Finishing copper size: 7OZ
8. Min line width / track: 0.3MM
9. Min line space / clearance: 0.3MM
10: Min hole / via diameter: 0.2MM
11: Via in plated pad over / VIPPO: No
12. Impedance control: YES
13. Coverlay: Green
14 Silkscreen: No
15. Surface treatment technology: Immersion Gold
16: Single size:280MM*280MM
Panel size: According to UR GERBER design requirements
17. More special requirements: Need YOUR confirmation
RayMing specializes in the PCB manufacturing of 6-Layer 0.71MM thickness FR4 IT180 plug through hole +lasor blind hole 0.15MM Gild hard gold.
Main business: single-sided; double-sided and multilayer printed circuit boards (up to 40Layer); and some high end boards. e.g. high-frequency circuit boards; HDI boards with Buried & Blind Via PCB; Flex PCB; Flex-Rigid PCB; Single-sided and Double-sided Aluminum boards with high Thermal conductivity.
Our products are widely use in power supplies, computers, comunications, optoelectronics, industrial instruments, engineer control, automobile and other consumer electronics.
Also, one-stop business of manufacturing PCB+PCB assembling+helping to purchase components, we'll serve for you.
We equipped with advance Processing Equipments and Measurement Techniques, such as: High Pecision CNC Drilling Machines, AOI Tester, German Flying Probe Testers and other advanced equipments, and High Frequency Board manufacturing, Special Impedance Control, Buried & Blind Via manufacturing, Flying Probe Test techniques.
Our customers mainly focus on North and South Americas; Europe; Australiasia; Russian and so on.
Any queries, just contact sales08 Nicole-----raypcb08(Skype)
