Non-corrosive silicone sealant For Mirror

Specifications

1, One component, Neutral Curing at room temperature;
2, fast curing, excellent adhesion to stainless steel, aluminum profile

1.    Characteristics:
 l   One component, RTV-1, Neutral Curing at room temperature silicone sealant;
 l   fast curing, excellent adhesion to stainless steel, aluminum alloy, glass and wood etc;

2.  Main Purpose:
 l   Seal and joint for various stainless steel windows and doors;
 l   Seal and joint for construction windows and doors such as aluminum alloy, glass, plastic steel etc;
 l   For indoor decoration and other industrial purpose.

3.  Main Technology Data:

Performance		Standard	Measured Value	Testing Method
Slumpability	Horizontal	Not change shape	Not change shape	GB/T 13477
	Vertical(mm)	≤3	0	GB/T 13477
Extrusion ml/min		≥80	300	GB/T 13477
Skin Time min		≤180	6	GB/T 13477
Hardness(HsA)		20-60	25	GB/T 531
Tensile Modulous (Mpa)		>0.4	0.5	ASTMC 792
Tensile proper		No damage	No damage	GB/T 13477
Movement Capability(%)		±20	±20	ASTMC 719
Aging Test		Passed	Passed	ASTMC 719
Storage		9 months shelf life if stored below 27°C in cool, dry places after the date of production














4. Application Standard:
 l  GB/T 14683-2003

5. Specification
 l  300ml/cartridge; 24cartridge/ctn
 l  240ml/cartridge; 25cartridge/ctn
 l  Aluminum,transparent, others of special order

6. Restriction of Usage:
 l  Not compatible with materials with grease or exudation;
 l  Unsuitable for the airproof location, because it is required to absorb moisture in air to cure;
 l  Unsuitable for the frosty or moist surface;
 l  Unsuitable for the continually flooding or entire-year moist places;
 l  Cannot be used on the substrate surface under 6°C or above 40°C

7. Technology Service
 l  We supply integrate data, technical consultation and free compatibility test.
 l  Solving problem in the course of using timely

8. Joint Design and Operation Procedure
 l  Please see “Operation Instruction to Girafe Silicone Structural Sealant ”

9. Safety
 l  Silicone sealant will release volatile compound so that it could be harm to health, therefore, please keep good and ventilate;
 l  Silicone sealant will not release any harmful substance and anything harm to health after cured;
 l  Keep uncured silicone sealant beyond children’s reach. If getting into eyes, wash off with running water and consult a doctor;

10. Warranty
 l  As an ISO9001,ISO14001 certified company, we are committed to establish and implement the ISO9001 Quality Management System.
 l  We will sign the Quality Guarantee with customers after they buy our products and confirm the construction organization and engineering.

11. Maintenance
 l  Generally there is no need to repair. If the seal joint is damaged, please remove the damaged silicone sealant, clean the surface of substrates, and fill up with silicone sealant.
 l  Girafe silicone sealants have good adhesion to cured sealant.

12. Purchase Channel and Price
 l  Users can buy Girafe silicone sealant from Guangdong Girafe Fine Chemical Co.,Ltd and appointed regional agents to ensure the quality and realness

13.Estimated Amount of Use: Please see following form of estimated amount of various joints:
 l  The length of Girafe 978 Neutral Structural Transparent Sealant 300ml can be extruded during application.

Specification	Width (6 mm)	Width (9 mm)	Width (12mm)	Width (15mm)	Width (18mm)	Width (21mm)	Width (24mm)
Thickness (6mm)	Length (8.3m)	Length (5.5m)	Length (4.2m)	Length (3.3m)	Length (2.8m)	Length (2.4m)	Length (2.1m)
Thickness (9mm)		Length (3.7m)	Length (2.8m)	Length (2.2m)	Length (1.8m)	Length (1.6m)	Length (1.4m)
Thickness (12mm)			Length (2.1m)	Length (1.7m)	Length (1.4m)	Length (1.2m)	Length (1.0m)


Note: The actual amount of use may be different due to the joint design, installation position of pad material, repairing skill and wastage in application.

Attention:
Information published in this instruction is correct. However, by no means can it be considered an absolute guarantee, as usage and application of the product in accordance with the instruction given and success in application is beyond our control and is depend on many factors. Customers should have a good knowledge of product and make independent judgments of optimal usage before application.

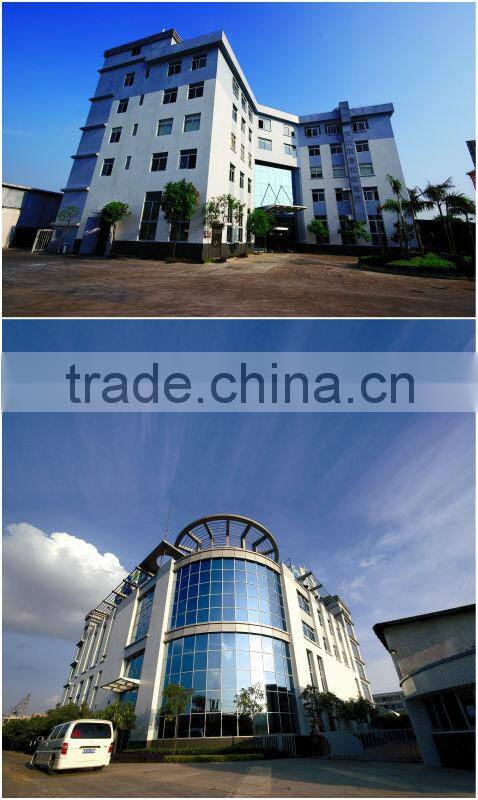

OFFICE BUILDING

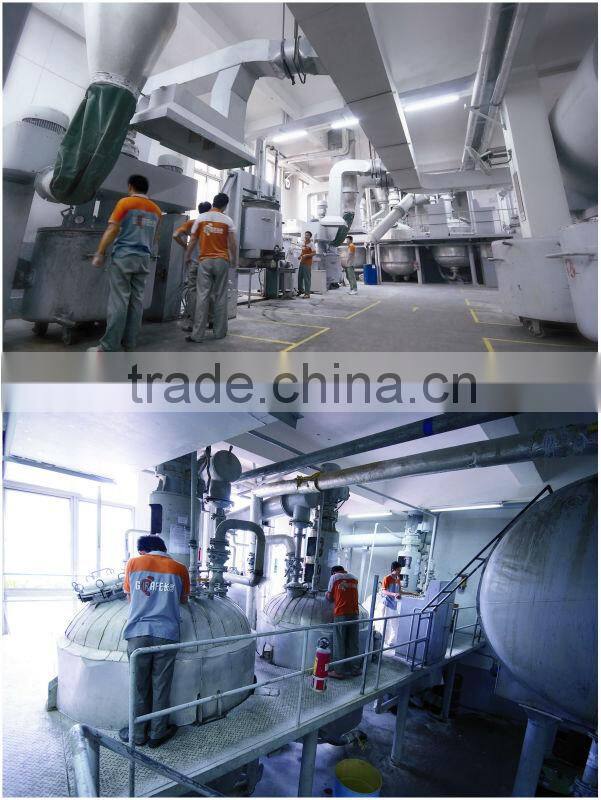

PRODUCING LINE

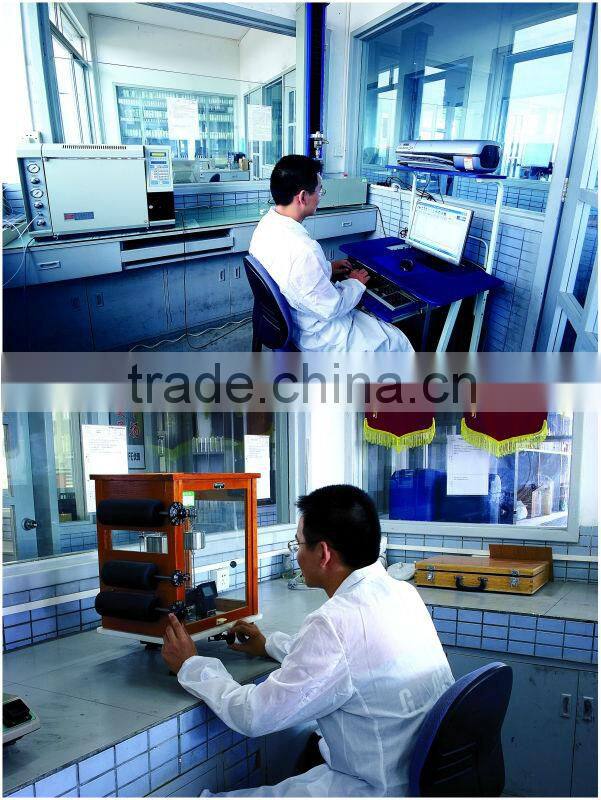

TEST CENTER

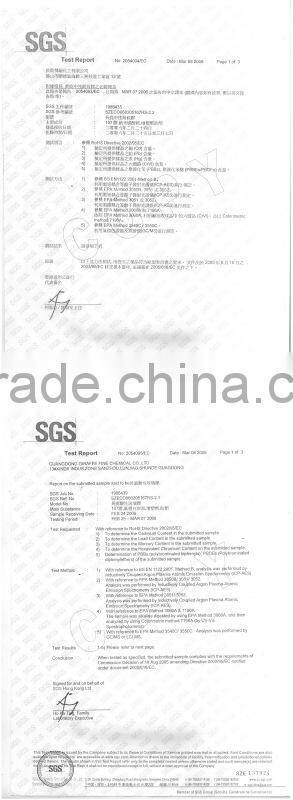

TEST REPORT

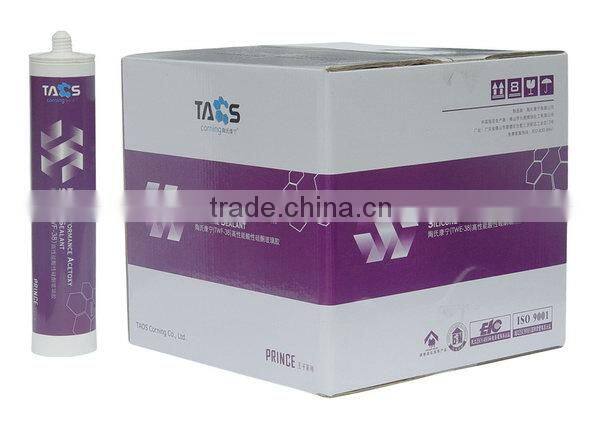

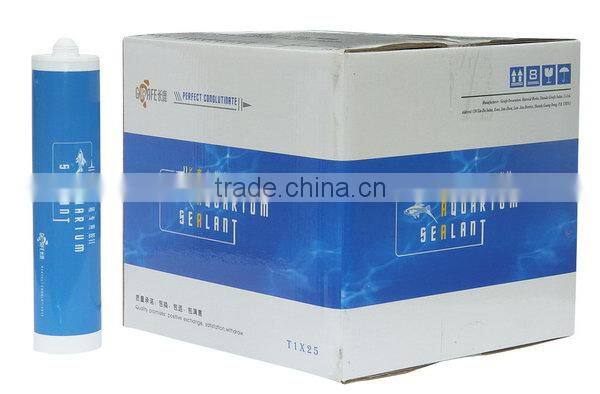

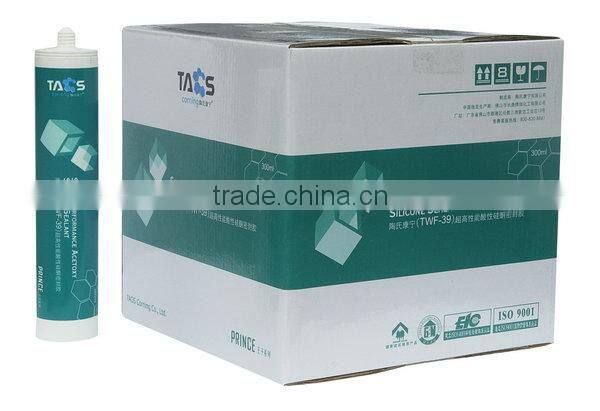

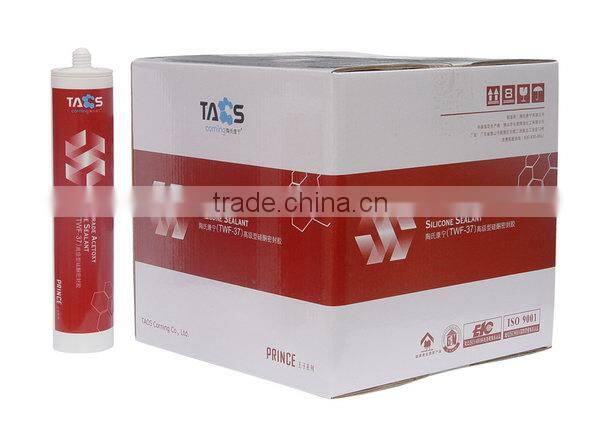

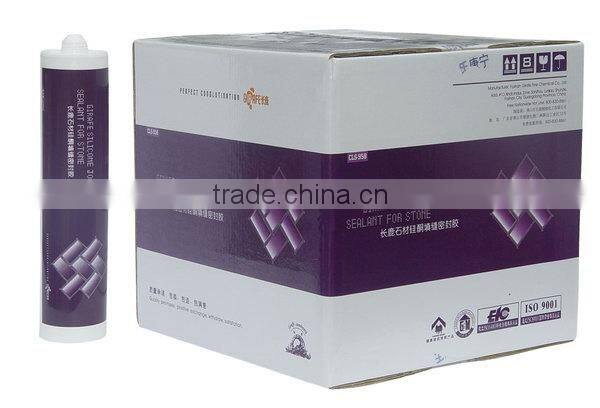

PACKAGE WAY
