Zinc Alloy ANSI 5 Mortise RFID Hotel Lock

Shenzhen Importgm Technology Co., Ltd.
Zinc Alloy ANSI 5 Mortise RFID Hotel Lock thumbnail-1
Zinc Alloy ANSI 5 Mortise RFID Hotel Lock thumbnail-2
Zinc Alloy ANSI 5 Mortise RFID Hotel Lock photo-1
Zinc Alloy ANSI 5 Mortise RFID Hotel Lock photo-2
US$ 22.9 - 59.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Techcrepower
Model Number:
L622-M (Silver) Hotel Key Card Lock
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Techcrepower
Model Number L622-M (Silver) Hotel Key Card Lock
Product Description



Specifications:



Zinc Alloy ANSI Mortise Hotel Key Card Lock

1. Material: Zinc-alloy

2. Color: Silver/Golden

3. ANSI 5 Latch

4. Reasonable Price and high quality





  Zinc Alloy ANSI 5 Mortise RFID Hotel Lock



We are professional in Hotel Door Lock System, and we can provide various Hotel Door Lock, such as MF1 Card Hotel Door Lock, TCP/IP Network Hotel Door Lock, Wireless Hotel Door Lock, Fingerprint Hotel Door Lock, Digital Hotel Door Lock, Temic Card Hotel Door Lock and so on.





Introduction:



L622-M is Zinc-alloy made with surface plating plus PVD treatment for hotel lock management system.





Features:

  1. Zinc-alloy with surface plating with golden edge plus PVD treatment (Silver).
  2. RFID M1® technology, 100,000 times write life for keycard, contactless reading keycard.
  3. ANSI mortise.
  4. Free-engage while locking.
  5. Powered by AA battery, easy replace new.
  6. Openings 20,000 times for one new battery pack.
  7. Audit trail records the latest 800 lock transactions.
  8. Low Battery Voltage warning (beep and red light).
  9. Passage mode activate by passage card for meeting case.
  10. Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light.
  11. Panic release function: the deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens.
  12. 40mm-50mm thickness door.
  13. Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.



Mortise Hotel Key Card Lock Spec:

Power

LR6 (AA)battery x 4pcs
Low power alarm voltage4.8V
Communication  13.56MHz RFID (with keycard)/infrared (with Handheld)
Card supportMF1® S50 plus S70
Working Distance45mm Max
Working Temperature0-60°C
Working Humidity15~85%RH
Static current< 30uA
Working current< 150mA
Memory800 Transactions include Time/Date/Card ID/Card type/Room ID
Gross Weight3.1KG
Package10pcs/Carton at 74.0X42.0X32.0CM
ContentFront/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike (no battery included, no card)





Product Picture

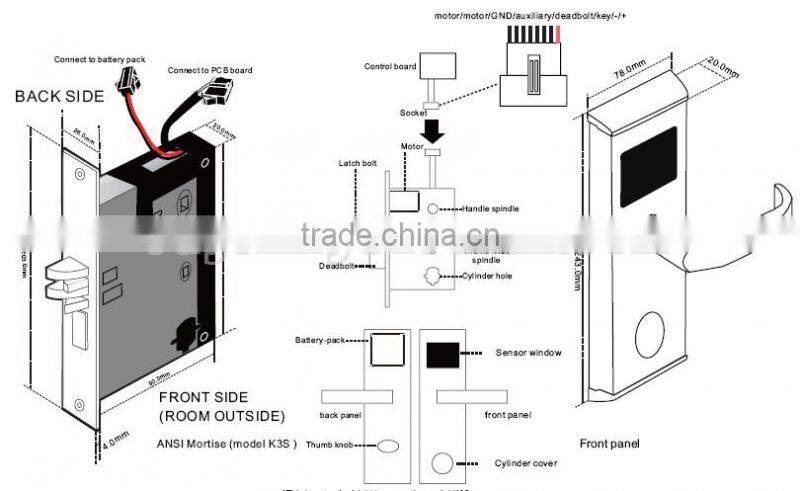

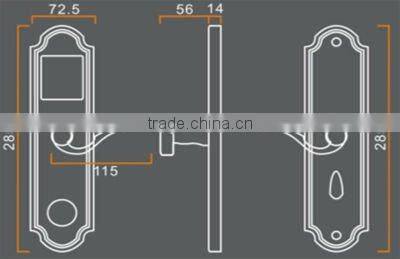

Dimension

Zinc Alloy ANSI 5 Mortise RFID Hotel Lock

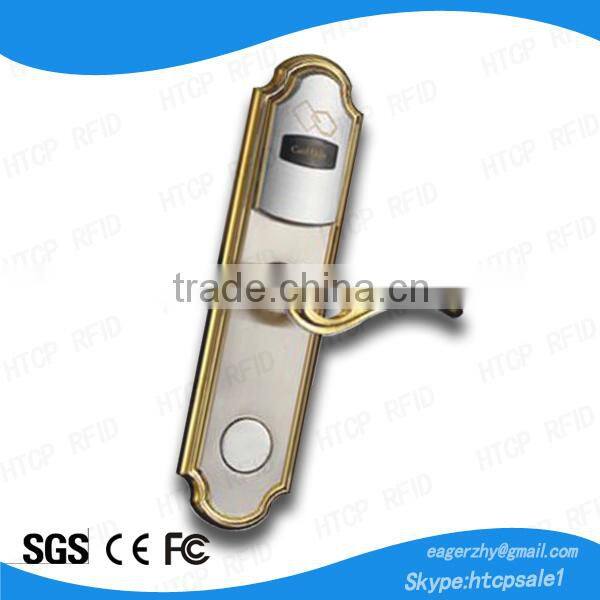

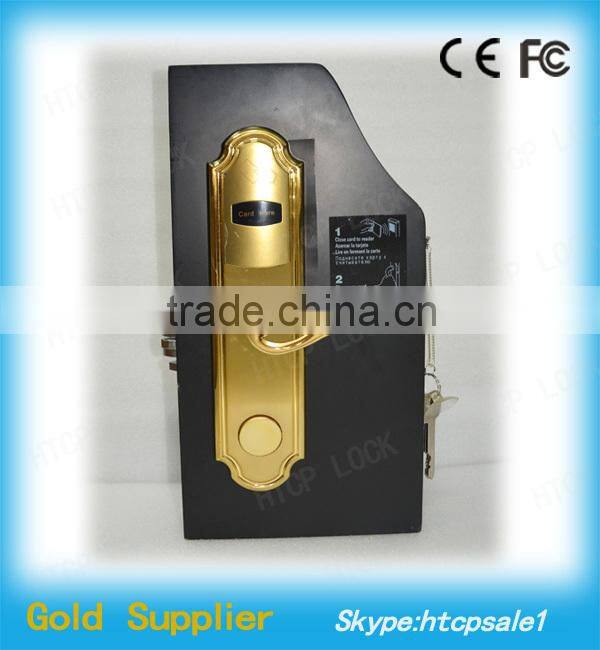

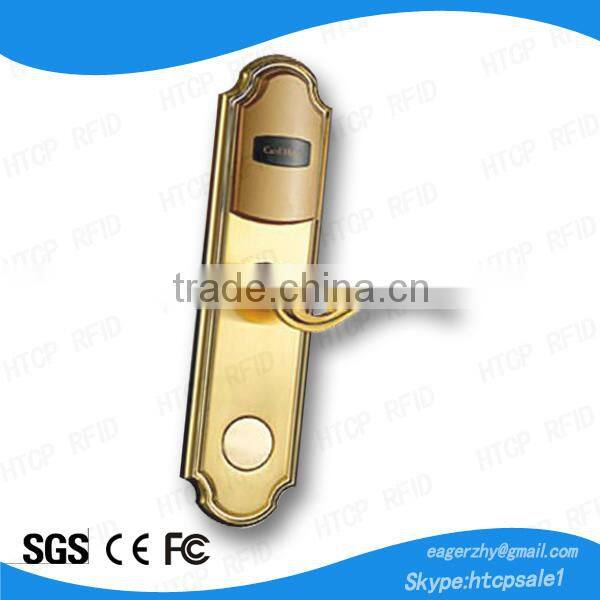

Product Photo
Zinc Alloy ANSI 5 Mortise RFID Hotel Lock

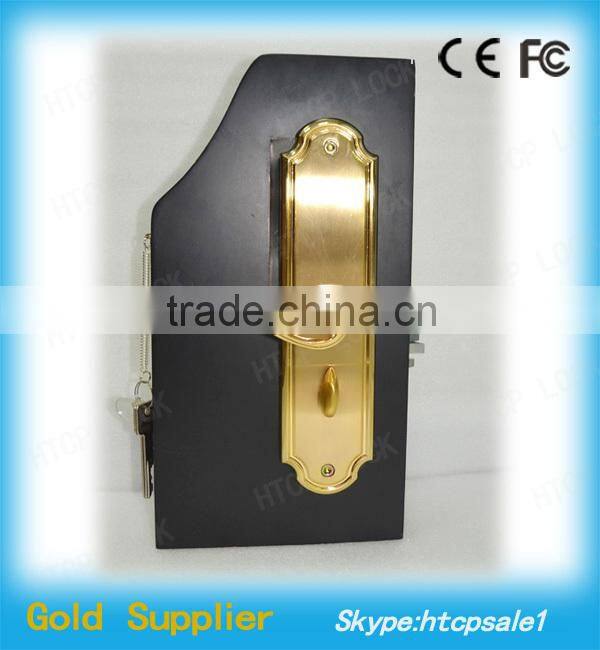

Lock Moritse (ANSI-5 Latch) Optional European Mortise for thin door

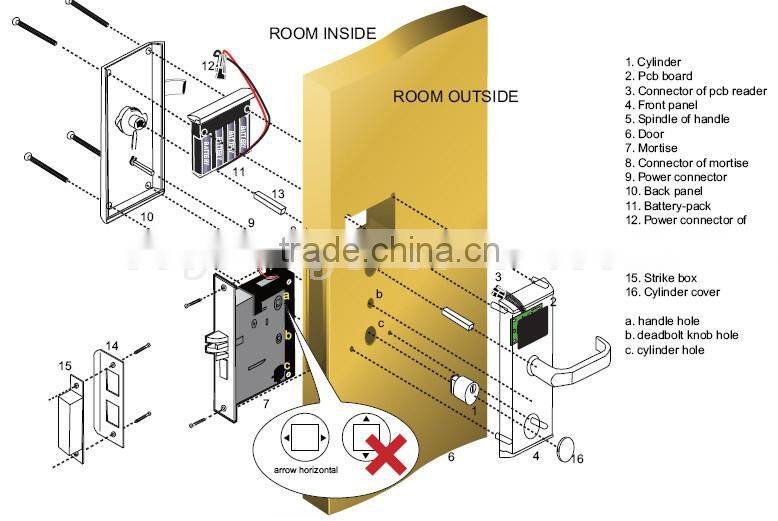

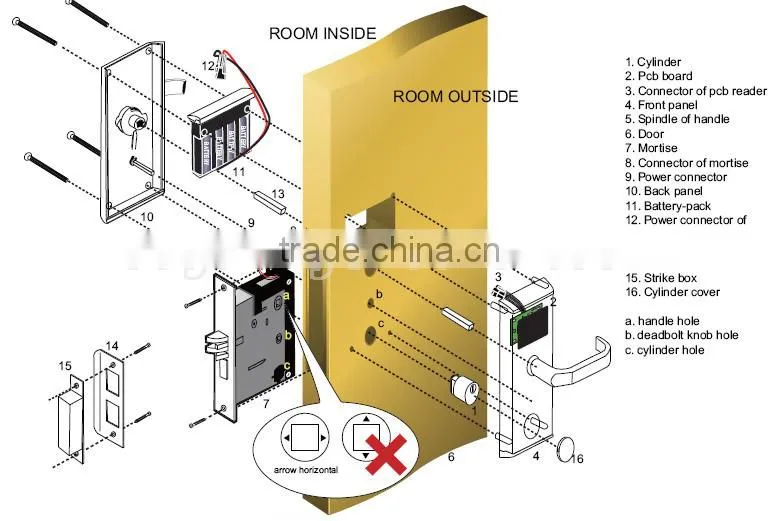

Lock Installation Diagram:


Packaging & Shipping



Package:






Hotel Case:

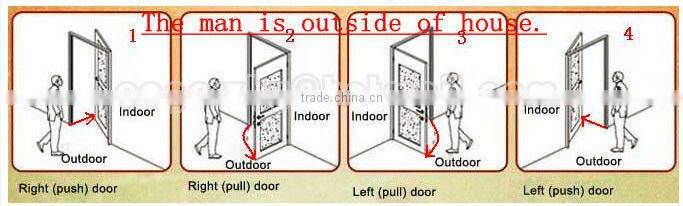

Door Lock Handle Direction:



Company Information



Product Certification

Zinc Alloy ANSI 5 Mortise RFID Hotel Lock

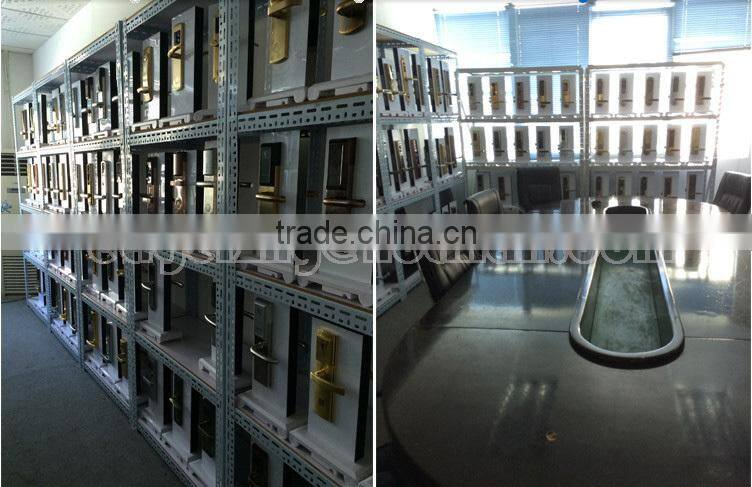

Our Factory

Zinc Alloy ANSI 5 Mortise RFID Hotel Lock

FAQ



Our Advantage

1. Professional R&D department, can offer you OEM/ODM services;

2. Professional technique supports and good service;

3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.

Products are conducted aging test for 72 hours.

4. Our products are chosen high quality materials and ensure the prophase stability.

5. Our products meet ISO, CE, FCC, RoHS certificates;



Our Target

Provide cost-effective products and timely services with the concept of “one store purchasing”, realize win-to-win cooperation!



How to Pay

By T/T, paypal, westerm union, Moneygram, L/C.



How to Deliver

1.  Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days.
2.  Cheap way (small package): By China post, take about 15-70 days.
3.  Cheap way: By Air or by Sea shipment for heavy and big goods.



The Warranty

We provide 1~2 years warranty from the date of delivery but lifetime technical support.
