Specifications:
Stainless Steel Mortise Rfid door lock
1. Material: Stainless steel
2. Color: Silver/Golden
3. ANSI 5 Latch
4. Reasonable Price and high quality
RFID Card Stainless Steel Panel Hotel Room Door Lock
We are professional in Hotel Door Locks, and we can provide various Hotel Door Lock, such as MF1 Card Hotel Door Lock, TCP/IP Network Hotel Door Lock, Wireless Hotel Door Lock...... Stainless Steel ANSI Mortise MF1 Card Electronic Hotel Door Lock in Locks
Introduction:
L518-M is Stainless steel with surface treatment Plating for hotel lock management system.
Features:
- Stainless steel with surface treatment Plating.
- RFID M1® technology, 100,000 times write life for keycard, contactless reading keycard
- ANSI mortise
- Free-engage while locking.
- Powered by AA battery, easy replace new
- Openings 20,000 times for one new battery pack
- Audit trail records the latest 800 lock transactions.
- Low Battery Voltage warning (beep and red light).
- Passage mode activate by passage card for meeting case.
- Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light.
- Panic release function: the deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens.
- 40mm-50mm thickness door.
- Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
RFID Card Lock Spec:
Power |
LR6 (AA)battery x 4pcs |
| Low power alarm voltage | 4.8V |
| Communication | 13.56MHz RFID (with keycard)/infrared (with Handheld). |
| Card support | MF1® S50 plus S70 |
| Working Distance | 45mm Max |
| Working Temperature | 0-60°C |
| Working Humidity | 15~85%RH |
| Static current | < 30uA |
| Working current | < 150mA |
| Memory | 800 Transactions include Time/Date/Card ID/Card type/Room ID |
| Gross Weight | 3.1KG |
| Package | 10pcs/Carton at 74.0X42.0X32.0CM |
| Content | Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike (no battery included, no card) |

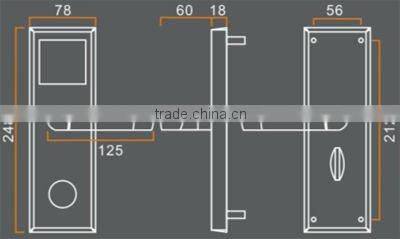

Dimension

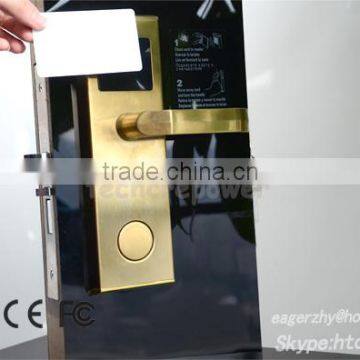

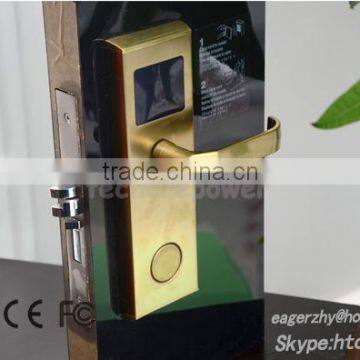

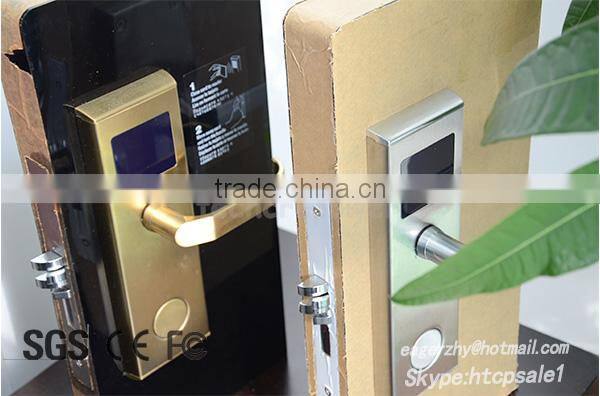

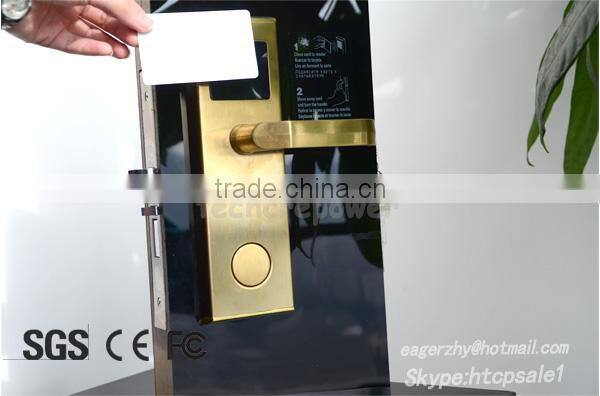

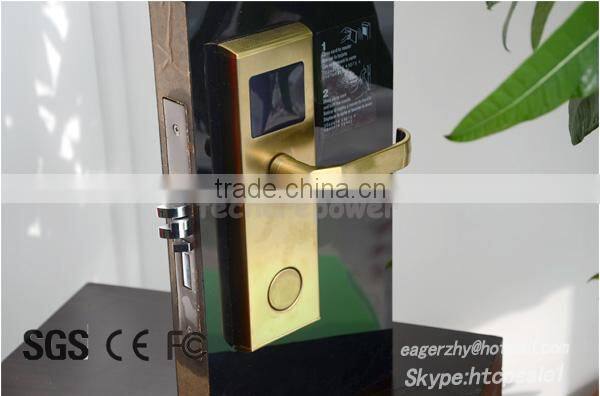

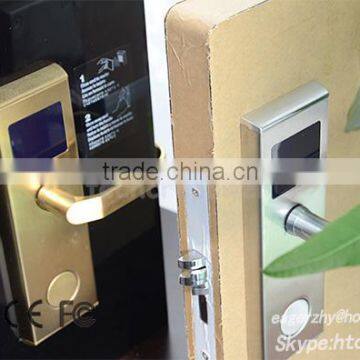

Product Photo

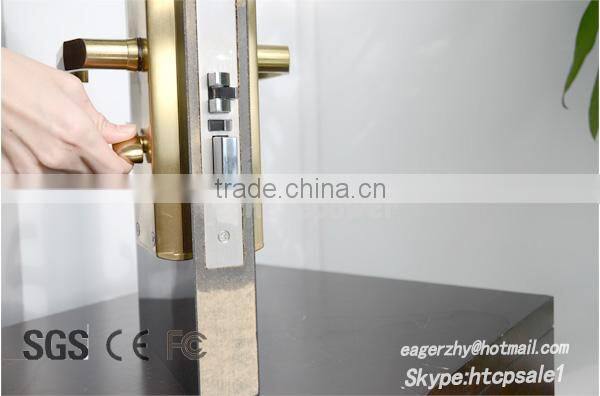

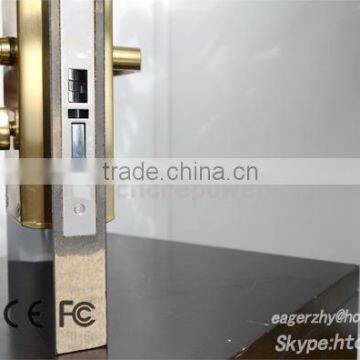

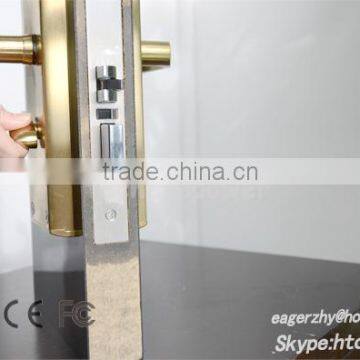

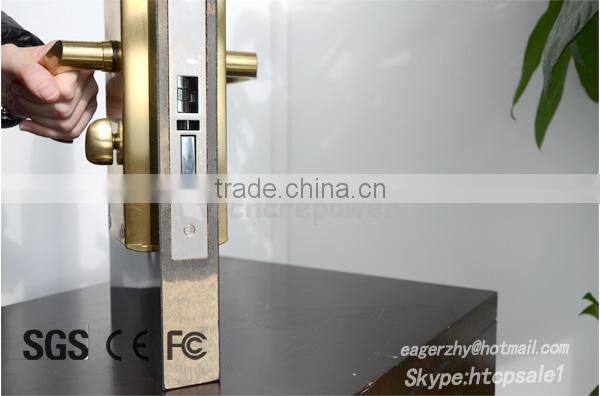

Lock Moritse (ANSI-5 Latch) Optional European Mortise for thin door
Lock Installation Diagram:
Package:

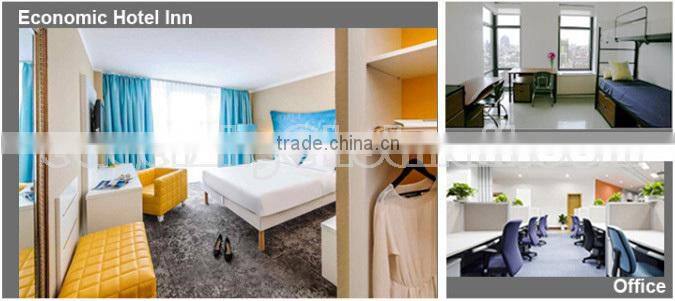

Hotel Case:
Door Lock Handle Direction:
Product Certification
Our Factory
Our Advantage
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target
Provide cost-effective products and timely services with the concept of “one store purchasing”, realize win-to-win cooperation!
How to Pay
By T/T, paypal, westerm union, Moneygram, L/C.
How to Deliver
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days.
2. Cheap way (small package): By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty
1~2 years warranty from the date of delivery, A lifetime technical support
