Type Video Conference System
Place of Origin Guangdong, China
Brand Name Cisco
Model Number CTS-SX10-K9

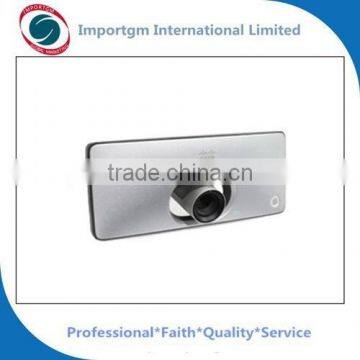

CISCO SX10 HD w/ int 5x Cam and mic CTS-SX10-K9



Video-Enable Your Small Collaboration Spaces



The Cisco TelePresence® SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with telepresence. With the SX10, you can extend telepresence pervasively throughout your enterprise.



This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while a leadership wide-angle field of view provides the best overview even in small spaces.



High quality, simplicity, and affordability come together in the SX10 Quick Set to create a practical and powerful business class solution for video ubiquity (Figures 1 through 3).

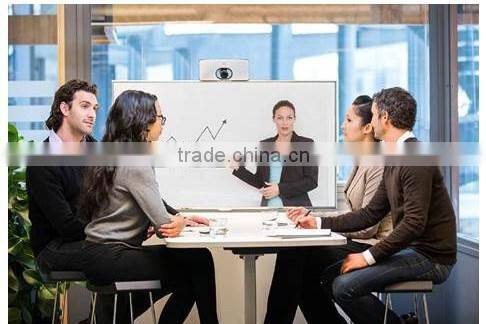

Figure 1.      Cisco TelePresence SX10 in a Project Room Environment

CISCO SX10 HD w/ int 5x Cam and mic CTS-SX10-K9

Figure 2.      Cisco TelePresence SX10 Quick Set Mounted with Remote Control

CISCO SX10 HD w/ int 5x Cam and mic CTS-SX10-K9



Features

The primary features of the Cisco TelePresence SX10 follow:

  Optimal definition up to 1080p30 with content sharing at WXGAp5
 Wide-angle 83° horizontal FOV with 5x zoom
  Supports Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from laptops (Macs and PCs)*
  Ready-to-use unit with Power over Ethernet (PoE)
  Integrated microphone
  Energy efficient with low consumption (EU Class B)
  Registers with Cisco® Unified Communications Manager (UCM) and Cisco TelePresence Video Communication Server (VCS)
* Requires Collaboration Endpoint Software 8.0 or later
Figure 3.      Cisco TelePresence SX10 Wall-Mount Solution
CISCO SX10 HD w/ int 5x Cam and mic CTS-SX10-K9


Product Specifications

Table 1 lists the specifications of Cisco TelePresence SX10 Quick Set and Table 2 lists its capabilities.

Table 1.       Cisco TelePresence SX10 Quick Set Specifications

Specification

Description

Software compatibility

Cisco TelePresence Software Version TC 7.1 or later

Cisco Collaboration Endpoint Software Version 8.0 or later

Product delivered with
  SX10 Codec with integrated HD camera and microphone
  Wall mount
  TRC6 remote control
  Network and HDMI cables

Integrated HD camera
 5x zoom (2.65 optical and digital zoom)
  +5°/-25° tilt, +/-30° pan
 51.5° vertical field of view
  83° horizontal field of view
  F-value from 2.1
  1920 x 1080 pixels progressive @ 30 fps
  Automatic or manual focus, brightness, and white balance
  Far-end camera control
  Automatic flipping of picture when upside down

User interface

TRC6 remote control and on-screen Graphical User Interface

Language support

English

System management
  Total management using embedded Telnet, SSH, XML, and SOAP
  Remote software upload using web server, secure copy (SCP), HTTP, and HTTPS
  Remote control and on-screen menu system

Directory services
  Support for local directories (My Contacts)
  Corporate directory (through Cisco UCM and Cisco TelePresence Management Suite [TMS])
  Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
  Call History with received, placed, and missed calls with date and time

Power
  PoE enabled
  Auto-sensing power supply
  100 - 240 VAC, 50/60 Hz
  Maximum 12 watts in normal operation

Operating temperature and humidity
  0° to 40°C (32° to 95°F) at Relative Humidity 10% - 90% (noncondensing)

Storage and transport temperature
 -20° to 60°C (60° to 140°F) at Relative Humidity 10% - 90% (noncondensing)

SX10 codec dimensions
  Width: 10.8 inches (27.5 cm)
 Height: 4.6 inches (11.7 cm)
  Depth: 3.6 inches (9.1 cm) (with max tilt downward on camera)
  Weight: 2.0 pounds (0.9 kg)

Approvals and compliance
  Directive 2006/95/EC (Low-Voltage Directive) - Standard IEC/EN 60950-1
  Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class B - Standard EN 55024 - Standard EN 61000-3-2/-3-3
  Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
  Complies with FCC CFR 47 Part 15 Class A
