Sensor Beam( Three Beams) AD-218F
Overall Characteristic
• Adopt microcomputer control technology, high integration and stability.
• International optical lens design with good focus quality, controlled angle is rational, easy to be installed.
• Far transmit distance with strong, anti-interference ability.
• Adopting receiving filter, decoding, amplification system of German technology. Effective solution to anti-interference of natural daylight.
• Emission electric eye adopts low-power consumption design with far transmit distance.
• With AC/DC 12-30V Power input.
Technical Parameter
| Power supply | AC/DC12-36V |
| Quiescent current | 35mA (12V) |
| Action Current | 72mA (12V) |
| Maximum working distance | 10m |
| NO/NC | Selected |
| Transmit Cable | (Blue) 5.5m |
| Receive Cable | (Black)5.5m |
| Beams | single, two or three beams selected |
| Working temperature | -42°C to 45°C |
| Working humidity | 10-90%RH |
| Dimension of Controller | 123(L)*50(W)*32(H)mm |
| Dimension of eye | 19(L)*13(D)mm |
| Total Weight(one beam) | 235g |

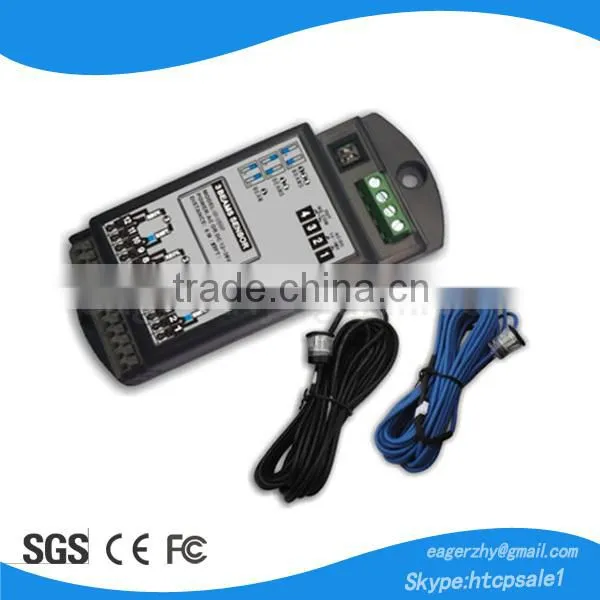

Product Photo
Product Certification
Our Factory
Our Advantage
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, ROHS certificates;
The MOQ
We accpet sample and bulk order, usually has No specific request. PLS contact our sales for details.
Payment Method
We accept Bank T/T, Paypal, Westerm Union, moneygram and Escrow.
Shipping Method
1. By Express courier, such as: DHL, Fedex, UPS, TNT, EMS... take about 3-7 days.
2. By Air or Sea shipment for heavy and big goods, take longer time differently.
3. By China post for small package, take about 15-70 days.
Product Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
